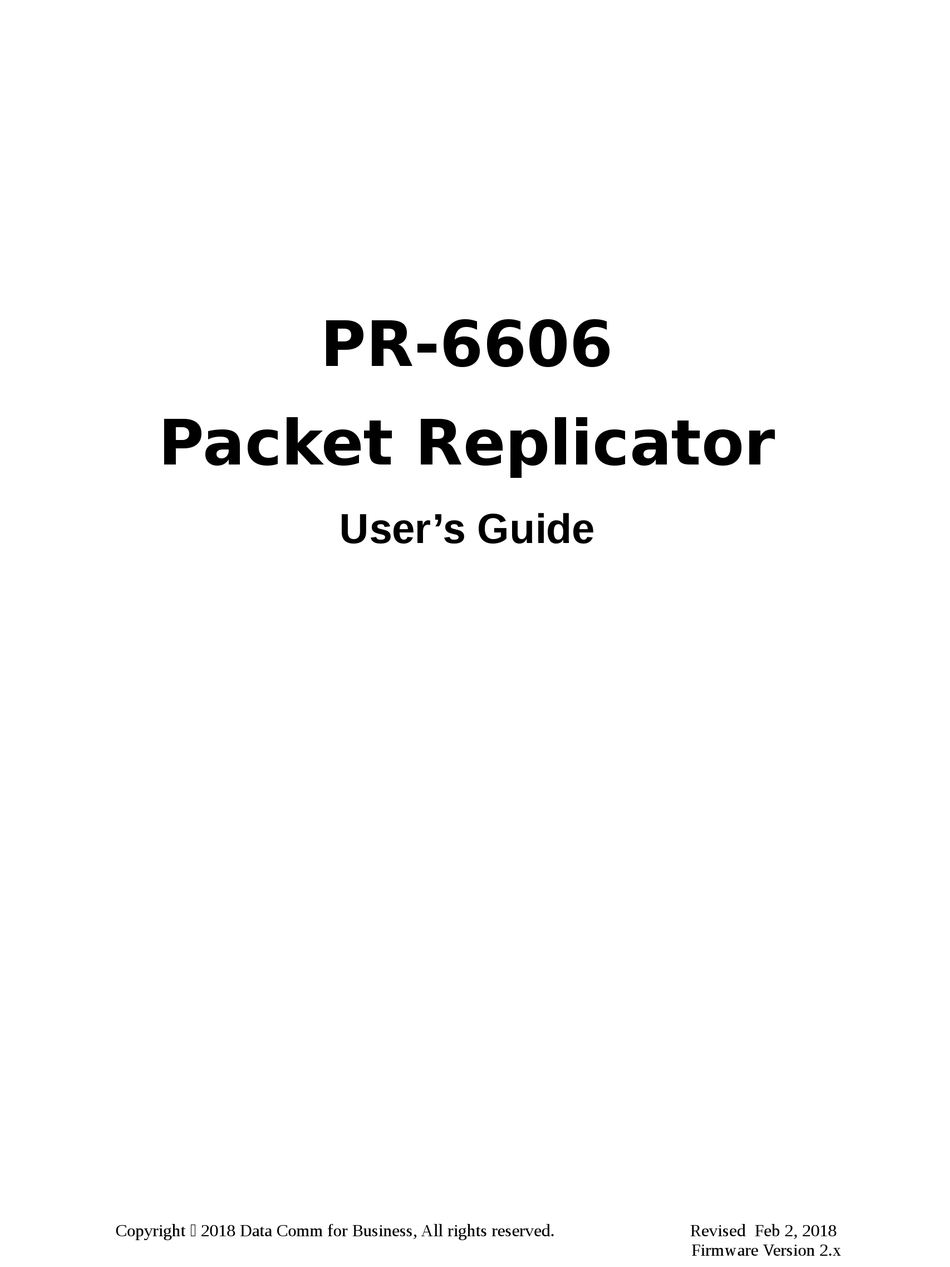

PR-6606
Packet Replicator
User's Guide
Copyright  2018 Data Comm for Business, All rights reserved.
Revised Feb 2, 2018
Firmware Version 2.x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-6606 and is the answer not in the manual?

Questions and answers

Related Manuals for DCB PR-6606

Summary of Contents for DCB PR-6606

  • Page 1 PR-6606 Packet Replicator User’s Guide Copyright  2018 Data Comm for Business, All rights reserved. Revised Feb 2, 2018 Firmware Version 2.x...

  • Page 2: Certifications

    Certifications FCC Statement This device complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. his equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS Certifications...............i FCC Statement............i RoHS...............i Chapter 1 Introduction..............4 PR-6606 Applications..........4 Features................5 Other Protocols............5 DHCP Protocol............5 Extensive Packet Selection Rules......5 Upgradeable Firmware..........5 Security Features............5 On-board Tools............5 Installation Location..........5 Package Contents............5 Software Requirements..........6 PR-6606 Hardware............7 Introduction............7 Configuration ............7 Rear Panel LED Indicators ........7 Rear Panel USB Connectors........7...
  • Page 4 Saved Configuration Files........14 Chapter 4 Configuration..............15 Overview..............15 Administration.............15 Admin Password............16 Fields...............16 Notes................17 Admin Access Control..........17 Fields...............17 Notes................18 Set Clock..............19 Fields...............19 Notes................19 Set Name..............20 Fields...............20 Notes................20 Set All Defaults............21 Configuration File............22 Fields...............22 Notes................22 Firmware Upgrade............23 Fields...............23 Notes................23 System Reboot.............24 Fields...............24 Notes................24 Version Information Screen..........25 LAN IP Configuration..........26 Fields ..............26...
  • Page 5 Hardware Problems............43 Can't Connect via the LAN...........43 Other Problems............44 Appendix A Specifications..............45 PR-6606 Packet Replicator Specifications....45 Cables................45 PR-6606 to hub or ethernet switch.....45 PR-6606 to PC crossover ethernet cable....45 Appendix B Open Source Software Information......46 Introduction............46 Obtaining the Source Code........46...

  • Page 6: Chapter 1 Introduction

    IP address. The PR-6606 duplicates some or all of the UDP packets passing through it. The original packet is passed unchanged; if selected for duplication, it is duplicated and the duplicates sent to configured addresses.

  • Page 7: Features

    Installation Location To insure the PR-6606 will replicate the desired packets, the PR-6606 must be inserted in the network path between the original packet's source and original packet's destination. Furthermore, to prevent MAC table corruption in any layer-2 switches, the destination of a replicated packet must also reside on a different LAN port from the original source.

  • Page 8: Software Requirements

    Ethernet ports, similarly to a switch. The initial IP address may be entered using any terminal or terminal emulation software on a PC, or the default may be used if appropriate for your network. Any standard web browser may be used for configuration once the PR-6606 is configured with a valid IP address.

  • Page 9: Pr-6606 Hardware

    Configuration PR-6606 Hardware Introduction The PR-6606 three Ethernet ports and two USB ports. There is also a RS-232 serial port used for initial IP address configuration (if needed). Configuration This model contains a serial interface to be used in initial setup (if needed). IF the default IP address is not appropriate for your LAN, connect a terminal to the serial port following the instructions in the configuration section.

  • Page 10: Chapter 2 Installation

    192.168.0.1 is appropriate for your local network, then plug it in and simply direct your web browser to the PR-6606 (using https if you've configured it to use https, otherwise use http:) without using a proxy and continue with configuration. If this address is not appropriate for your network, the IP address must be configured using the initial terminal method below.
  • Page 11 “Y”, otherwise answer “N”. -------- PR-6606 Setup Program -------- Welcome to Setup. This setup will establish the PR-6606 in a known state so that you can configure it via a Web Browser.

  • Page 12: Connect The Ethernet Cable

    2. Connect the Ethernet Cable Connect a LAN cable from your hub or switch to a LAN port. Reboot with a power cycle. The PR-6606 will now be available to any web browser on the same LAN segment. If your web browser does not see it, verify that you do not have a proxy server configured in the browser and are using https instead of http for a secure connection IF you've already changed the unit to HTTPS.

  • Page 13: Enter Configuration Values

    Correct IP address configuration, includes either DHCP or IP address, Gateway, and Netmask. At least one packet replication selection rule. At least one destination detail screen for the packet replication rule Configure these items using the LAN Configuration and Replication Rule screens and the PR-6606 is ready for use.

  • Page 14: The Configuration Process

    Using the Configuration Flexibility When the PR-6606 starts from a power-off condition, it loads an active configuration from its non-volatile memory. This active configuration is also copied to the working memory and is the “pending”...

  • Page 15: Configuration Process Examples

    If the PC is in the default IP address range of the new hardware (192.168.0.x subnet), then a new, out-of-the-box unit is easily configured using this method. Start the hardware on the LAN, transfer a stored configuration file from the PC, and store it. When restarted, the PR-6606 will have the proper configuration.

  • Page 16: Chapter 4 Configuration

    PR-6606 Overview The PR-6606 is configured using forms displayed on a web browser. In this chapter, we illustrate all entry forms, and describe their use. All configuration screens are accessed from the main index screen shown below. They are divided into sections with only one layer of screens below the top level.

  • Page 17: Admin Password

    Configuration Admin Password Admin Password Screen Access to the configuration web server is protected by HTTP Basic Authentication and may use a secure web server. This is a simple methodology where the Web Server will require a Web Browser to provide a username and password for each page requested.

  • Page 18: Notes

    Notes If you forget your username or password, you can use the Serial Port Setup to erase the current  settings and return the unit to factory defaults. Admin Access Control Administrative Access Control Screen Access Control allows you to place further restrictions on access to the internal web server. Fields Web Server Port ...

  • Page 19: Notes

    Configuration for one of its IP addresses. It has no effect on the passing of ping request and responses from other network nodes through it's bridged interfaces. Accepted Web IP Source Address  This table allows you to control what hosts or networks have access to the configuration web server. If empty, any host may access the unit.

  • Page 20: Notes

    Day of month in the range 1 to 31. Hour Hour of the day in the range 0 to 23. Minute Minutes in the range 0 to 59. Notes There is a hardware real-time clock that saves the time between power cycles. ...

  • Page 21: Set All Defaults

    Configuration Set All Defaults Set All Defaults Screen This form will allow you to set all configurable parameters to their default value. Before you "Activate Changes", you should configure the interface that you are using to access the unit. Otherwise, all interfaces will be configured with the IP address of 192.168.0.1.

  • Page 22: Configuration File

    This form will allow you to copy the configuration to a file on your PC. You can also use the form to transfer a configuration file from your PC to the PR-6606. Also, if you have an existing configuration from a PR-6602, it may be installed to a PR-6606.

  • Page 23: Firmware Upgrade

    Configuration Firmware Upgrade Firmware Upgrade Screen This form will allow you to load new firmware into the PR-6606. The firmware will be saved to non-volatile memory, replacing the current firmware. Fields File Name  This is the name of the firmware image file to be transferred to the PR-6606 from your PC.

  • Page 24: System Reboot

    System Reboot System Reboot Screen This form will allow you to reboot the PR-6606. If you have configuration changes that have not been saved to non-volatile memory, they will be lost. This is a way to revert back to your previously stored configuration.

  • Page 25: Version Information Screen

    Configuration Version Information Screen Version Information Screen This screen displays current firmware and hardware version information as well as some copyright notices.

  • Page 26: Lan Ip Configuration

    LAN IP Configuration Lan 1 IP Configuration Screen This hardware contains three Ethernet interfaces which are bridged together (similar to an Ethernet switch). They all share the same IP addressing. This screen is used to configure IP parameters for the entire unit.
  • Page 27 Configuration Primary DNS  The IP address of the primary DNS server. This server will be used to resolve host names into ip addresses. Secondary DNS  The IP address of the secondary DNS server. This server will be used to resolve host names into ip addresses in the event that the primary name server does not respond or is unable to resolve an name.
  • Page 28 LAN Static Routes Lan 1 IP Static Routes This table allows additional static routes to be defined in addition to the default gateway, defined on the IP Configuration page. In most application is it not needed. It is only used if the subnet has more than one router.
  • Page 29 Configuration IGMP Group Join Lan 1 IGMP Group Join When using the Packet Repeater in a multicast application, there can be a problem when the layer-2 switch equipment is multicast aware. This equipment minimizes the impact of multicast by snooping the IGMP protocol and building multicast forwarding tables.

  • Page 30: Replication Selection Rules

    PR-6606 LAN port as the original destination or replicated destination. When the PR-6606 is replicating packets to a multicast or a broadcast address, the PR-6606 will not spoof the sender's MAC address, but instead will replace the original sender's MAC address with the PR-6606's MAC address, as is normal practice with multicast repeaters.

  • Page 31: Fields

    Configuration Fields Rule Number  This is the number of a rule defined on this line. Click on the Rule Number field to display the Selection Details screen, where you will configure the destinations for duplicated packets. Source IP Range ...

  • Page 32: Replication Rules Destinations Screen

    This screen is used to configure and display the destinations for replicated packets. The PR-6606 monitors all UDP packets passing through it. All packets received into any port of the PR-6606 are bridged unchanged and transmitted out the other ports of the PR-6606. Any UDP packets meeting user-defined selection criteria will be replicated and sent to one or more additional destinations.

  • Page 33: Notes

    Configuration Rule Number  This is the number of a rule defined on this line. Click on the Rule Number field to display the Selection Details screen, where you will configure the destinations for duplicated packets. Source IP Range  These fields specify the inclusive range of source addresses for the packet selection criteria.
  • Page 34 Replication Options Replication Options Screen This page sets configuration options for the Replications process. Fields Spoof • MAC+IP - Duplicate packets will retain the original sender's MAC and IP address. IP_Only - Duplicate packets will retain the original sender's IP address. However, the source MAC address will be replaced with the PR-66xx's MAC address.
  • Page 35 Configuration Enabled - Fragmented IP packets will have special processing. The first fragment will have the selection criteria applied as usual. For all other fragments, only the IP address selection criteria will be applied. This is because these fragments do not contain a UDP header. It is possible that IP fragments not associated with the UDP port will be replicated.

  • Page 36: Ping Screen

    Ping Screen Ping Screen Ping will send four ICMP echo requests to the specified host. It will wait approximately 16 seconds for a response. Fields Host  IP address of the target host. If hostname DNS is enabled, you may use a host name. Size ...

  • Page 37: Traceroute Screen

    Configuration Traceroute Screen Traceroute Screen Traceroute displays the route that a packet will take to reach another host. This is performed by sending UDP packets to port 33434 with progressively larger Time-to-Live values and listening for ICMP TIME-EXCEEDED responses from the routers along the way. Fields Host •...

  • Page 38: Packet Sniffer Screen

    Packet Sniffer Screen Packet Sniffer Screen The Packet Sniffer allows you to take a snapshot of the network traffic passing through an interface. Fields Host • This applies a host filter. Only packets with a matching source or destination IP address will be included in the trace.

  • Page 39: Interface Status Screen

    Configuration Interface Status Screen Interface Status Screen The Interface Status screen shows port status and packet counters for each interface on the device.

  • Page 40: Replication Log Screen

    Replication Log Screen Replication Log Screen The Replication Log screen shows important events logged by the replication process.

  • Page 41: Replication Statistics Screen

    Configuration Replication Statistics Screen Replication Statistics Screen The Replication Statistics Screen shows the number of hits attributed to each replication rule. It also displays the latest Address Resolution (ARP) Table. The ARP table may time out, but is useful to diagnose problems caused by non-responding IP addresses.
  • Page 42 the Packet Repeater. Unfortunately, this is not a perfect metric as it only increments when the Replication process overruns it's output queue. The underlying Linux system may also be dropping output packets if network congestion is detected. This can occur if the Packet Repeater Ethernet Switch is also heavily loaded and the overflow occurs at the packet forwarding level.

  • Page 43: Routing Table Screen

    Configuration Routing Table Screen Routing Table Screen The Routing Table screen shows all configured and learned routes.

  • Page 44: Dhcp Status Screen

    DHCP Status Screen DHCP Status Screen The DHCP Status Screen displays recent history of DHCP server activity if the DCHP client mode is enabled. Store Configuration Screen Store Configuration Screen The Store configuration screen is used to store the current configuration to non-volatile memory. This does not activate configuration changes.

  • Page 45: Activate Configuration Screen

    Configuration Activate Configuration Screen Activate Configuration Screen The Activate configuration screen is used to activate the current changes. Configuration changes are made to a temporary area. These changes will become immediately active, overwriting the pre-existing configuration for the duration of this session. Changes may be “stored” using the store configuration screen, in which case they will be written to non-volatile memory and used at the next reset or power-up.

  • Page 46: Chapter 5 Operation

    The packet will retain the original sender's IP address. Typical Application Diagrams A typical use would be to insert the PR-6606 in the ethernet path between a video camera streaming UDP packets and multiple recipient devices. Most video camera streams are limited to the number of destination devices they support.

  • Page 47: Chapter 6 Troubleshooting

    This chapter outlines some problems that may occur during installation or operation and some possible solutions to them. If you follow the suggested troubleshooting steps and the PR-6606 still does not function properly, please contact your dealer for further advice.

  • Page 48: Other Problems

     Power is available... an LED is on.  The terminal program is operating properly. Try a loopback connector at the PR-6606 end of the  cable to verify program operation and the proper COM: port. The most common problems causing this symptom are incorrect RS-232 wiring or the Windows ...

  • Page 49: Appendix A Specifications

    Commonly used cables: PR-6606 to hub or Ethernet switch Use any commercially available 10/100/1000BaseT CAT-5E or CAT-6 cable. PR-6606 to PC crossover Ethernet cable A crossover cable is not required for the PR-6606. All Ethernet ports on the PR-6606 are MDI/MDIX compatible.

  • Page 50: Open Source Software Information

    Some models of this product were designed and programmed with Open Source Linux software in mind. The core operating system is Linux, available from http://www. kernel .org . DCB supports the Open Source software effort and is appreciative of the contribution many open source developers have made to the community Other open source software used in this product may be obtained from the original developers, and is made available in accordance with GNU licensing terms.
