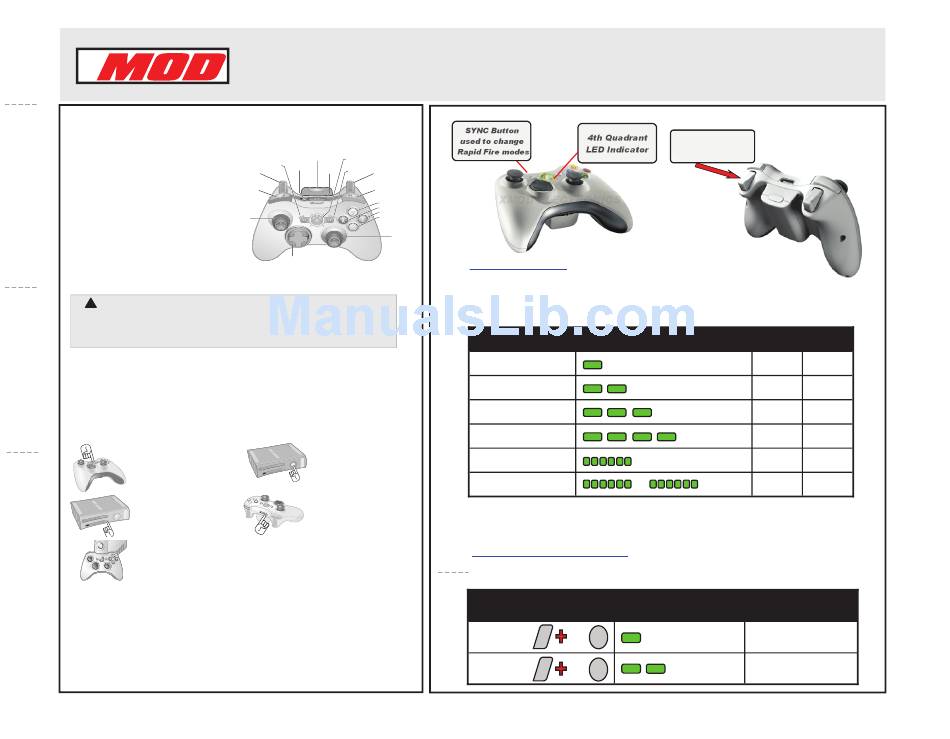

Xmod Electronics XBOX 360 Instructions

X
XBOX 360 RAPID FIRE CONTROLLER
ELECTRONICS
Xbox 360 Wireless Controller
Thanks for choosing the Xbox 360 Wireless Controller. Your wireless controller lets you experience
the ultimate in wireless freedom with precision, speed, and accuracy. The Xbox 360
Wireless Controller features:
• 2.4-GHz wireless technology with
nine-meter (30-foot) range.
• Integrated headset port.
Left bumper
• Adjustable vibration feedback for longer
battery life.
The Xbox 360 Wireless Controller is for use
exclusively with the Xbox 360™ video game
Left stick
and entertainment system. For information
about using the Xbox 360 Wireless Controller
with a particular game, see your
game manual.
To enhance your experience with the wireless
controller, try the Xbox 360 Rechargeable Battery Pack and the Xbox 360 Play & Charge Kit. If
you're looking to expand your wireless experience, consider the Xbox 360 Universal Media
Remote and the Xbox 360 Wireless Networking Adapter.
!
WARNING
Before using this product, read this manual and the Xbox 360 console manuals for important
!
safety and health information. Keep all manuals for future reference. For replacement manuals, go
remove Controller Batteries aboard aircraft
to www.xbox.com/support or call Xbox Customer Support
Before boarding any aircraft or packing the wireless controller in luggage that will be
(see "If You Need More Help").
checked, remove any batteries from the wireless controller. The wireless controller can
transmit radio frequency (RF) energy, much like a cellular telephone, whenever batteries are
installed.
Connect your Controller
Up to four controllers, wired and wireless, can be actively connected to a console at one time. Each
connected controller gets a quadrant on the Ring of Light. Before you can connect a wireless
controller, at least one quadrant must be free (unlit). To disconnect a wireless controller, press and
hold the Xbox Guide button for three seconds, and then turn it off. For a
wired controller, disconnect the cable connector.
To connect your wireless controller to your console:
Press and hold down the
1
Xbox Guide button until the
controller turns on.
Press and release the
3
connect button on
the console.
After the Ring of Light on the controller and console spin and flash once, the
5
controller is connected. The quadrant that remains lit indicates the
controller's position.
turn your Console and Controller on
To turn your console and controller on, press and hold down the Xbox Guide button until the
controller turns on.
To turn on your console only, press the Power button on your console. To turn on your
controller only, press the Start button on your controller.
turn your Console and Controller off
To turn your console and controller off, press and hold the Xbox Guide button on your
controller for three seconds. Then select whether you want to turn off just your controller or
both your controller and your console. (Selecting the console will turn off both the console
X112994903_Wireless_Controller_E1 1
www.xmodelectronics.com/rapidfire
Xbox Guide button
AA battery pack
Back button
Connect button
Start button
Charge port
Left trigger
Right trigger
Right bumper
Y button
X button
B button
A button
Right stick
Directional pad
If your console is not on,
2
press the Power button
to turn on the console.
Press and release the
4
connect button on
the controller.
SYNC Button
4th Quadrant
used to change
LED Indicator
Rapid Fire modes
RAPID FIRE MODES
Just TAP the SYNC button or the MODE button underneath to cycle through
the modes . At which point the player 4 LED will flash indicating the MODE you are in.
The chip will remember the speed mode (no BURST/AKIMBO), even when you turn your
controller off or remove the batteries.
SYNC - MODES CYCLE
LED BLINKS
MODE 1 - SLOW
MODE 2 - MEDIUM
MODE 3 - FAST
MODE 4 - PROGRAM.
MODE 5 - COD5 - SLOW
MODE 6 - COD5 - FAST
TURN THE RAPID FIRE ON/OFF
Press and Hold the LEFT TRIGGER and tap the
rapid fire Mod Chip.
RAPID FIRE ON / OFF
Press & Hold Tap
LT
SYNC
Press & Hold Tap
LT
SYNC
- sales@xmodelectronics.com
Right Trigger
To Fire
BURST AKIMBO
YES YES
YES YES
YES YES
YES YES
NO NO
NO NO
SYNC/MODE button to activate/deactivate the
LED BLINKS
RAPID FIRE: ON
RAPID FIRE: OFF
