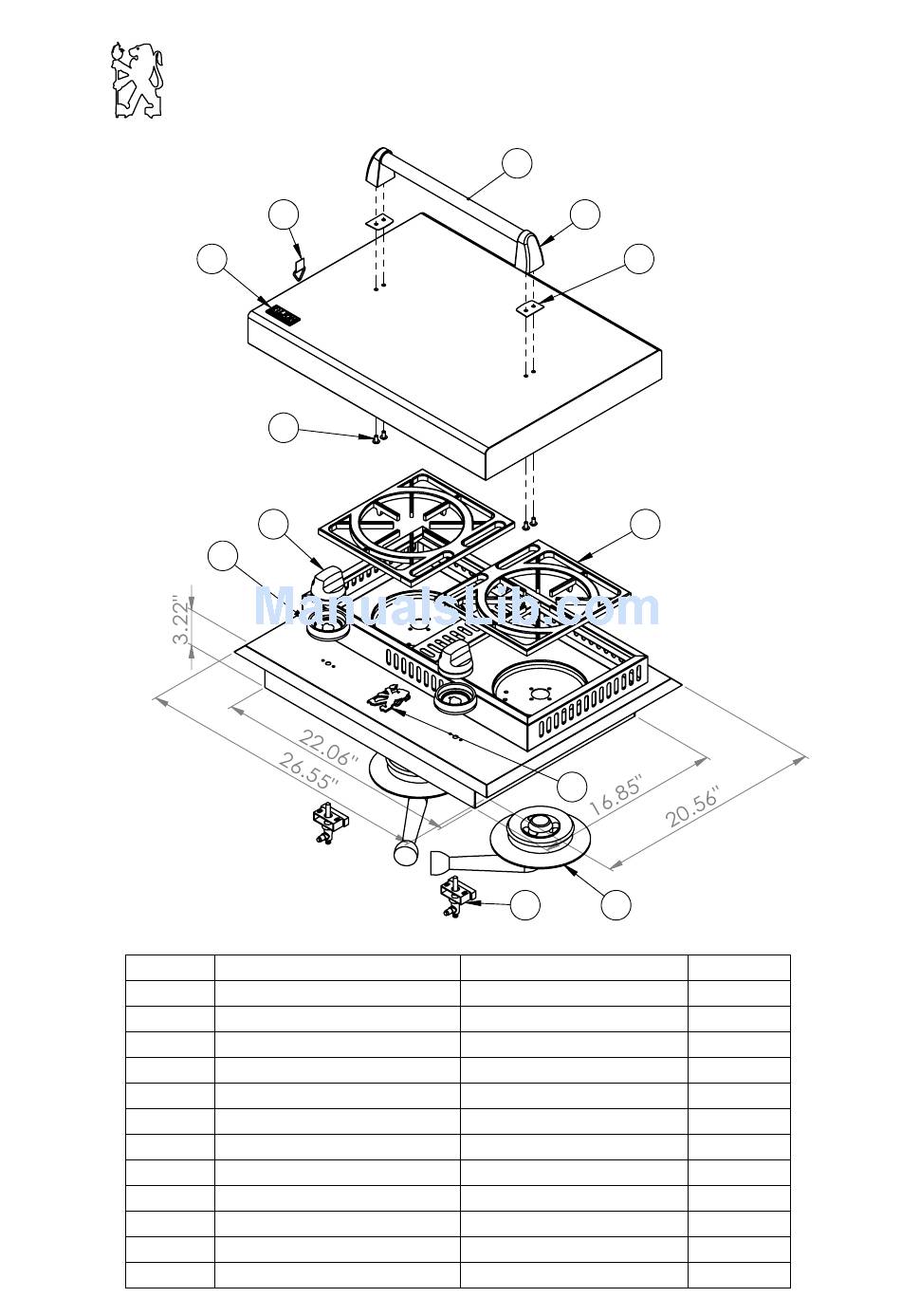

SPECIFICATIONS & ASSEMBLY INSTRUCTION
ITEM #L1707 DOUBLE SIDEBURNER(LP)
ITEM #L1634 DOUBLE SIDEBURNER(NG)
6
4
5
8
9
NO.
Part list
1
Handle Bracket
2
Drawar Handle
3
Gasket
4
Logo
5
Bolt M6*12
6
Rings
7
Logo Lion
8
Knob
9
Knob Bezel
10
Trivet
11
Brass Burner
12
Side Burner Valve
2
1
3
10
7
12
11
Dimension
Q'ty
2
1
2
1
4
1
1
2
2
2
2
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Lion Premium Grills L1707
- Page 1 SPECIFICATIONS & ASSEMBLY INSTRUCTION ITEM #L1707 DOUBLE SIDEBURNER(LP) ITEM #L1634 DOUBLE SIDEBURNER(NG) Part list Dimension Q'ty Handle Bracket Drawar Handle Gasket Logo Bolt M6*12 Rings Logo Lion Knob Knob Bezel Trivet Brass Burner Side Burner Valve...
- Page 2 SIDE BURNER INSTALLATION INSTRUCTION 2.Point the handle to gaskets 3.Remove red sleeve 1.Remove the handle set under and fix it with bolts on the lid side burner 4.Connect Gas Hose with switch 5.LP Gas usage: Connect the Attach one end of T-fitting to T-fitting with Gas Hose Regulator, the other end to Grill...
