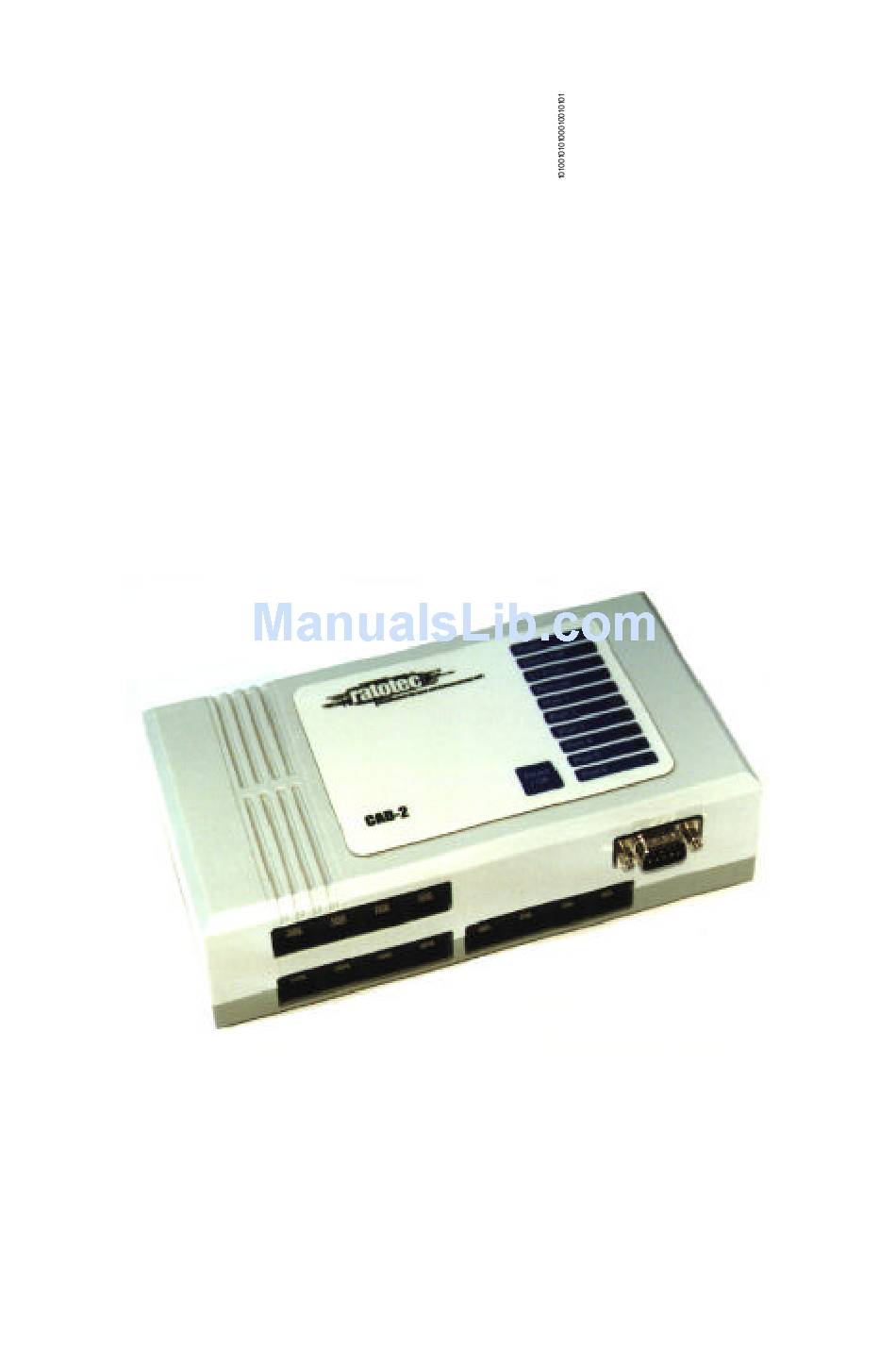

• up to six independently working S0-Routingportses make possible an assorted connection of installations - and increase-appliance- connections • Belegung an any number of Ports • highest transparency for the rear additional-put-telephone-installation • distant-attendant-cash via ISDN • Password protection against unwarranted access •...
1 Remote program 1.1 Remote connection to at Router By the connection with at Router, Remote grabbed, two possibilities stood to the disposal: 1.1.1 RS232 To the connection PC - > CAD-2 serial cable becomes sea at customary zero-modem cable, 9 polig SUB-DSS, Kabelbelegung instruction manual CAD-2, requires.
Form 1.1: Config Com ports Options By deactivating the COM-Ports, the automatic search is stopped with the program-start. 1.1.2 ISDN The Router must be called the call via ISDN at the installation-place (location). Anuses operating the ANWAHL-Buttons, at telephones number can choose from the lists or input wants directly into the edit windows.
Page 13
Form 1.2: call window To the call on the Router, one requires a password, that protects against unwarranted access, furthermore. In the on-line-case, the connection becomes visible on the Remote -panel. Heed: At canal, that is of necessary recognized by the TK installation, is blockaded by call on the Router! Show the statistics, that an unequal connection-division of the Ports exists, should be avoided to the call on less used Ports.
1.2 Construction of the Remote panel The work-area of the Remote programmes consists of five splits. • Port shows Speak, the call port writes shows of the Remote programmes. At starlet of signal the synchronization-canal of the Routers. • Ad internal Show the telephones numbers of the internal participants on the respective canal.
Page 15
Form 1.3: Remote panel Two Trace auswertungs of area ary under the status-ad of the individual Ports. To the one for one layer 1 Trace and to the other for the general Trace, more exact description, lake's chapter Trace analysis. In the low area of the screen, the stored data appear anuses call of at Routers regarding serial number, div.
radiance for incoming telephones calls permanently. The momentary statuses of the connection is shown in the right field. 1.3 Software update This menu-point makes possible the dispatch of new software-versions to the Router. After the selection of the Files, the new version is transferred and the system is started after their completion again.
2 Routing 2.1 Routing liste Since the CAD-2 is a Least-Cost-Router, special attention must be dedicated to this very important topic. With activity of ROUTING, the existing Routing list is read from the Router and is represented in the connection. This list can become modify and through pressing from O.K.
Page 18
Form 2.1: Routingliste processes Heed: After each change of the Routing list, this must be set aside under a name. The surface subdivides itself in the left area into the Routing numbers, in the middle into the weeks - and Time of day and in the right into the Port allocations.
2.2 Routing numbers The Routing numbers ary into different groups ace waves ace divided regions: • Standard • City * • Region 50 * • Region 200 * • Distant * • Mobile 1-8 • Globally 1-15 • Globally default * dependent of the router location These groups...
Page 20
Through activating the symbol " of necessary routes " is excluded the indicated lists of the Routing, which is clarified by at gedimmte ad of the Routing times. Heed: At expansion of the Routing lists is compared when leaving the input- window with other Routing groups again.
2.3 Routing times The Routing Time's can be put in individually in hour-intervals. At condensed input, for example Mo-Fr or Sa, Su, has proven as meaningful. Mold 2.3: Routing in the time of groups Heed: The first day of the group is always represented when editing group- days.
Page 22
Mold 2.4: Routing in the Time of input Through at double-click on the corresponding Routing in the time of succeeded one into the input-field, which Routing starts, Routing finishes and two Carrier to the selection puts. At selection of 30 storage areas stands for the input of the Carrier by the disposal, that can be altered anytime.
2.4 Carrier lists In the Carrier lists at selection of 30 Carrier and at default is stored Carrier. With alterations of the lists, old Carrier attitudes ary replaced with New. The Zuordung of the Carrier number with the accompany writes, right beside it, can be edited in the included text file names .crr.
2.5 Location The installed location of the Routers can be input by call of the location-field. It passport's the possibility, Routing lists completely with the data of the data cousin or only the ortsabhängigen data of the areas city, Reg50, Reg200, to head.
2.6 Dues Two dues-simulation-models are available: Form 2.7: dues -simulation • Dues during and in the finishes the connection Convey dues-impulses ace Telekom unit, z.Zt.12 Pf, to the phone in advance, TK installation, telephones, and the sum of the attacked dues in the finishes the connection (AOCD+AOCE). Heed: On this occasion it can lead according to TK installation to of problem if at telephone-installation admits only one...
2.7 Call repetition At Carrier should moisten busy is, at call repetition can be put in according to tidings-wish within at certain time-window. Anuses x-connection try with Carrier 1 is transacted y -connection with Carrier 2. If the call of attempt should of necessary have been finished on both Carrier in the pre- determined time-window, the third default becomes Carrier, recommended Telecom, dial in orders to guarantee at connection.
2.8 Port attitude The attitude of the respective Ports is in the right area of the surface. By call of ALL, the attitude can be transferred on all Ports. However, each Port can be configured individually. • Routing • In - as well as Ausschalten des Routings •...
Form 2.9: Porteinstellung 2.9 Not routed branche The Remote-Programm allows at Routing exclusion of additional-positions. The telephones numbers ary compared upward from the read position on, for example " 14 " - the branches with the numbers of xx14 doesn't become routed.
2.10 Input of the holidays Under the menu-point holidays is input lawful holidays. The input-format of the days and month should am ount to 5 positions including point. Example: Holiday Input 1.Januar 01.01 25.Dezember 25.12 Form 2.11: holiday -input Heed:...
The holidays can be written down in the Routing list and the dues-list. No valid data should exist in the dues -list, is fallen back on the inputs of the Routing list. 2.11 Routings list strategies load Routings list strategies load meant that only the parts of at Routing lists, which have no influence on the put in location, ary loaded.
3 Statistics 3.1 Statistics reads The statistics comprises at listing of the Routing quotas for each Port, Routing quotas of the individual Carrier and Cause dear statistics. Form 3.1 statistics-windows 3.1.1 Connection-statistics The connection-statistics shows at listing of six S0-Portses. The ad is of necessary router specifically and always refers to at extension-step of six Ports.
This statistics shows at individual Routing q uota for each Carrier, that exists in the corresponding lists. 3.1.3 Cause dear statistics The Cause dear statistics declares the number of the cause establishes for certain events. 3.1.4 Cause dear Location The Cause dear Location declares the number of the cause locates for certain events.
Page 35
• Reject Telegram assumed not U-Frame Verbindungsauf - as well as Abbau • unquittiertes telegram • SABME Connection-construction layer 2 • Unnumbered Acknowledge Quittierung for connection-construction and -abbau • DISC Connection-reduction layer 2 • Disconnect fashion Several wrong appliances are it at the bus.
Page 36
• ID-check Response Answer address-check up • ID-Remove Removes the address • ID-Verify Check up the address...
3.3 Storages Read statistics can be stored as File. A name of the program is proposed with it, the serial number, date and time comprises and such a later temporal sequence and evaluation enables. 3.4 Return puts down In the case of the return puts down of the statistics, all counters and statistics-values ary put on zero.
4 Trace analysis 4.1 Trace surface Through double-click on the Trace window, one reaches the Trace analysis of the layers 2 and 3. Mold 4.1: Trace analysis The surface consists of two areas, that increases through double-click on the upper window or can be reduced. The Trace data indicated above, is translated with call in the low area (translator).
4.2 Trace on/ off In the of on-line case can the layer - 1, -2 and -3 activities is transference- speaks. If the function should be switched off, at storage-news, appear to the wants Trace protection. The pre-determined Trace number become through numbered and can if necessary is altered.
4.6 Layer 2 trace Through activating this menu-point, the Schicht-2 activities become with at Trace with drawn, default-attitude. 4.7 Trace load Stored Trace can load and in the Trace windows ace waves ace in the Trace analysis visibly of is of done. 4.8 Trace secure Drawn Trace can be stored here to the later evaluation.
5 Installation and service 5.1 Function-description THE CAD2 IS AT LEAST-COST-ROUTER WITH PLUG&PLAY QUALITIES. He/it support's the DSS1-Protokoll at at point to point-connection ace waves ace at at point to increase-point-connection. With the telephones number-manipulation, the Carrier number cast off in the Routing table, in dependence on Time, weekday and goal-telephone number, is put down before the chosen telephones number, Call by Call, and the conversation consequently over the wished telephone-supplier-...
5.2 Starting The CAD-2 becomes ace shown in picture 5.2 for Port 1, between NTBA, Telekom network, and Endgerät, TK-Anlage, telephone,...) switched. THE NTBA MUST BE CONNECTED TO AT PORT MARKED WITH EXT TO THIS. THE TK-ANLAGE ACE WAVES ACE IS CONNECTED MARKED PORT WITH THE INT THE WISHED ENDGERÄT.
Page 45
The green Leuchtdiode (Power-LED) shines permanently after this initialization. With blinking Power-LED (lacking Routing list), the appliance chooses itself after approximately 15 Sek. automatically with the affiliated Remote-Server under the put in number in the Routing list at. An on the layer of 2 activated Port is shown by a yellow Leuchtdiode. A short-term Aufleuchen (1 sec), that gives L1 ERROR-LED, a mistake with the on - or reduction of the layer 1 known.
Page 46
Name permament blinks Power Appliance is initialised and Routing lists is missing / operational appliance re-put down Deact. / Off Appliance deactivates / Routing deactivated relay durchgeschaltet L1 ERROR shine 1 sec. with faulty layer 1 on - as well as Abbau Remote Grabbed from Remote- -1 TR 6 existing...
Page 47
Form 5.2: connection of the Routers Form 5.3: Anschlußbelegung...
PC at the RS232 interface at the underside of the casing. Through use of the serial cable, the maintenance or a debugging is possible directly on the spot. An exact Bescheibung of the program sees TRemote- Program. 5.4 Cable belegung 5.4.1...
5.4.2 ISDN connection The following sketch shows the Belegung of the ISDN-Buchsen for EXT - and for INT-Ports. Form 5.5: ISDN Belegung 5.5 Technical data ISDN-Protokoll DSS1 ISDN-S0 connections maximum 6 Extern, max. 6 internal, RJ45, Serial interface DB9 SUB-D 9polig plugs Power supply external network-part 12..
