retrotouch RTS2030 Instruction Manual

INSTRUCTION MANUAL

INSTALLATION WARNINGS:

BEFORE COMMENCING INSTALLATION ISOLATE YOUR MAINS ELECTRIC SUPPLY
Read the instructions care fully before starting the installation process and keep them for future reference. This product must be
installed by a qualified electrician. This product should be installed in accordance with the relevant sections of the building regulations
code, and the current edition of the IEE Wiring Regulations (BS 7671:Requirements for electrical installations) and appropriate
statutory regulations.
Do not exceed the Maximum Power Rating detailed in the s.pecification over leaf.

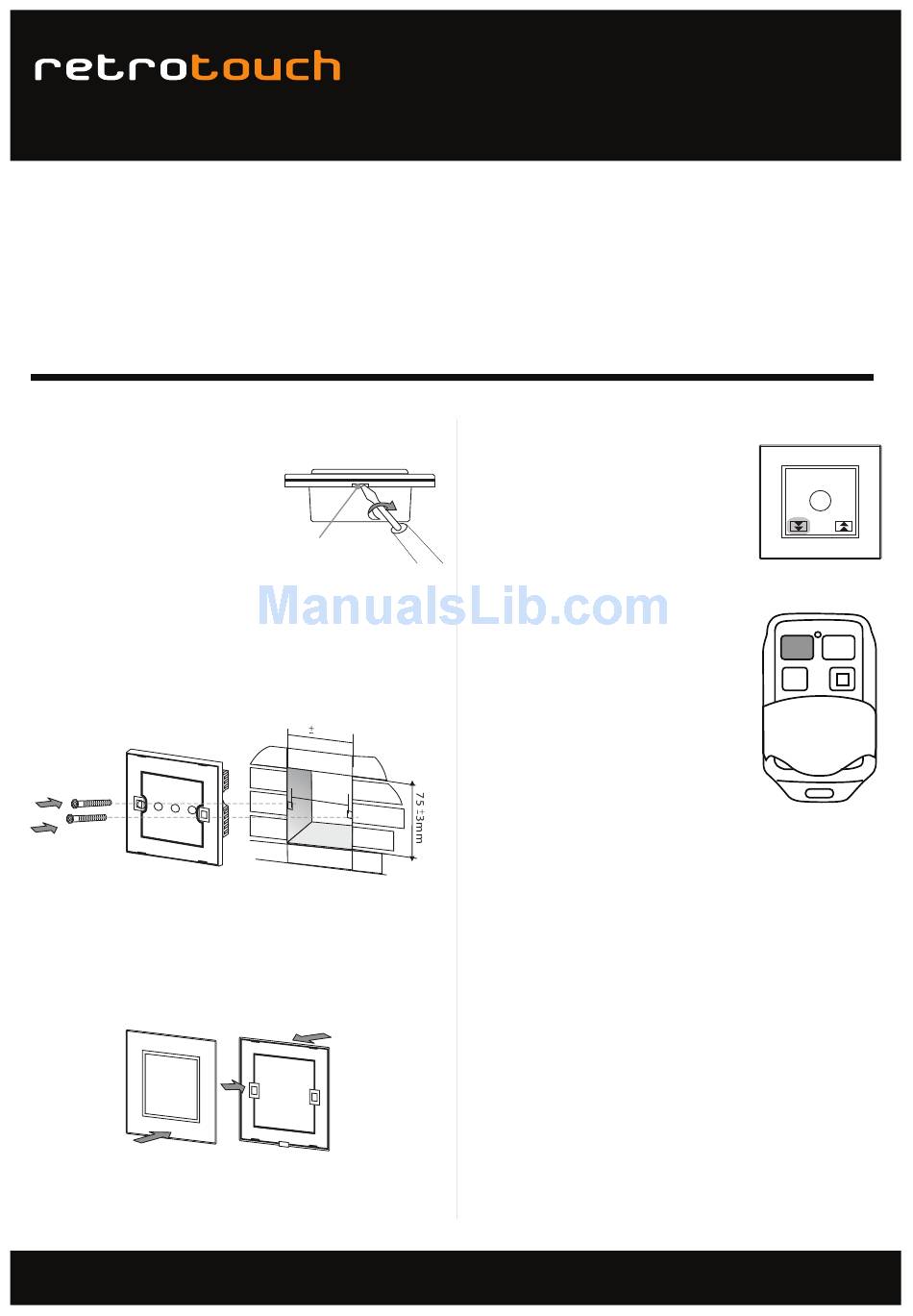

Installation

Remove the glass panel of a
touch remote switch: Using a small
flat screwdriver remove the front
cover by placing the screw driver in
the location notch on the bottom
part of the cover and twist to unclip
the cover.
Wiring: Wire as described in the diagram opposite. Push
wires firmly into terminals and tighten terminal screws so that
wires are held securely. No bare wires should protrude from the
terminals. Ensure correct wires are connect to the correct
terminals, if incorrectly wired, this could damage the switch.
Fix screws: Use the screws supplied to attach switch to
backbox using a flat head screwdriver
Reattach the glass panel: Align the glass panel over the
switch and firmly push to click into place.
Push
until click
Power on: Once the power is on, wait 2 minutes for the
switch to power up, then touch the panel to turn on the light.
For support visit www.retrotouch.com/support
twist to remove
7 5 3 m m
60mm
lock here
first
The remote

Pairing a remote

1. Touch & hold the dim down touch
area of the switch for 5 seconds and
wait for the beep.
2. Press and hold a button A (for 1
gang) or B (for 2 gang) on the remote
control and release after you hear a
beep.

Un-registering a remote:

Repeat steps for registering the remote.
When pressing and holding the remote
button, wait for two beeps and the
remote will be un-paired.
Factory reset: Press and hold the
switch for 5 seconds till you hear a
beep, continue to hold for a further 8
seconds until you hear another beep. The switch is now
back to factory settings.
Optional scene remote available, Can control up to 19
gangs and set up to 4 scenes.
RTS2030
(RTS2030 remote models only)
B
A
C
