Summary of Contents for Make Noise QMMG

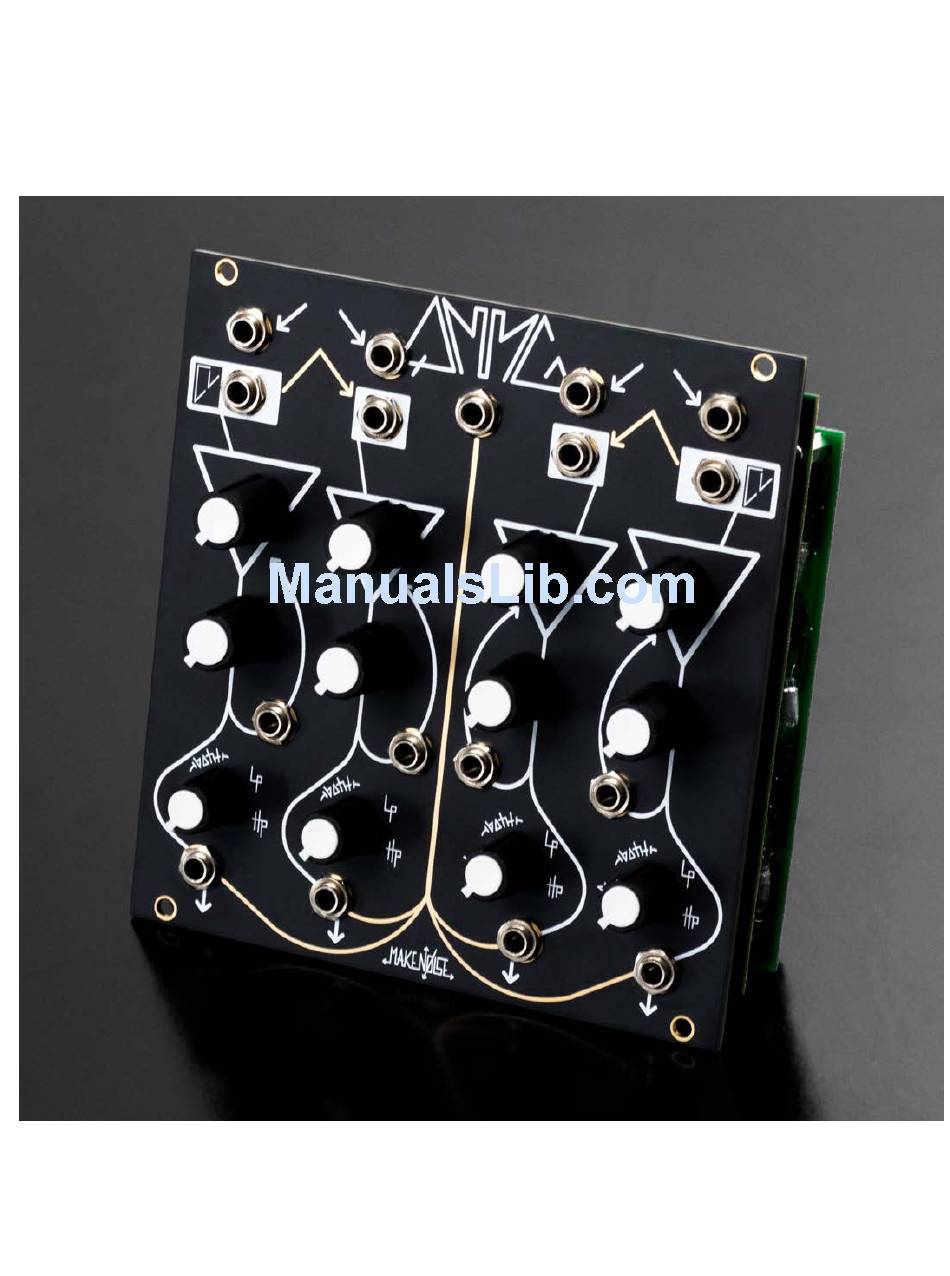

  • Page 1 QMMG...

  • Page 2: Limited Warranty

    Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply. During the warranty period, any defective products will be repaired or replaced, at the option of Make Noise, on a return-to-Make Noise basis with the customer paying the transit cost to Make Noise.
  • Page 3 Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the NEGATIVE 12 Volt line is indicated by the white stripe.
  • Page 4 The QMMG contains no fewer than 8 Vactrols! The 2018 black and gold reissue of the QMMG is functionally identical to the original. The Top board was re-engineered to use analog pots for mode selection instead of analog switches. The only change to the...
  • Page 5 Panel Diagram CH. 3 Signal IN Control Control Offset Manual Feedback Control Feedback Control Mode selection Signal...

  • Page 6: Panel Controls

    In addition to the 4 GATE channels, a single MIX OUT is provided The sum of all signals processed by the QMMG is output at this socket. A signal is removed from the MIX when a plug is inserted at the corresponding channel Signal OUT.
  • Page 7 RINGING and reduce or eliminate the signal bleed associated with this Mode. The Feedback circuit in the QMMG allows for this control without the use of an Additional VCA. To control the ringing adjust the Feedback Manual Control or apply a control signal to the Feedback Control IN.
  • Page 8 Normalizations: Throughout the QMMG normalizations have been installed to allow for ease in patching Combinations that result in BANDPASS Gates, Steeper LP and/ or HP Gates or even Something like a traditional Subtractive Synthesis Voice.

  • Page 9: Tips And Tricks

    Tips and Tricks -Use one half of the QMMG to process CV (attenuate, amplify, mix, smooth) to be applied to the other half for processing of Audio signals. -VCA mode is useful for utilizing the QMMG as a Voltage Controlled Mixer, or processing Control signals.
