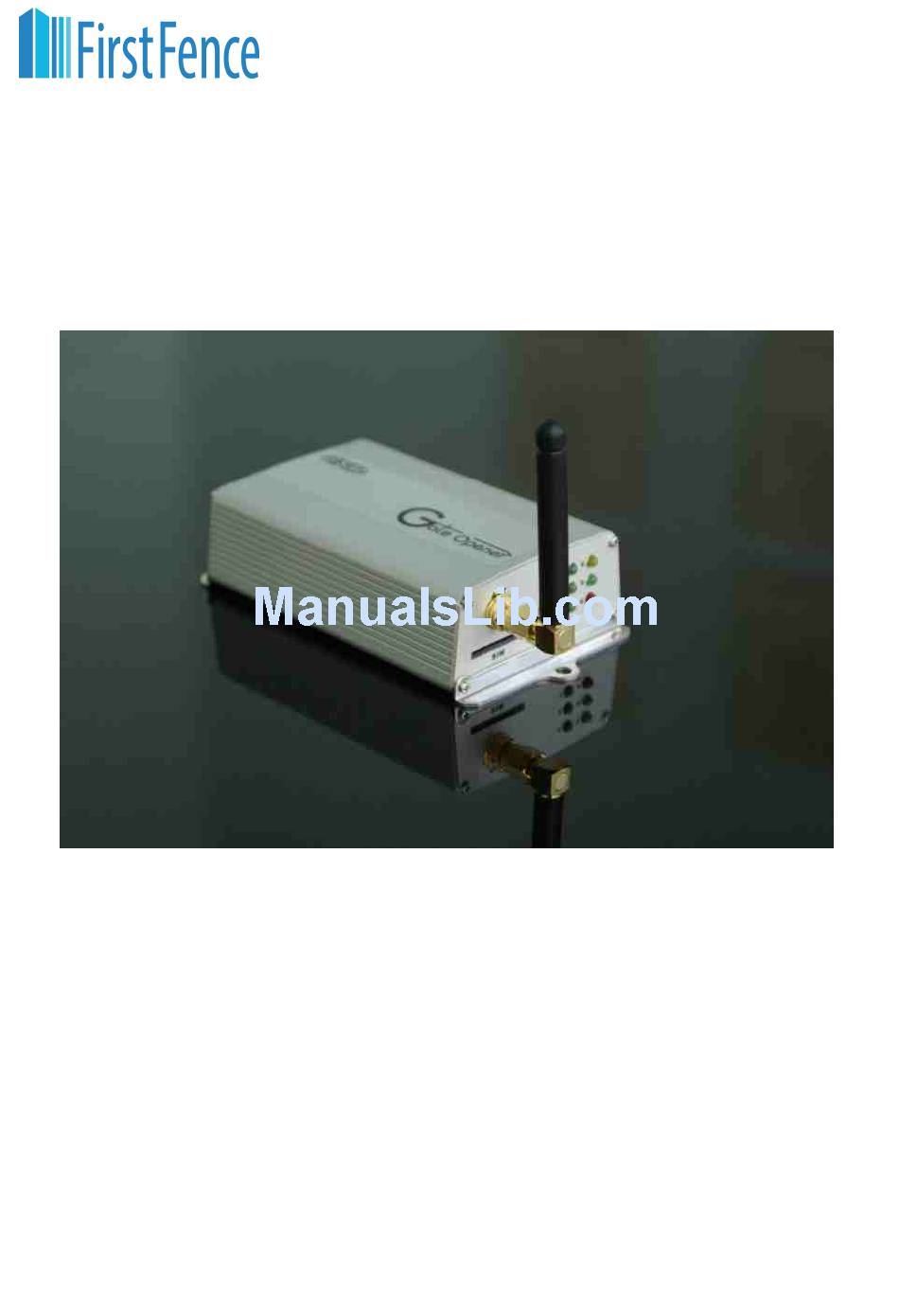

- Page 1 Phone: 01283 512 111 Fax: 01283 480 522 Web: firstfence.co.uk Mail: sales@firstfence.co.uk GSM Door Opener Manual Model: PFGOGSM : 1 Output 2 Inputs Please read these instructions completely before use Page 1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ................... 3 2. BRIEF INTR ODUCTION .................... 3 3. PRODUCT FEATURES ....................4 4. STANDARD PACKING LIST ..................4 5. INSTALLATION ......................4 5.1 S IM card installation ........ -
Page 3: Safety Precautions
Thank you for purchasing GSM Door Opener. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problems happen. 1. SAFTY PRECAUTIONS Unplug the power adapter before cleaning. Do not use liquid cleaners or aerosol Cleaners a damp cloth for cleaning. -
Page 4: Product Features
3. Product Features: Simple to use, easy to program. Programming via SMS command. Ideal for remote control of automatic gates, barriers, doors, central heating systems, home Send SMS notification when a short circuit exists on inputs 100 telephone numbers memory for access control by caller ID automatic number recognition at no call cost to user. -
Page 5: Antenna Connection
Fig1 5.2 ANTENNA CONNECTION Ensure that there is good network reception at the location where it wil be installled. If you use a 3 meters antenna install it as hi g h as possible on the top of the pillar for best possilbe reception . -
Page 6: Power Supply
Fig3 5.4 POWER SUPPLY The GSM door opener is designed to work with power supplies 12V~24V AC/DC. The power supply should be capable of supplying a constant current of no less than 1amp After a final check of wiring switch on the power. allow 20~30 seconds for the unit to boot up and detect the network. -
Page 7: Led Indicators
6. LED INDICATORS Fig4 LED Status Number Definition Solid Flash Input 2 active In triggering setup time Trigger input 2 Standby & Sending SMS (17+Time#) Input 1 active In triggering setup time Trigger input 1 Standby & Sending SMS (15+Time#) Output Relay 1 Relay1 ON Relay1 OFF... - Page 8 Parking Facilities GSM Door Opener Quick Instructions Basically this unit will operate via TEXT or by CALLING in to the Unit. The number that I will use as an example on this unit is 07595 062 810 which by the way, is the number you can call if you want to get some tech support.
-
Page 9: Operation
7. OPERATION Programming of the telephone numbers in and whenever the unit receives a call will recognize an authorized telephone number calling it and will then reject the call without answering (so there will be no charge) and open the gate or door. The relay can also be temporarily or permanently switched on or off by sending SMS or dialing in. -
Page 10: Programming By Text Message
Note: *programming dialing in can ’t be used from telephones which are already programmed to open the door when they dial the GSM door opener. * If the number is programmed to open the door but you still would like to use the same number to dial in for programming, then you can disable Caller ID display (withhold the number) on the mobile. -
Page 11: Administrator Number
9. ADMINISTRATOR NUMBER THIS MUST BE DONE BEFORE ANY OTHER PROGRAMMING Once the administrator number is stored in the unit whether programming via dialing in or text messages can only carry out by this number. Example: Program a mobile number as an administrator number via SMS Mobile number: 0865682554 Command to use *12*1234#74 [Admin number]# * 12*1234# 740865682554 #... -
Page 12: User Commands
13. USER COMMANDS User commands list Command Description settings Default Change password of Programming password:4 ~6digits 1234 01 [new password]# Mode 02 [new password]# Change password of Access control password:4 ~6digits 5678 Mode 11[Time]# Door open confirming time Time = 0~9 9 seconds 0 sec no delay 12[Time]#... - Page 13 Command Description settings Default 74[admin number] # admin number =3 ~14 Add administrator phone number digits ( no number no restriction) 74*# Delete administrator phone number 75[N][ phone number] # Add mobile number of alarm contact N=1~3 (sequence of phone when inputs are triggered.
-
Page 14: Serial Models
14. SERIAL MODELS: Model NO. Description PFGOSAM - 01 2 OUTPUTS GSM Door Opener 15. SPECIFICATION: Operating Voltage 12~24 volts AC/DC Operating Current Maximum 250mA, typically 55mA GSM Module Cinterion -Germany GSM Frequency GSM 850/900/1800/1900 or GSM 900/1800 MHz Power Consumption Standby: 42mA/hr / Relay on: 83mA/hr Physical size 9.5 (L) X 6.0 (W) x 2.5 (H) cm...
