Xtreme Gaming GM-X3 User Manual

Laser gaming mouse
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Enlarged version

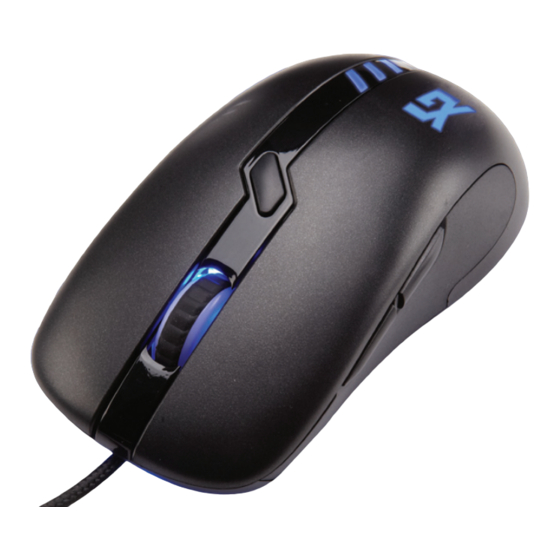

GM-X3
LASER GAMING MOUSE
Package contents:
• Gaming Mouse
• User's Manual
• CD installation driver

Product Features:

• Onboard memory - You can save your settings on the mouse. A ready-
to-play profile (for keyboard macros and DPI settings) stores critical
information for your favorite title
• Ground Effect FiberIillumination - 32 LED colour options are under
your control, programmable with the enclosed software
• A9800 Gaming laser sensor - Game-changing precision at any hand
speed; Whether you're zeroing in on one pixel or whipping across a mil-
lion at full speed, the A9800 laser sensor gives you hard-to-beat cursor
control
• Adjustable sensitivity - You can shift from pixel-precise targeting (100
dpi) to lightning-fast maneuvers (up to 8200 dpi) in an instant.
• 6 programmable buttons - Program your buttons and in an instant have
macros at hand.
Software for advanced setup
For maximum use of all the GM-X3's features including macro settings,
acceleration, profile settings and more, then the software menu should be
your next destination.
Default Settings:
8043020
1) Left-click button
User's Manual
5) Forward button
2) Right-click button
3) Scroll wheel
4) DPI button
6) Backward button

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM-X3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xtreme Gaming GM-X3

  • Page 1: Product Features

    Default Settings: 2) Right-click button 8043020 GM-X3 1) Left-click button User’s Manual 3) Scroll wheel LASER GAMING MOUSE 4) DPI button Package contents: • Gaming Mouse • User’s Manual • CD installation driver Product Features: • Onboard memory - You can save your settings on the mouse. A ready- to-play profile (for keyboard macros and DPI settings) stores critical information for your favorite title • Ground Effect FiberIillumination - 32 LED colour options are under your control, programmable with the enclosed software • A9800 Gaming laser sensor - Game-changing precision at any hand...

  • Page 2: System Requirements

    Button Setting You can customize 6 keys, each with an individual function. Carbon software comes • Operating system: Windows XP/Vista/7/8/10, Mac OS (with basic functions) with multiple function button settings. • PC with USB port • CD-ROM drive • 30MB free hard disk space Load Reset Save Windows Installation Instructions Configuration 1 Configuration 2 Configuration 3 Configuration 4 Configuration 5 1. Plug the mouse into the USB port of your computer. 2. Insert the GM-X3 driver CD into your CD-ROM. 3. The Setup screen appears. Choose NEXT and install software. Click 4. Restart your system. After rebooting, your GM- X3 software is ready to Right Click use. Customize Middle Button Forward When you open the software, you will see the below interface. This interface Backward allows you to easily configure your mouse. You can also create and save unlimited profiles. The last software setting DPI Cycle used will always be stored in the mouse.
  • Page 3 5-Macro Manager Underglow ground effect light settings With the GM-X3, you can record a macro for key combinations that can be up to 255 Backlight LED lights can be managed by the software. You can turn off all lights with different keystrokes and with precise timing sequences. This allows you to setup the normal mode profile or keep the LED lights open. Program your mouse with a common commands and shortcuts that enhance your actions per minute and ensures pulsing heartbeat effect with 32 colours. that you don’t accidentally hit the wrong key and miss out on important in-game sequences. Load Reset Save Load Reset Save Illumination ON Illumination OFF Select Illumination Color Adjust Lighting Effect Delete Rename Record delay between keystrokes Color Settings Set All items Delay Time to: Record no delay Adjust Pulsating Number of Loops ON/OFF (Max. 255) Slow Fast Macro Manager Move Up...

  • Page 4: Performance Settings

    Specifications 7-Performance settings With 4 different DPI options, you can set the DPI level according to your profile; • 6 keys, 6 adjustable macro keys from 100 to 8200 DPI • Avago 9800 laser sensor • 1ms response time Select the desired resolution(s) of the mouse sensor here. You can configure the reso- • 12,000fps, 11-MegaPixel lution of the sensor in different steps. Using the upper check boxes, select which steps you want to switch the DPI resolution between using the Plus/Minus mouse buttons. • 30g acceleration Data rate allow between 125-1000 Hz options. • 16-bit data channel • 72MHz turbocore processor • 128kB onboard memory • 4 DPI levels - from 100 to 8200 Load Reset Save • 128kB embedded memory • Gold-plated USB connection • Durable braided 1.8m cable DPI Steps • Customizable unlimited LED light system • 5 group profiles Step 1 Step 2 Step 3...
  • Page 5 THE SOURCE – WARRANTY The Source warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. Within this period, simply take the product and your proof of purchase to any The Source store or participating dealer and the product will be replaced (where available) without charge.
