Hawthorne Pathway Light Installation Manual

Hawthorne
Pathway Light
Installation Guide
Surface Mount
Included hardware
1x – Lightpole 4x – Cabinet
1x – Cabinet
assembly cover
dome cover
Tools Required
• Safety glasses
• Screwdrivers
• Wiring tools and connectors
• Anchoring hardware – (4) Ø3/8 (maximum) x 3-1/2" length stainless steel anchors.
Landscape Forms recommends Power bolts or drop-in wedge anchors
• Hammer drill
• 3/16" hex key
LIGHTING LAYOUT RECOMMENDATIONS:
Although light pole spacing is the responsibility of others, the following can be used to help
determine appropriate spacing:
Hawthorne distribution is an IES Type 4 pattern and meets or exceeds IESNA DG-5 for Park
walkways, Class 1 bikeways, Residential sidewalks and Intermediate sidewalks at 25' pole
spacing, and Commercial sidewalks at 15' pole spacing. Poles can also be spaced 15' apart
on both sides of a 10' path for Public-Way Emergency Egress. Outside of North America,
Hawthorne meets CIE-136-2000 for Residential Parks at 25' pole spacing.
1x – Cabinet
1x – LED
dome
driver
retainer bar
1x – anchor
template
4x – Cabinet
cover screw

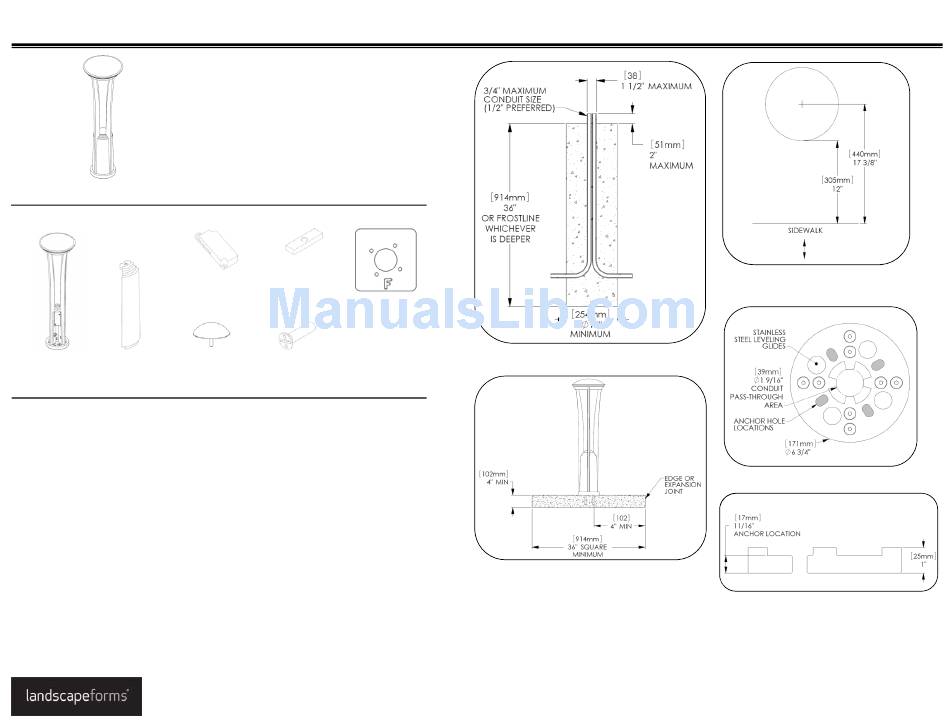

Fig. 1 – Minimum footing recommendation
Fig. 2 – Minimum concrete slab size
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish. To protect
this finish during assembly, place unwrapped powdercoated parts on packaging foam or other non-
marring surface. Do not place or slide powdercoated parts on concrete or other hard or textured
surface – this will damage the finish causing rust to occur. Use touch-up paint on any gouges in the
finish caused by assembly tools.
Date: April 14, 2015
www.landscapeforms.com Ph: 800.521.2546
Fig. 3 – Recommended setback
from sidewalk
Fig. 4 – Bottom view
Fig. 5 – Base plate section view
Page 1 of 2
