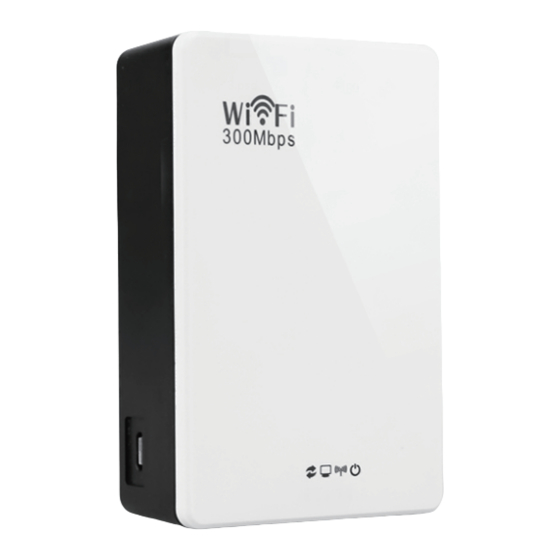

Lafalink PW100 Quick Installation Manual

300Mbps Inwall
Wireless Repeater
Quick Installation Guide
Installation Steps
Hardware Connection
Setting the Computer
Log in the Web Management
Setting the AP
Test the Wireless Network
Install the AP to the Wall
Note:
1. Before Install the AP on the wall, you would
better complete the software setting.
2. Before the setting of the AP, you would better
complete the design of Topology of network
and IP address the devices.
300Mbps Inwall
Wireless Repeater
Quick Installation Guide
Hardware Connection
Hareware Conection
Setting the Repeater through Wireless
Inwall Repeater
Setting the AP using Wireless
Plug the Wireless Repeater to the Outlet, and using wireless to connect the repeater
(SSID： CQ300, Key:66666666), and then log the 192.168.0.1 to setting the Repeater
using the IE Browser.
Setting the Repeater through Wires with RJ45 Cable
Inwall Repeater
Hardware and Operation Mode
LED and Interface
Power Plug
WAN/LAN Ethernet Port
Micro USB Port for Power
WPS Button
System Ethernet WLAN Power
Setting the AP using Wires
Plug the Wireless Repeater to the Outlet, and using wires connect to the repeater
and then log the 192.168.0.1 to setting the AP using the IE Browser.
Setting the Computer
Setting the AP through Wireless
same network segment as AP, subnet mask 255.255.255.0 As belows shows.
2
CQ300 the default Passwords is"66666666"
Operation Mode
Gateway Mode
Gateway
Access Point Mode
Router/Switch
AP Mode AP Mode
Repeater Mode
Router/Switch
AP MODE Repeater MODE
ZHH
Setting the AP through Wires with RJ45 Cable
segment as the AP subnet mask 255.255.255.0 As belows shows.
1
3
