- Page 1 HEXINVERTER.NET presents: AteOhAte: Mutant HiHats a dual analogue hihat module based on the circuitry of the TR-808 ASSEMBLY MANUAL v1.0...
- Page 2 Introduction This manual exists to aid DIYers in creating their own AteOhAte: Mutant HiHats module from a bare PCB acquired at hexinverter.net Please note that this is an advanced project and a lot of mechanical and electronics ability is taken for granted.
- Page 3 Notes About Parts/Substitutions Vactrols aren’t sold by most large electronics distributors, but many small shops still sell them. Look around and you will find some! You can get singles on eBay, even. If you cannot find anything from a shop, post in the Muffwiggler DIY forum and I am sure someone will have one to sell you. I do not have any to sell so please do not ask! You should change R87 to about 590R if you’re using 15V.

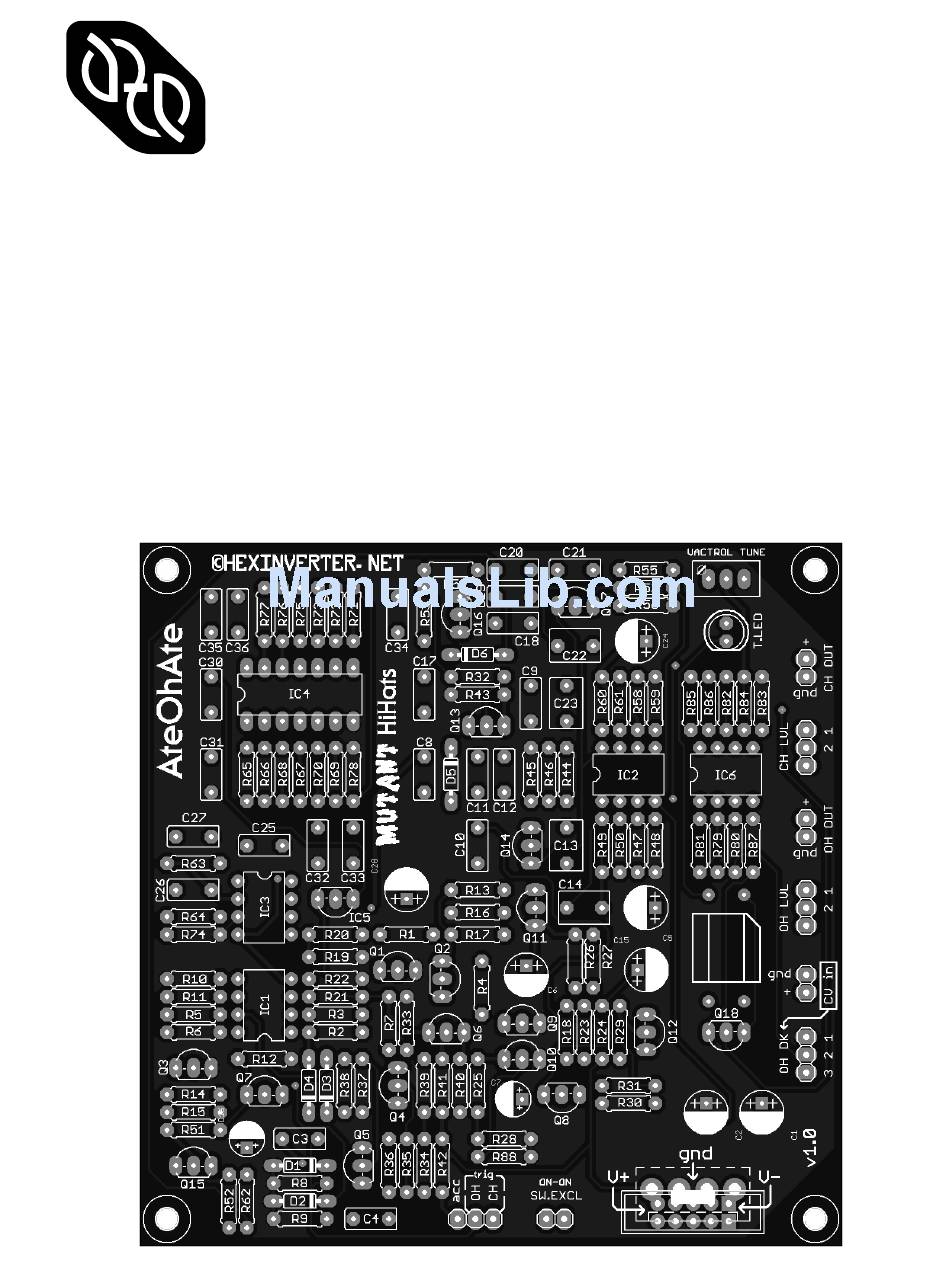

- Page 4 PCB Overlay...
- Page 5 Wiring Diagram...
