Summary of Contents for Muskoka CA17534GB

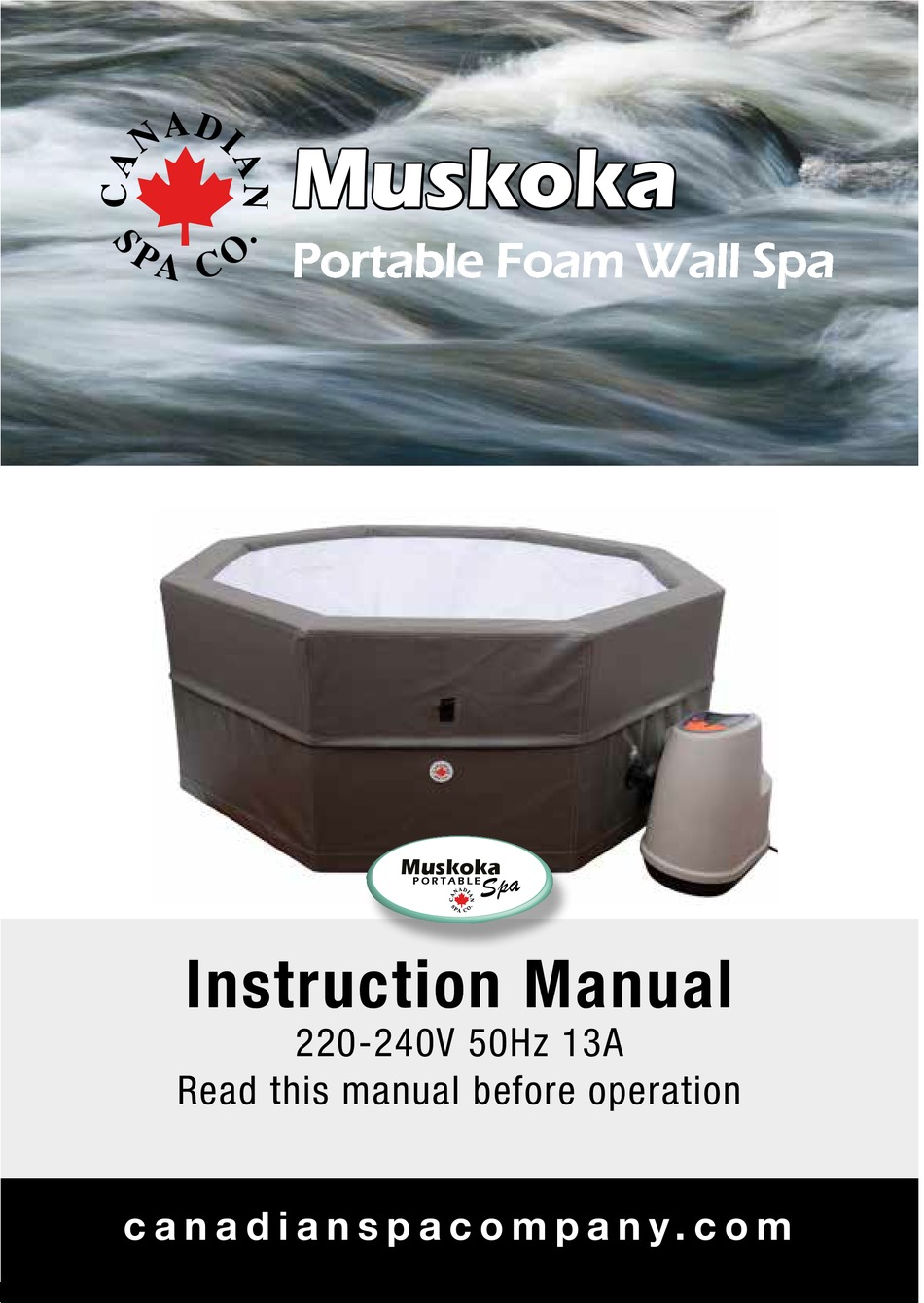

- Page 1 Muskoka Portable Foam Wall Spa Muskoka P O R T A B L E Instruction Manual 220-240V 50Hz 13A Read this manual before operation c a n a d i a n s p a c o m p a n y . c o m...
-
Page 2: Table Of Contents
CONTENTS: IMPORTANT SAFETY INSTRUCTIONS ....PART 6: WATER MAINTENANCE ......IMPORTANT SAFETY INSTRUCTIONS ....PART 7: DRAIN & STORE ........PART 1: PACKAGE LIST ......... PART 8: OPERATION CHECK LIST ......PART 2: SPECIFICATIONS ........PART 9: CONTROL UNIT MESSAGES...... PART 3: CONTROL UNIT FUNCTIONS ...... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: DANGER: Risk of Electric Shock. Install at least 5 feet (1.5 m) from all metal surfaces. DANGER: Risk of Electric Shock. Do not permit any electrical appliances, such as a light, telephone, radio, or television, within 5 feet (1.5 m) of a spa. DANGER: Risk of Accidental Drowning. -
Page 4: Part 1: Package List
PART 1: PACKAGE LIST Muskoka Spa: Take all the spa components out of the box and check your instruction manual that all the following key components are present: (C) Portable Control Unit (A) Foam Walls x 8 (B) Foam Connectors x 16... -
Page 5: Part 2: Specifications
PART 2: SPECIFICATIONS Item: KP-10012 (CA17534GB) - Muskoka Seating Capacity 6 Persons Spa Dimension (inner) 160 x 73cm (63’’ x 29”) Spa Dimension (outer) 184cm x 73cm (73” x 29”) Water Capacity 1230L Voltage 220-240V 50Hz Heater 2040W Massage Jet Pump... -
Page 6: Part 3: Control Unit Functions
PART 3: CONTROL UNIT FUNCTIONS The Portable Control Unit Digital Spa (PCU): Control Centre Air Valve Filter Housing Heater Port Filter Port Jet Port PCU Controls Digital Spa Control Centre: Temperature Mode Button Temperature Increase Button Lock Button LED Display Temperature Decrease Button Jets Button... -
Page 7: Part 4: Installation
NOTE: • The massage system will stop automatically after 30 minutes of operation. You can re-activate the jet function by pressing the ‘JETS’. NOTE: Heater will automatically turn on when jets turn off. • Heating and jet function can not be activated at same time. When heating system is working, pressing ‘JETS’... - Page 8 2. Test RCD & Inflate Lid a) Perform RCD Test WARNING: RISK OF ELECTRIC SHOCK. The RCD plug must be tested before each use. Do not use if RCD test fails. 1. Insert the plug into the power outlet. 2. Press the “RESET“ button, the indicator light will illuminate. 3.
- Page 9 4) Ensure you put the cut out of the drain (fig.b) inside to the left of the three holes. (fig.b) 5) Insert the body of the liner into the centre of the Spa, ensure the holes of the Portable Control Unit foam fit into the holes of the liner and the Drain Hose goes through the hole in the bottom of the Liner.
-
Page 10: Part 5: Usage
5. Install the Filter Cartridge Open the Filter Housing lid. Put the new filter cartridge into the cartridge chamber. Replace Filter Housing Cap and seal by screwing Cap Fitting on. NOTE: Ensure orange ‘o’-ring is placed correctly inside housing. 6. Pre-Fill Check Ensure the drain outlet is extended for future draining/access. -
Page 11: Part 6: Water Maintenance
Cleaning / Replacing Filter Cartridge WARNING: RISK OF ELECTRIC SHOCK. Unplug the PCU before beginning spa maintenance. NOTE: A dirty filter cartridge may contaminate the spa water and cause damage to the heating function. 1. Carefully thread the three plastic caps onto the inlet/outlet ports on inner spa wall. (Ensure the rubber gaskets are in place within the plastic caps) 2. -
Page 12: Part 7: Drain & Store
PART 7: DRAIN & STORE Drain System Locate and remove the external threaded Drain Cap. Attach Drain Hose to Drain Outlet. Locate and remove the stopper on the spa floor to allow water to drain. Dry the Spa and Portable Control Unit After a RCD test, press ‘JETS’... -
Page 13: Part 9: Control Unit Messages
PART 9: CONTROL UNIT MESSAGES CODE Causes Solutions Temperature control 1. Unplug RCD from outlet E1/ E2 sensor short circuit 2. Please contact for service or open circuit 1. Unplug the RCD cable from the outlet High Heat: 2. See Part 8: Spa Operation Check List for possible solutions The water is 3. -
Page 14: Part 10: Troubleshooting
PART 10: TROUBLESHOOTING Problems Causes Solutions Spa Pump • RCD tripped • Power failure Does Not • RCD broken • Reset RCD/check if the cable is rated 2kW / 15A • Check power source • Call for service if it does not reset Operate •... -
Page 15: Spa Accessories
Set of 2 headrests with built-in dual cupholders • Constructed of a durable and comfortable molded foam • Attaches to the rim of the spa Spa Surround Rattan Furniture for Muskoka: All items are customizable to create your own personal spa furniture configuration. - Page 16 INFORMATION For Product Support Visit: support.canadianspacompany.com UK Office: North America Office: German Office: Asia Office: Canadian Spa Company Canadian Spa Company Lützerathstrasse 127 Canadian Spa Company Canada House 1283 Cornwall Rd 51107 Köln No.460 Lanxue Road,Huanglou, Salbrook Road Oakville, ON L6J 7T5 T:0049-221-94655344 Pudong Area Shanghai,P.R.China Salfords, Redhill...
