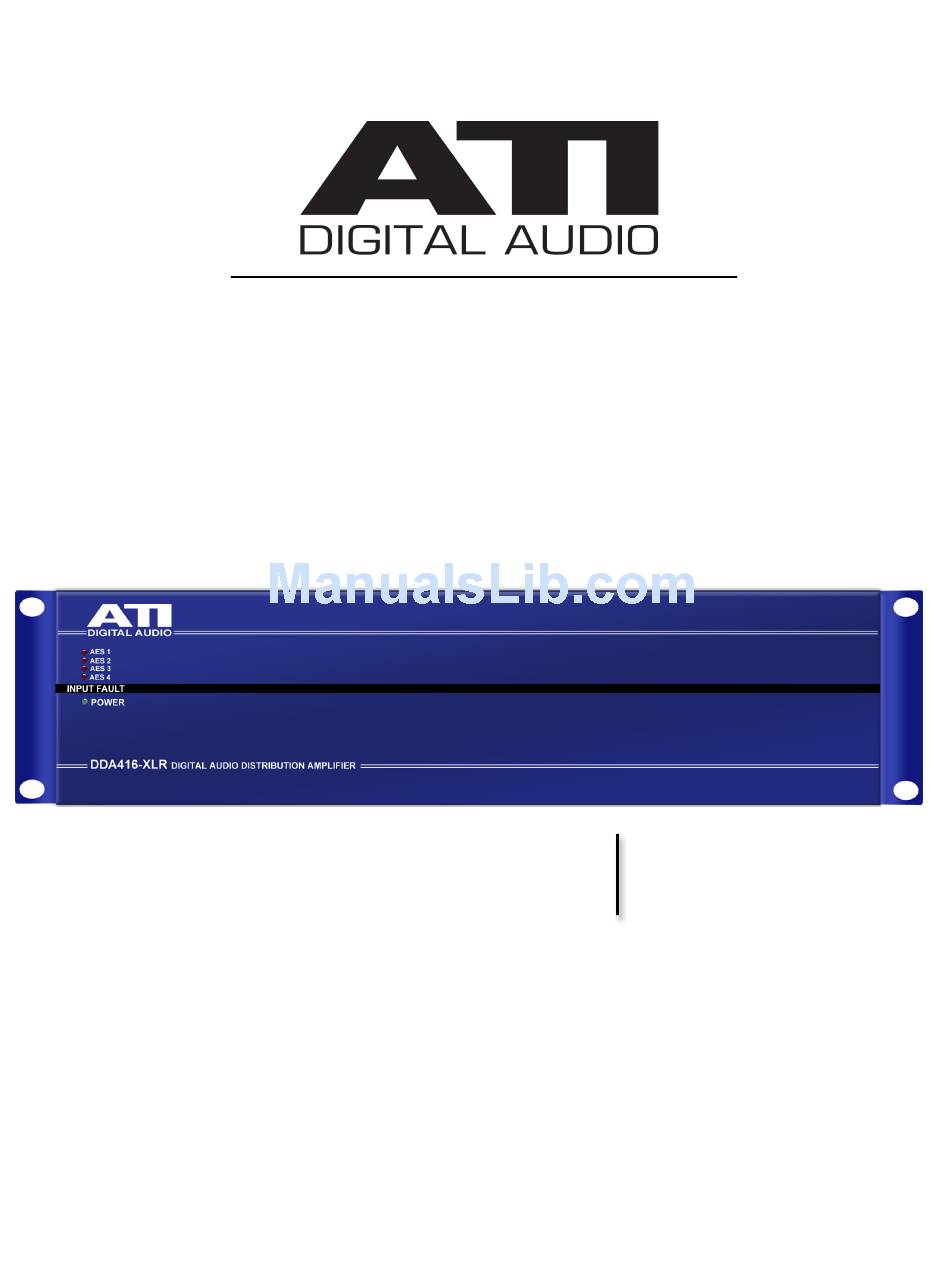

- Page 1 Series 3 Ultra-Low Jitter 192 kHz Series 3 Quad 1x4 AES/EBU Distribution Amplifier DDA416-XLR USER GUIDE Day Sequerra │ 154 Cooper Rd. #902 │ W. Berlin, NJ 08091 │ Voice 856-719-9900 │ sales@daysequerra.com │ www.atiaudio.com ...
-
Page 2: Table Of Contents
All XLR connectors are on rear panel; no breakout cables required • All rights reserved DaySequerra Corporation © Copyright 2013 All logos and trademark used herein are the property of their respective owners. Specifications subject to change. DDA416-XLR Manual DDA416-XLR Revision A. ... -
Page 3: Safety Information
Part 15 of the FCC Rules. CE Declaration of Conformity ATI Audio Inc., West Berlin, New Jersey 08091 USA, declares that all Model DDA416-XLR units are in conformity with the following EU regulations and amendments: Low Voltage (LVD) 73/23/EEC and 93/69/EEC... -
Page 4: Air Temperature & Humidity
XLR connectors, and no special breakout cables are required. The DDA416-XLR features flexible signal routing. Rear panel accessible DIP switches let you assign each bank of 4 outputs to any of the 4 inputs. This lets you configure the DDA as a Dual 1X8 or a 1X16. Other asymmetrical routing combinations, such as 1X4 plus 1X12, are also possible. -
Page 5: Block Diagram
D DA416-‐XLR M anual ... -
Page 6: Front Panel Display & Switches
AES/EBU Input 4 Provides a balanced, transformer isolated 110 ohm AES/EBU input that may be routed to Outputs 1 – 4, 5 – 8, 9 – 12 and/or 13 – 16 via the configuration DIP switches. DDA416-XLR Manual ... -
Page 7: Configuration Dip Switches
Configuration DIP Switches Provides routing for signal flow in the unit. See the DIP Switch Routing Table for settings: SOURCE SELECTION FOR AES/EBU OUTPUTS 1, 2, 3 & 4 Selected Source → INPUT 1 INPUT 2 INPUT 3 INPUT 4 Down Down Switch 1... -
Page 8: Installation
XLR inputs require special controlled impedance, 110 ohm, low loss, foil shielded, twisted pair cables. Standard audio cable is not recommended except for runs of only a few feet. Belden and most other cable manufacturers offer special digital audio cabling for this application. Keep cable length as short as possible. DDA416-XLR TECHNICAL SPECIFICATIONS INPUTS CONNECTORS... - Page 9 One Year Limited Warranty DaySequerra warrants ATI products to be free from defects in materials and workmanship to its original owner for one (1) year from the date of purchase. DaySequerra will repair or replace such product or part thereof that upon inspection by DaySequerra, is found to be defective in materials or workmanship subject to conditions contained herein.
