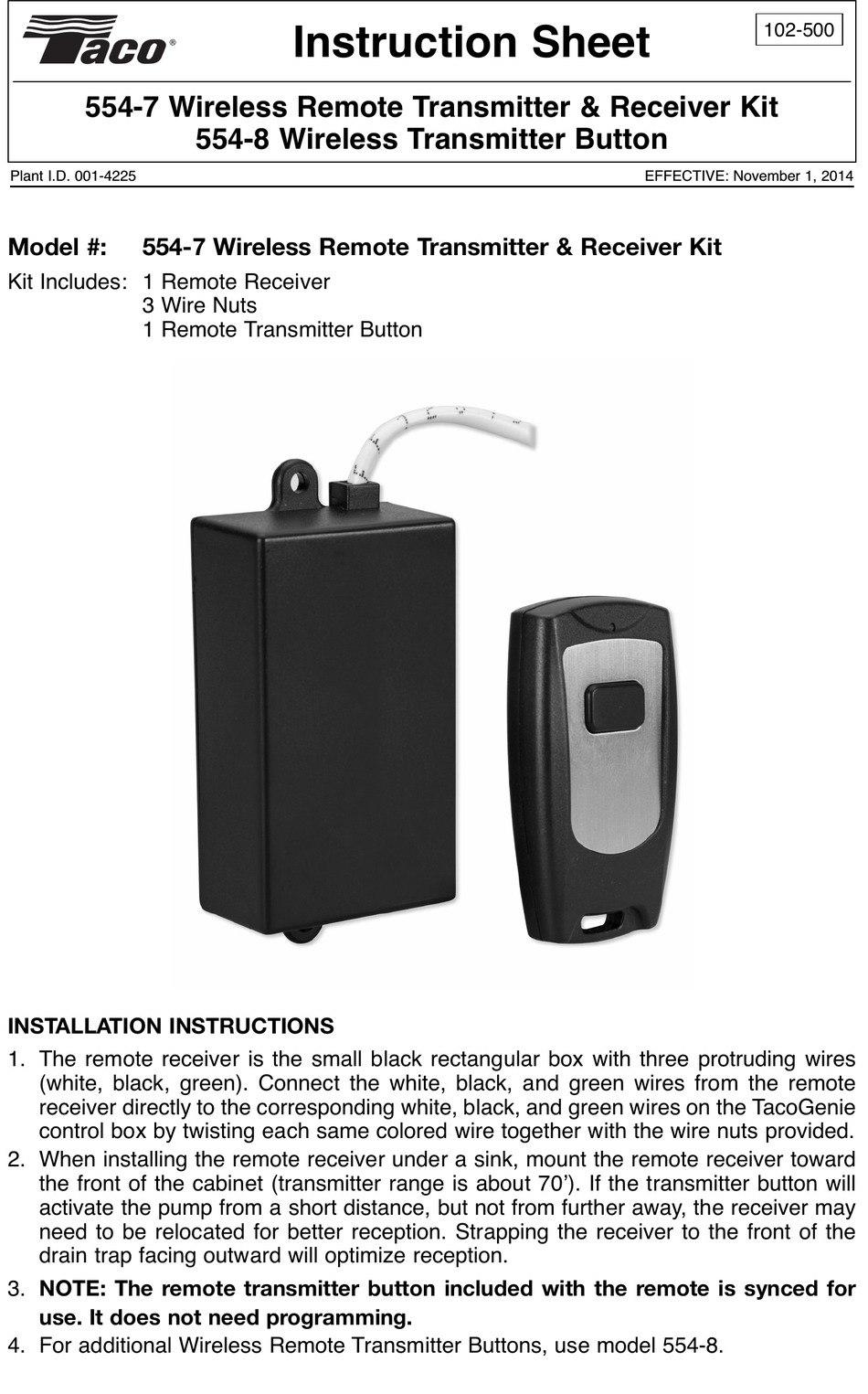

Taco 554-7 Instruction Sheet

554-7 Wireless Remote Transmitter & Receiver Kit
Plant I.D. 001-4225
Model #: 554-7 Wireless Remote Transmitter & Receiver Kit
Kit Includes: 1 Remote Receiver
3 Wire Nuts
1 Remote Transmitter Button

INSTALLATION INSTRUCTIONS

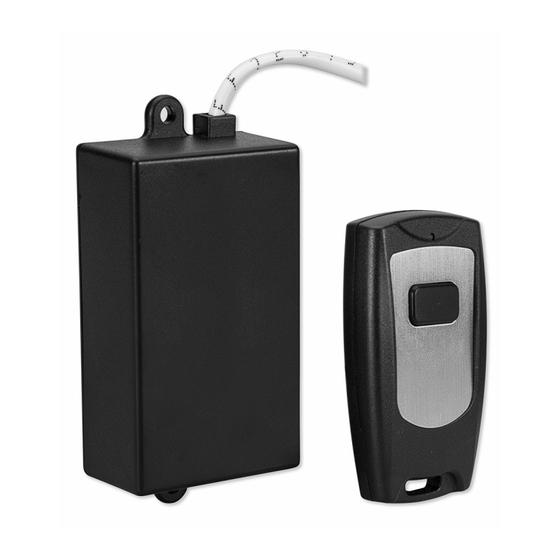

1. The remote receiver is the small black rectangular box with three protruding wires
(white, black, green). Connect the white, black, and green wires from the remote
receiver directly to the corresponding white, black, and green wires on the TacoGenie
control box by twisting each same colored wire together with the wire nuts provided.
2. When installing the remote receiver under a sink, mount the remote receiver toward
the front of the cabinet (transmitter range is about 70'). If the transmitter button will
activate the pump from a short distance, but not from further away, the receiver may
need to be relocated for better reception. Strapping the receiver to the front of the
drain trap facing outward will optimize reception.
3. NOTE: The remote transmitter button included with the remote is synced for
use. It does not need programming.
4. For additional Wireless Remote Transmitter Buttons, use model 554-8.
Instruction Sheet
554-8 Wireless Transmitter Button
102-500
EFFECTIVE: November 1, 2014
