VES EURO100 Original Instructions

Original Instructions : Installation, Operation & Maintenance Manual
ID Ref 913b • August 2014
EURO100/150
In-line Extract Fan
VES Andover Ltd Eagle Close Chandlers Ford Ind. Est Eastleigh Hampshire SO53 4NF
Tel: 08448 15 60 60 Fax: 02380 261204 e-mail: vesltd@ves.co.uk web: www.ves.co.uk
Original Instructions : Installation, Operation & Maintenance Manual
IMPORTANT
This manual must be read in full before Installation, Operation and
Maintenance of the units supplied. Please ensure that this document is
passed to the end user. This manual forms an integral part of the product
and should be kept for the working life of the product. Additional copies of
this and supporting documents are available by contacting VES or by
visiting www.ves.co.uk and following the 'Download O & M's' link.
The following symbols used within this document refer to potential dangers
or advice for safe operation
Indicates hazards associated with electric current and high
voltages
Indicates hazards that require safety advice for personnel
and/or potential unit/property damage
Indicates important information
Unit Description
The EURO duct mounted
details please see the unit specification later in the document.
Immediately upon receipt of your EURO fan, check there is no damage to
the fan, and that the four fixing screws and matching wall plugs are
included within the ancillary bag.
In the event of any damage having occurred or if any item is found to be
missing, it is essential to inform VES Andover Ltd. within 7 days of delivery
quoting sales order number and the unit type. After this period, VES would
be unable to accept any claim for damaged or missing goods.
Part Number
EURO100............................................Inline duct mounted fan Ø100
EURO150............................................
s
IMPORTANT
Before attempting to carry out any work on our units, all accompanying
documentation including warning labels on the unit must be referenced.
Should it be necessary to remove any component ensure that these are
secured into position once reinstalled. It is critical that after any
maintenance work has been conducted that all components removed
/replaced be refitted correctly by a competent engineer.
inline fan for extract applications; for full unit
Description
" Ø150
Original Instructions : Installation, Operation & Maintenance Manual
IMPORTANT
EURO fans should be installed in accordance with current IEE Regulations
BS7671 and the appropriate Building Regulations.
IMPORTANT
For fan positioning refer to Building Regulation for specific requirements.
If installed in a room containing a fuel burning device without a balanced
flue, it is the installers responsibility to ensure that is enough replacement
air to prevent any fumes being drawn back down the flue when the fan is
operating at full speed.
Euro fans are only suitable for mounting on the horizontal plane (flat), not
vertically.
The fan should be installed with an appropriate duct kit and consideration
must be given to ensure that access to all moving parts of the fan are
restricted when the fan is in use.

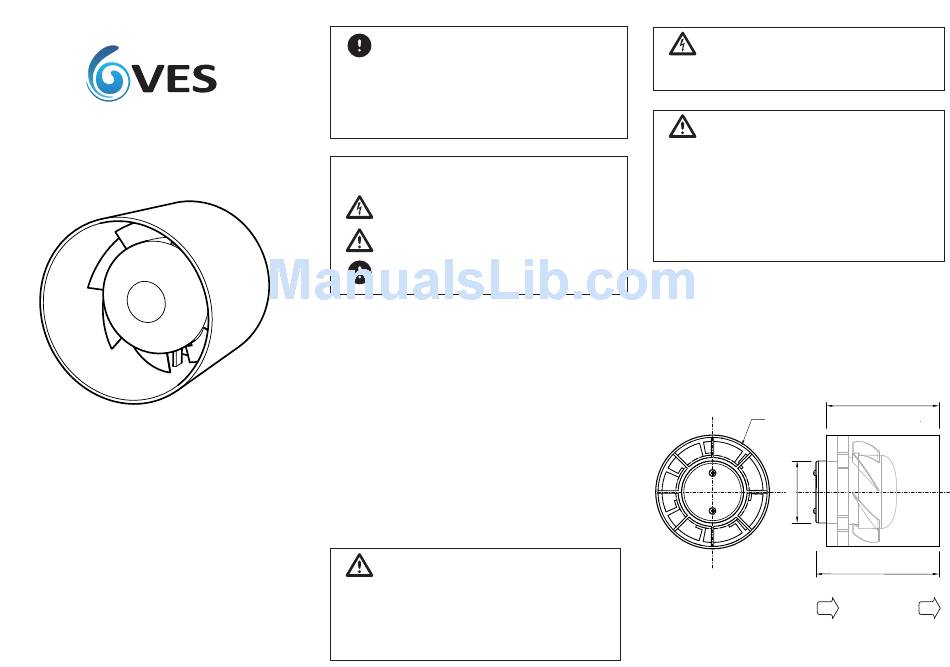

Dimensions
(mm) Ø A
EURO100 98 98
EURO150 148 92.5
Ø
C
B C
98 55
111 55
A
B
AIRFLOW
