- Page 1 Switcher User's Guide Model: 9138H/9116H www.seawit-sales.com szjkyhmd@sina.com...
-
Page 2: Table Of Contents

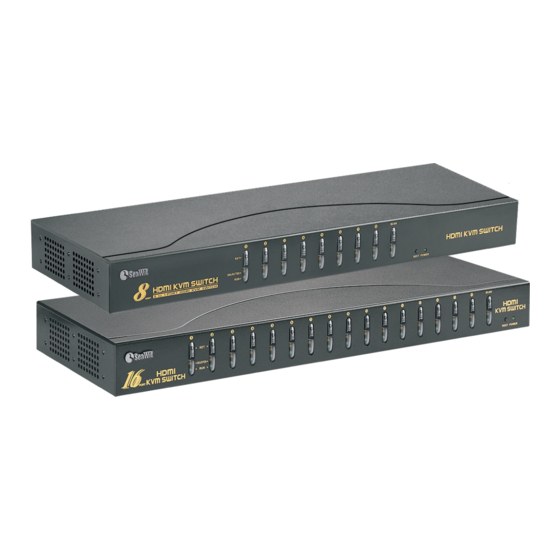

9138H/9116H switch is a 8 in 1 out/ 16 in 1 out multi- functional switch, maximum support 1080p resolution, support cross-system operation, and support EDID (extended display... -
Page 3: Package Included
Package Included 9138H：KVM Switch + Instructions + Service Card + 2 HDMI Cables + 2 USB Cables + Power Adapter + Mouse +Keyboard + 2 Metal Rack 9116H ：KVM Switch + Instructions + Service Card + 2 HDMI Cables +... -
Page 4: Switch Panel Instruction
Switch Panel Instruction 9138H USB keyboard HDMI IN 8 HDMI IN 6 HDMI IN 4 HDMI IN 2 ON/OFF HDMI IN 7 HDMI IN 5 HDMI IN 3 HDMI IN 1 HDMI out USB mouse USB port USB IN 8... -
Page 5: 9138H / 9116H Connection Diagram
Connection Diagram 9138H 9116H... -
Page 6: Installation Precautions
Installation Precautions Before connecting the switch, please connect the mouse and keyboard used to switch to each hosts that you want to connect with the switch first, so that to ensure that the mouse and keyboard could work normally on each computers. (Take 4 port switch as an example）... - Page 7 HDMI OUT HDMI 4 HDMI 3 HDMI 2 HDMI 1 DC5V USB 4 USB 3 USB 2 USB 1 Please according to the connection diagram to connect all the equipments. Then connect with the power and power HDMI 4 HDMI 3 HDMI 4 HDMI 3 HDMI 4...
-
Page 8: Hot-Key Setting
Hot-key Setting The default hot-key is right 【 Ctrl】 key. When the right 【 Ctrl】 conflicts with other function keys, the hot-key can be reset to 【Num lock】 key, 【Scroll Lock】 key or left 【Ctrl】 key. For example: Double-click right 【 Ctrl】 key + 【 Num Lock】 + 【... - Page 9 All hot-key combinations and their functions are shown as the following form: (The default hot-key is right 【 Ctrl 】 key.) Port Switch: The audio, video, keyboard and mouse will be switched Right 【Ctrl】+ Right 【Ctrl】 to the PC of the corresponding port number (the number you press) which + number +【Enter】...
-
Page 10: Switch Method
3, The Sea Wit KVM switch does not support dormancy awakening function. If the computes have gone to sleep, please press the power button of the computers to wake up the computers. - Page 11 The green light lights up means the USB-B cables is working fine. Scan button lights up means the automatically scan function is on Power button lights up means the power is on. 1, Panel Switch： A, Manual Panel Switch: Switching by pressing the panel switch button to the corresponding connected device, the numbers of switch button are corresponding to the numbers of connected hosts.
- Page 12 2, Keyboard Switch and Operation: A. Manual Keyboard Switch: Double-click right [Ctrl] key---Press number key (1 to 16)---Press [Enter] key Right [Ctrl] + Right [Ctrl] + Number + [Enter] The KVM switch has the function of simultaneously switching keyboard, mouse, audio and video signal. As shown as the figures: 1...
- Page 13 B. Automatic Keyboard Switch： Press Right <Ctrl> + Right <Ctrl> + <S> + <Enter> enable the automatic scan function. (The default interval time is 8 seconds) Note: Press Right <Ctrl> + Right <Ctrl> + <S> + Time + <Enter> to set the interval time of the automatic scan, the interval time can be set from 8 to 999 seconds.
-
Page 14: Specification
Auto detection function: The KVM switch can automatic sequential scan all of the active connected devices. The default setting of auto detection function is off. E. Reset by Keyboard: Right <Ctrl> + Right <Ctrl> + <R> + <Enter> Reset KVM System: To solve the malfunction of the keyboard during the using, which is like the reset function of the switch panel. -
Page 15: Frequently Asked Question
VGA to HDMI converter. Question 4: What can I do if the mouse and keyboard cannot work after connecting with 9138H/9116H? 1, If the mouse and keyboard are new one, please respectively connect the mouse and keyboard to each computer once in order to ensure that the driver of them are installed in the each computer. -
Page 16: Contact Information
Contact Information Dear Customer, Sea Wit provides1-month package replacement, 1 year after-sales and lifetime technical team support for all products, if you encounter any problems in installation process, please feel free to contact us via Amazon email or our support email ( szjkyhmd@sina.com), we will be reply you within 24 hours.
