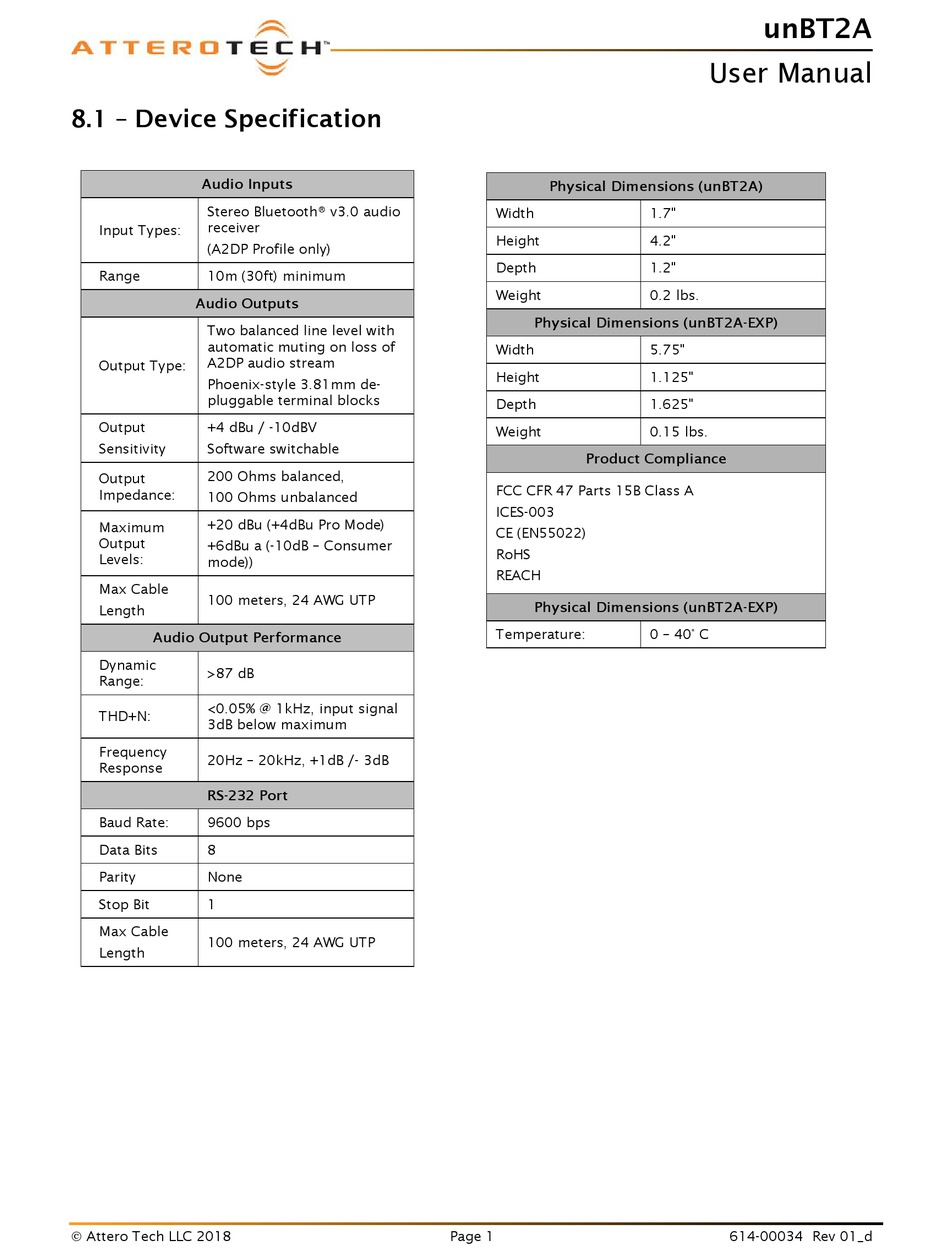

8.1 – Device Specification
Audio Inputs
Stereo Bluetooth® v3.0 audio
receiver
Input Types:
(A2DP Profile only)
Range 10m (30ft) minimum
Audio Outputs
Two balanced line level with
automatic muting on loss of
A2DP audio stream
Output Type:
Phoenix-style 3.81mm de-
pluggable terminal blocks
Output +4 dBu / -10dBV
Sensitivity Software switchable
200 Ohms balanced,
Output
Impedance:
100 Ohms unbalanced
+20 dBu (+4dBu Pro Mode)
Maximum
Output
+6dBu a (-10dB – Consumer
Levels:
mode))
Max Cable
100 meters, 24 AWG UTP
Length
Audio Output Performance
Dynamic
>87 dB
Range:
<0.05% @ 1kHz, input signal
THD+N:
3dB below maximum
Frequency
20Hz – 20kHz, +1dB /- 3dB
Response
RS-232 Port
Baud Rate: 9600 bps
Data Bits 8
Parity None
Stop Bit 1
Max Cable
100 meters, 24 AWG UTP
Length
 Attero Tech LLC 2018
Physical Dimensions (unBT2A)
Width
Height
Depth
Weight
Physical Dimensions (unBT2A-EXP)
Width
Height
Depth
Weight
Product Compliance
FCC CFR 47 Parts 15B Class A
ICES-003
CE (EN55022)
RoHS
REACH
Physical Dimensions (unBT2A-EXP)
Temperature:
Page 1
unBT2A
User Manual
1.7"
4.2"
1.2"
0.2 lbs.
5.75"
1.125"
1.625"
0.15 lbs.
0 – 40° C
614-00034 Rev 01_d
