Viking DLE-200B Product Manual

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
Ideal for Ringdown Applications and Demos
The DLE-200B Line Simulator produces two way
communication between
products such as modems, fax machines, Key
Systems, PABX's and standard single line
telephones. The Line Simulator can also provide
sales people with a cost effective, easy to use
method of conducting on site demonstrations,
eliminating the need to locate phone lines and
disrupt the customer's phone service.
The DLE-200B Line Simulator provides precise
dialtone, DC talk battery and standard or distinctive
ringing. The unit also provides a CPC break on
hang up.
Features
• Compatible with fax machines and modem
speeds up to 28.8 kbps
• Precise dial tone
• Switch selectable ring cadence
• Provides CPC breaks after hang-up on either
port
• Switch selectable audio attenuation
• Can provide 2 seconds of precise dial tone
before ringdown
• Provides ring back signal to calling device
• One or two way ring down capability
• Switch selectable ring count
• Ring down and dial tone off mode (ideal for
prison phone communications, etc.)
• 32VDC talk battery
www.vikingelectronics.com
Information: 715-386-8861
PRODUCT MANUAL
Two Way Phone Line Simulator
standard telecom
• Dedicated point-to-point communications
(ringdown circuits)
• Program Telecom products without a phone
line
• Connecting dictation equipment to Electronic
Key Systems
• Intersystem TIE line
• Courtesy phones
• Demonstrating telecom equipment at
tradeshows, meetings, etc.
• Connecting modems together
• Prison phone communications
• Programming PC based voice products
Power: 120V AC/13.8V AC 1.25A, UL listed adapter
provided
Power Supply Current Draw: 600mA maximum
Dimensions: 4.75" x 2.75" x 1.38" (120mm x 70mm x
35mm)
Shipping Weight: 1.59 lbs (.72 kg)
Environmental: 32° F to 90° F (0° C to 32° C ) with 5%
to 95% non-condensing humidity
Ringer Output: 2.0 REN load maximum
Talk Battery: 32V DC
Dial Tone Level: -20dBm with 600 ohm load
Loop Length: 2.6 mi (4.2 km ) maximum - 24 AWG
twisted pair
Maximum Data Speed: 28,800 bps
CPC Break Time: 2 seconds or 150 msec (selectable)
Connections: (2) RJ11 jacks

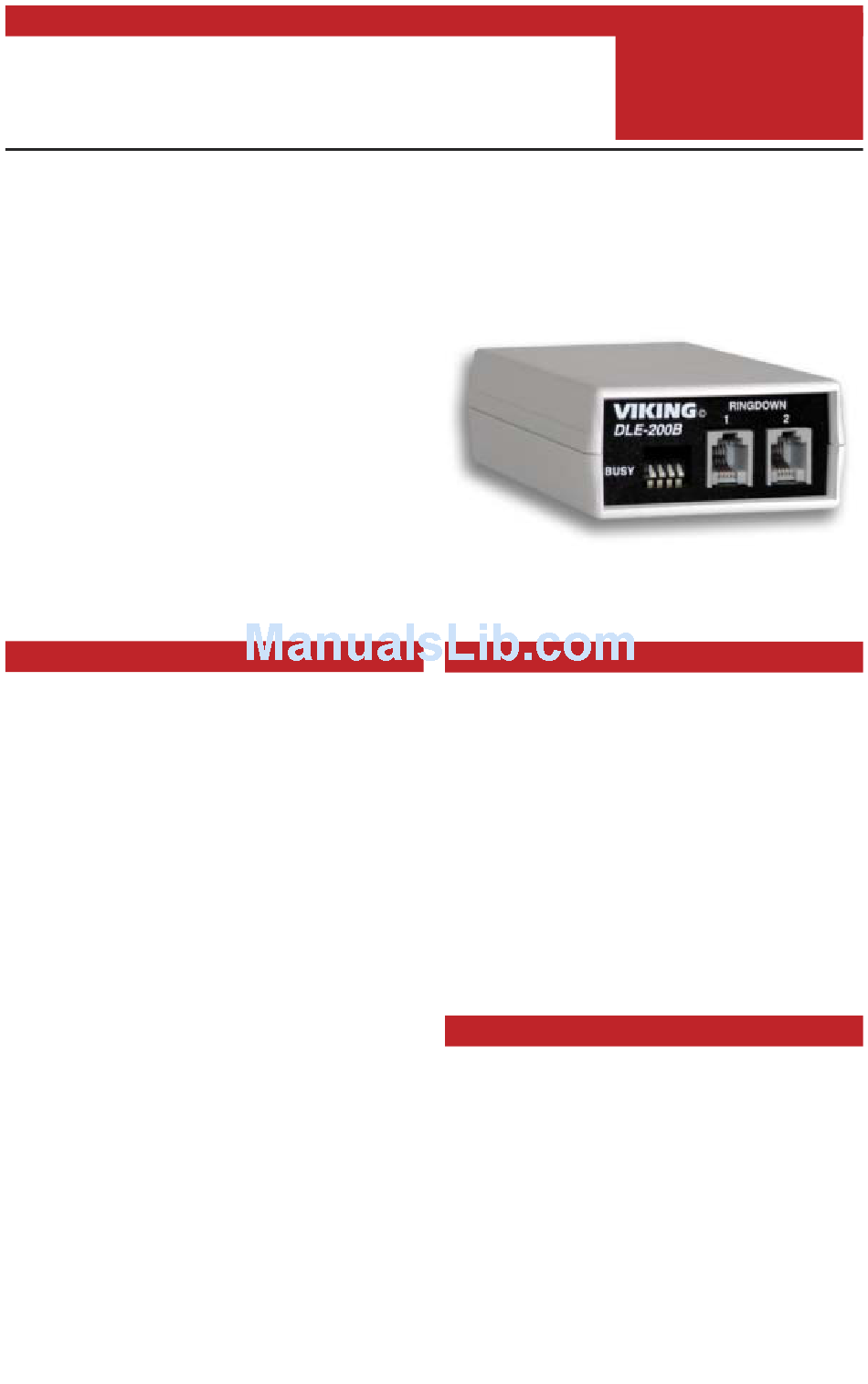

DLE-200B
Two Way Phone
Line Simulator
April 3, 2018
