STYLE 3019/3015/3004
OMNI-DIRECTIONAL
Congratulations!

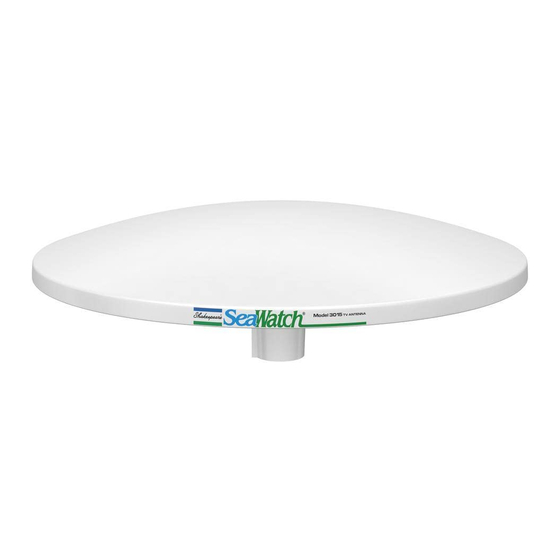

You have chosen the Shakespeare Style 3019, 3015 or 3004 omni-directional TV/FM
antenna which bring the comfort of home onto the water, Anywhere!
By carefully following the installation and connection instructions, you will receive years of superior performance
from your new Shakespeare antenna.
Special note:
Please familiarize yourself with the assembly and installation of the antenna by fully
reading and understanding these instructions before you begin.
Parts List
1 3019/3015/3004 Antenna
1 75Ω RG59 Cable x2 F-Connectors
1 1.5m Adapter Cable – fitted with F-Connector to TV
1 DC Wire
1 Power Supply (12v and 24v)
1 IEC-F Connector Boot
1 Power Adapter
2 Screws
Antenna Mounting Instructions
Step 1
Mount antenna on a marine extension mast,
standard 1in-14 thread marine antenna mount of
sailboat mounting bracket as illustrated below.
Figure 1
4008 Marine Extender
MARINE TV/FM ANTENNA
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE POWER SUPPLY SECTION OF
THIS APPLIANCE TO RAIN OR MOISTURE.
When attaching the antenna to the antenna mount,
be very careful to start threads properly before
screwing antenna into position. If antenna mounting
socket and antenna mount are not aligned correctly,
the antenna mounting socket threads will become
crossed and eventually strip.
4365 Straight Mount
Some Modification May Be Needed
WARNING!
Caution!
4366 Sailboat Mounting Bracket
