RocketFish RF-ANT50UD Quick Setup Manual

PACKAGE CONTENTS

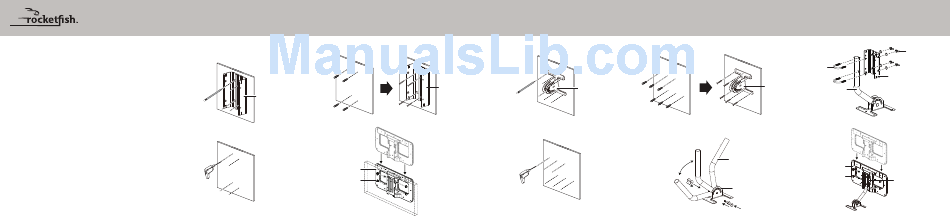

MOUNTING YOUR ANTENNA

Stationary Installation
• Digital outdoor antenna • Power inserter
1 Use the base plate to mark the drilling positions.
• Coaxial cable • AC Adapter
• Installations kits for wall and pole mounting
• Quick Setup Guide

WARNING: INSTALLATION OF THIS PRODUCT NEAR POWER LINES

IS DANGEROUS. FOR YOUR SAFETY, FOLLOW THE INSTALLATION
DIRECTIONS.

MOUNTING TOOLS

If mounting to a wall, roof, or another surface, you'll need a:
• Drill with 5/16" drill bit • Hammer
2 Use an electric drill with a 5/16" drill bit to drill four holes that are 1.8 in. deep, then clean the
• Phillips screwdriver • Pen or pencil
holes.

FEATURES

• 60-mile range for superior reception, even in difficult locations
• Amplifier included to boost weak signals from far away
• Designed for outdoor use—resistant to summer and winter elements
• Full kit of installation parts included for mounting to exterior walls, roofs, attics, poles, or
other surfaces
• Works with 4K TVs
Before using your new product, please read these instructions to prevent any damage.
3 Use a hammer to insert the wall anchors (4) into the holes, then attach the base plate to the
wall with the large screws (4).
Wall
Wall
Base plate
4 Place the antenna on the base plate, then fasten with the plastic cap screws (4).
Wall
Antenna
Plastic cap
screws Wall
Flexible Installation
1 Use the pedestal to mark the drilling positions.
Wall
Wall
Base plate
Pedestal
2 Use an electric drill with a 5/16" drill bit to drill six holes that are 1.8 in. deep, then clean the
holes.
Wall
RF-ANT50UD,
3 Use a hammer to insert the wall anchors (6) into the holes, then attach the pedestal to the 5 Attach the base plate to the stand tube with U bolts (2), washers (4), and wing nuts (4).
wall with the large screws (6).
U bolts
Wall Wall
Pedestal
6 Place the antenna on the base plate, then fasten with the plastic cap screws (4).
4 Place the stand tube into the pedestal, then adjust its position and attach with the
screws (2) and hex nuts (2).
Stand tube
Pedestal
QUICK SETUP GUIDE
Long-range Outdoor Antenna
Wing nuts
Base plate
Stand tube
Antenna
Plastic cap
Base plate
screws
