7 Loc-5Tx Transmitter

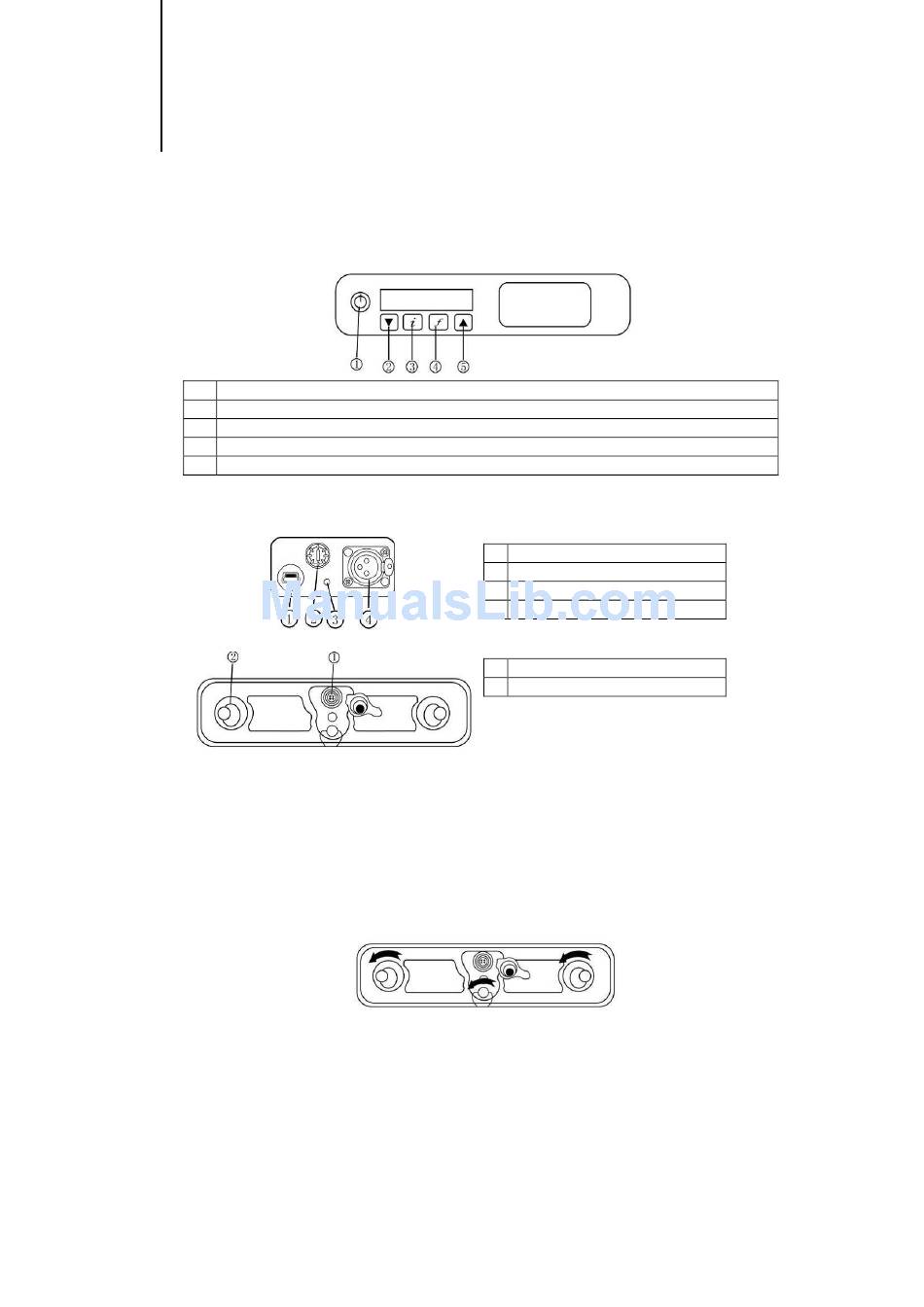

7. Loc-5Tx Transmitter
7.1

Pushbutton

1 On/Off Control
2 Output Decrease
3 Information (Volume, mA, Volts, Ohms)
4 Frequency Select
5 Output Increase
7.2

External Connectors

7.3

Transmitter Battery

In most markets the transmitter is shipped with alkaline batteries (8 x D cells) unless rechargeable batteries
are specified. Batteries are fitted into quick release trays – the alkaline is an open pack, to enable the
batteries to be changed. The rechargeable pack is a sealed unit containing Ni-MH (Nickel Metal Hydride)
batteries. These packs can only be fitted in a manner to ensure that the alkaline batteries cannot be
inadvertently charged.
7.3.1

Removing the Battery Tray

To remove the tray, operate the three ¼ turn fasteners in an anti clockwise direction. This should now release
the tray which can then be slid out from the transmitter body. Be careful not to allow the batteries to fall from
the tray as it is removed from the body.
1 Mini USB Port
2 Output Fuse
3 Speaker
4 Output Connection
1 Battery Charging Socket & DC Input
2 ¼ turn fasteners
Page 43 of 72
