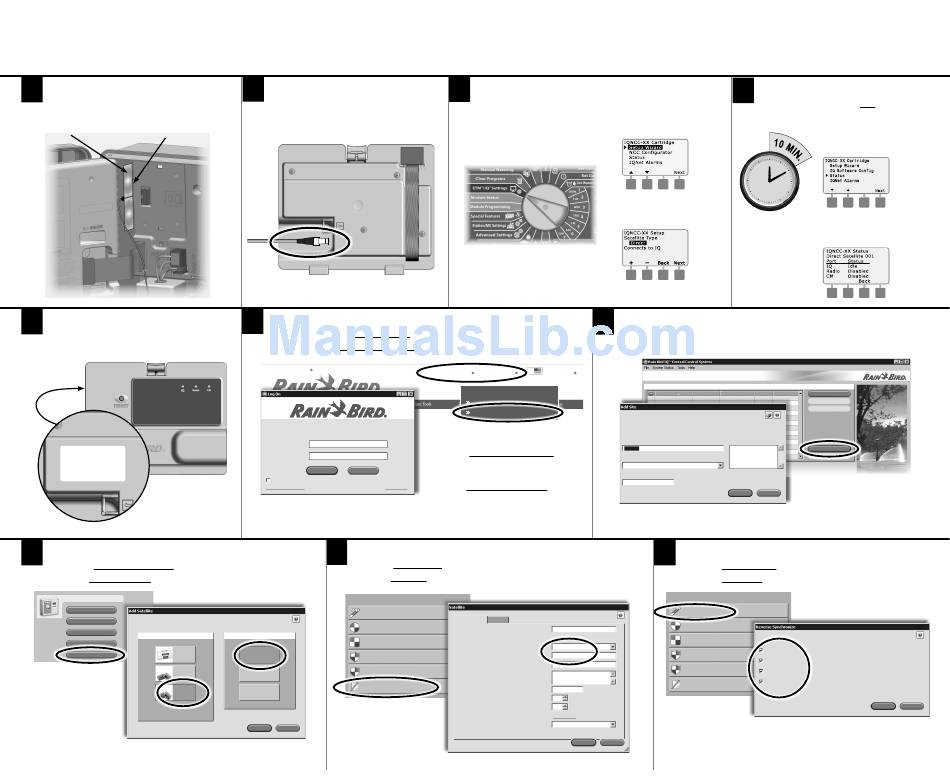

Install Internal Cellular Antenna
• (Plastic case cabinet only)
3G CELLULAR
BACKPLANE
ANTENNA
5
Get IP Address from the Sticker
on the Back of the Cartridge
IQ-NCC-3G
IQ
TM
3G Cellular Network
Communications Cartridge
IQ46136
NCC 2947830927
IP Address: 10.84.177.16
SIM: 9458367383094628
8
Select Add Satellite
A
Choose ESP-LX Controller Type.
B
Select Direct IQNet Type.
Satellites
Program...
Dry Run...
Manual Operations...
1. Choose Satellite
Configure...
Add...
LXD
LXME
LXMEF
IQ3G-USA Cellular Network Communication
Cartridge Installation & IQ-Cloud Configuration
2
Cellular Antenna Connection
• IQEXTANTGP external cellular
antenna required for metal cabinets
6
Go to www.rainbird.com/iq
A
New users: Select IQ-Cloud Sign-up.
B
Existing users: Select IQ-Cloud Login.
IQ-Cloud Support
(800) 254-0692 | iqcloudsupport@rainbird.com
Rain Bird IQ Central Control System
TM
User Name
Password
Log On
Cancel
Show Quick Start
I forgot my password
What's New
9
Select Configuration and Stations
A
Select IP Connection type.
B
Enter IP Address from cartridge sticker.
Direct Satelitte Tasks
Auto Configure
Master Valves
2. Choose IQNet Type
Sensors
Direct
FloManager
FloWatch
Server
Edit Configuration and Stations...
Client
OK
Cancel
For Additional Information
See IQ-NCC Cartridge Installation and
Operations Guide for IQNCCEN Ethernet
and IQNCCRS RS-232 Cartridge Installation
and Configuration Instructions.
3
Configure Cartridge
A
• See User-manual for Server/
Client Configurations
g
Turn the controller dial
to ETM/IQ Settings
B
7
EN
IQ-Cloud Sign Up
IQ-Cloud Login
What's New
IQ-Cloud Login
Login
Configure this computer
C
Select Configure this computer for
first time IQ-Cloud connection on a
new computer.
D
Enter User Name & Password to
Logon to IQ-Cloud.
Configuration Stations
Satellite Name:
Satellite 001
Type:
LXME
Connection Type:
IP Connection
Phone Number / IP Address
10.84.177.16
Port:
5005
Description:
Dry Run Warning for Max Flow:
0 gal/min
Max. Satellite Irrigation SimulStations:
1
Max. Satellite Non-Irrigation SimulStations:
1
PIN-Codes:
Unprotected
Weather Source:
OK
Cancel
Go to www.RainBird.com/
IQ-Cloud Support
IQ for installation and
(800) 254-0692
configuration instructions
IQCloudSupport@RainBird.com
with IQ-Desktop and IQ-
www.RainBird.com/IQ
Enterprise Software.
4
Verify Cellular Connections
The IQ Settings main menu
• IQ port status should be IDLE
is displayed. Use the UP or
DOWN arrows to select Setup
Wizard; press Next.
The Setup - Satellite Type
screen is displayed. Use + or -
to select Direct' press Next.
NOTE:
Cellular connection
may take 10 minutes
or more.
Select Add Site
Select One or More Sites...
Site Name
Out of Sync Satellite Changes
Alarm
Satellites Off
Site Name
Description
Site 01
Time Zone
(UTC-8:00) Pacific Time (US and Canada)
Postal Code
OK
Cancel
10
Reverse Sync Data from Controller
A
Select Auto Configure.
B
Check All Options.
Direct Satelitte Tasks
Auto Configure
Master Valves
Sensors
Modules
FloManager
Configuration
FloWatch
Programs
Learned Flow
Edit Configuration and Stations...
Rain Bird Global Service Plan (GSP)
(866) 477-9778
www.GSPSupport@RainBird.com
A
The IQ Settings main menu is
displayed. Use the UP or DOWN
arrows to select Status; press
Next.
B
The Satellite Status screen is
displayed. Current status of IQ,
Radio and CM ports are shown.
Auto Contacts...
Synchronize
Retrieve Logs...
Add Site...
Edit Site...
Detect Modules automatically and update IQ
Upload Satelitte Configuration into IQ
Upload Satelitte Programming into IQ
Retrieve Learned Flow Data into IQ
OK
Cancel
t
2018 Rain Bird Corporation
Registered trademark of Rain Bird Corporation
P/N: 690654-01 Rev. 6/18 D41259
