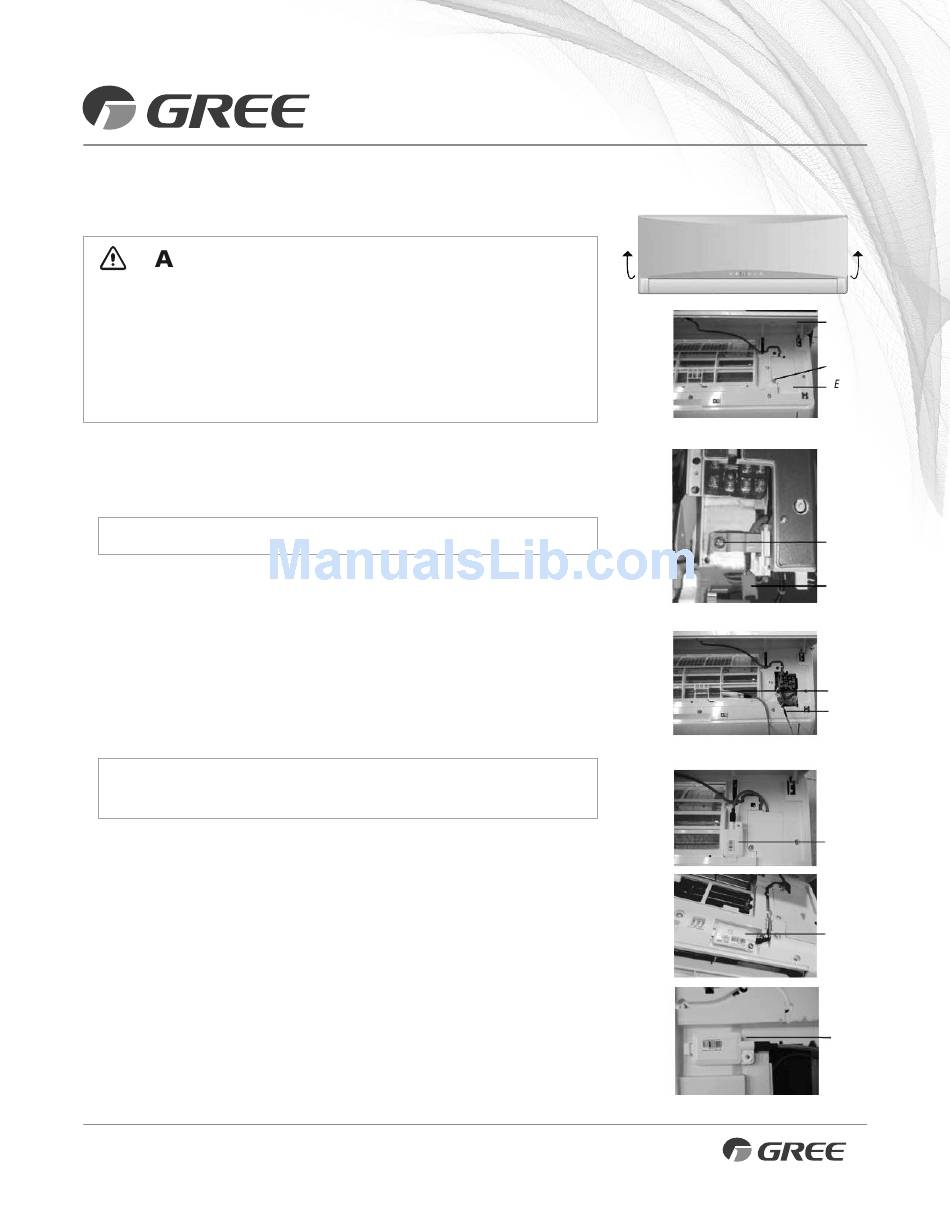

Gree WSBEC02 Instructional Manual

Module Installation

W RNING –
Failure to follow this warning could result in personal injury or death.
Before installing, servicing or modifying the system, the main electrical disconnect
•
switch must be in the OFF position. There may be more than one disconnect switch.
Lock out and tag all switches with a warning label.
Installation must be performed by qualified professionals. Otherwise, it may result
•
in personal injury or damage.
STEP 1.
Open the front panel of indoor unit
Remove screw to access the electrical box.
NOTE: Actual product may differ from images shown; please refer to actual products.
STEP 2.
Remove the electrical box cover
Locate Wi-Fi module connector and wire. (The Wi-Fi connector will be the same
color as the connector on the Wi-Fi module.)
STEP 3.
Remove the wire clip
Route Wi-Fi module wire into electrical box and connect to the unit's Wi-Fi connector.
NOTE: The Wi-Fi module wire must be routed through the wire channel, otherwise
the electrical box cover will not close properly.
STEP 4.
The Wi-Fi module mounting location varies from model to model
To the right are the common mounting locations. Choose the one that best fits your
model. Place the Wi-Fi module in the mounting location and secure it with a screw.
STEP 5.
Replace the electrical box cover and secure with a screw
The Wi-Fi module installation is complete.
ELECTRIC SHOCK HAZARD
Universal Wi-Fi Kit
INSTRUCTIONAL GUIDE
WSBEC02/WSBEE03
1.
2.
3.
4.
Front panel
Screw
lectrical
box cover
Wire clip
Wi-Fi connector
Wi-Fi module
Wi-Fi module wire
Wi-Fi module
Wi-Fi module
Wi-Fi module
