FreedomIQ ADTRAN 3120 Qos Configuration Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

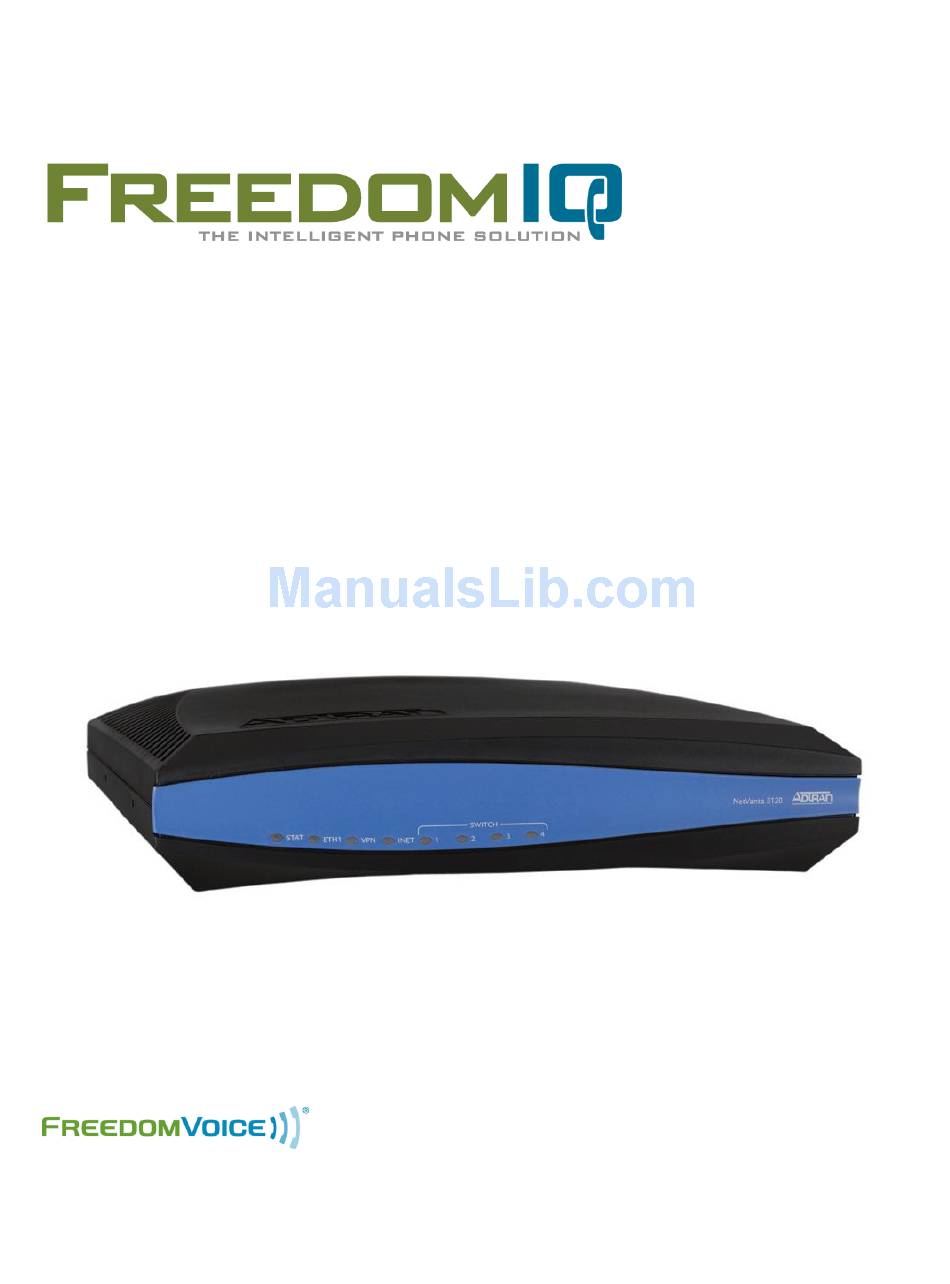

Adtran QoS Configuration Guide
v1.2
ADTRAN 3120 / 3130
QoS Configuration Guide
169 Saxony Road, Suite 212
Encinitas, CA 92024
Phone & Fax: (800) 477-1477

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADTRAN 3120 and is the answer not in the manual?

Questions and answers

Summary of Contents for FreedomIQ ADTRAN 3120

  • Page 1 Adtran QoS Configuration Guide v1.2 ADTRAN 3120 / 3130 QoS Configuration Guide 169 Saxony Road, Suite 212 Encinitas, CA 92024 Phone & Fax: (800) 477-1477...

  • Page 2: Table Of Contents

    Step 3. Apply QoS ......................9 QoS Policies Screenshot ....................10 Traffic Shaping ......................10 Step 1: Create FreedomIQ Access Control Lists (ACL) ..........142 Step 2: Create a QoS Map ..................142 Step 3: Assign the QoS Policy to the WAN/VLAN Interface .......... 14 CLI Configuration ......................

  • Page 3: Introduction

    QoS configuration. This document; the QoS Configuration Guide will step you through the procedure for configuring Internet access on the Adtran 3120/3130 router. Setting up the router is a four step process: 1. Creating an Access Control List (ACL) 2.

  • Page 4: Acl Screen 1 Of 2

    Create UDP 5060 Signaling ACL From “Data” in the left column, select “Firewall / ACLs”. Scroll to the bottom of the page and click “Configure ACLs”. Enter an ACL name, select “Extended” and then click “Add New ACL”. (Screenshot) Click on the new “ACL” name and click “Add New Traffic Selector”. Select “UDP”...

  • Page 5: Acl Screen 2 Of 2

    ACL Screen 2 of 2 Data  Firewall / ACLs  Configure ACLs  Add New ACL  ( ACL Name)  Add New Traffic Selector Label created for the ACL.

  • Page 6: Step 2. Create Qos Maps

    Step 2. Create QoS Maps Two QoS maps must be added to use with the ACL’s that were just created. Create an Egress (Outbound) UDP QoS map From “Data” in the left column, select “QoS Maps”. Under “Add New QoS Map”, in the “Map Name” field type a description such as “FIQ_VoIP_UDP_Out”. (Screenshot) In the “Sequence Number”...

  • Page 7: Qos Screen 1 Of 5

    QoS Screen 1 of 6 Data  QoS Maps (Back to instructions)

  • Page 8: Qos Screen 2 Of 5

    QoS Screen 2 of 6 Data   (*Map Name)  Packet Matching (Back to instructions)

  • Page 9: Qos Screen 3 Of 5

    QoS Screen 3 of 6 Data  QoS Maps  (*Map Name)  Queuing (Back to instructions)

  • Page 10: Qos Screen 4 Of 5

    QoS Screen 4 of 6 Data  QoS Maps  (*Map Name)  Packet Matching (Back to instructions) Label created for the QoS Map.

  • Page 11: Qos Screen 5 Of 5

    QoS Screen 5 of 6 Data  QoS Maps  ( Map Name)  Packet Matching (Back to instructions) Label created for the QoS Map. QoS Screen 6 of 6 Data  QoS Maps  ( Map Name)  Queuing (Back to instructions) Label created for the QoS Map.

  • Page 12: Qos Policies Screenshot

    QoS Policies Screenshot Data  QoS Maps QoS through the GUI is now complete. Continue to next section for traffic shaping procedures. Traffic Shaping Effective for limiting TCP download rates This procedure is highly recommended to limit download rates so higher priority traffic always has enough bandwidth. By setting up another Firewall/ACL rule we can effectively limit the bandwidth of non all phone devices.
  • Page 13 At the top of the screen click the “Save” button. Create a new QoS map From “Data” in the left column, select “QoS Maps”. (Screenshot) Under “Add New QoS Map”, in the “Map Name” field type a description such as “Traffic_Shape”. In the “Sequence Number”...
  • Page 14 Traffic Shaping Screen 2 of 3 Data  QoS Maps  ( Map Name) (Back to instructions) Traffic Shaping Screen 3 of 3 Data  QoS Maps  ( Map Name) (Back to instructions)
  • Page 15 Label created for the QoS Map. CLI Configuration Access to the ADTRAN CLI is provided through the console port, Telnet, or SSH. Telnet/SSH is enabled by default and accessible by either protocol at the default IP: 10.10.10.1. For specific instructions, refer to the quick start guide that shipped with your unit or visit the ADTRAN knowledge base: http://kb.adtran.com.

  • Page 16: Step 1: Create Freedomiq Access Control Lists (Acl)

    Traffic should be matched based on configured ACLs, which must be configured prior to creating QoS maps. The special handling instructions defined in a QoS map are applied to all packets allowed by the specified ACL. Below are entries required to classify FreedomIQ traffic outbound and inbound and should be entered in the global configuration mode:...
  • Page 17 Please Note: If you are using the ADTRAN 3130, you must attach the outbound policy to the sub ATM interface.

  • Page 18: Technical Support

    Technical Support Technical support for FreedomIQ is available from 3:00 AM PST to 6:00 PM PST, Monday through Friday, Saturday from 6:30am PST to 3:30pm PST and can be reached either by phone or by email. Emergency support is available 24/7.

This manual is also suitable for:

Adtran 3130
