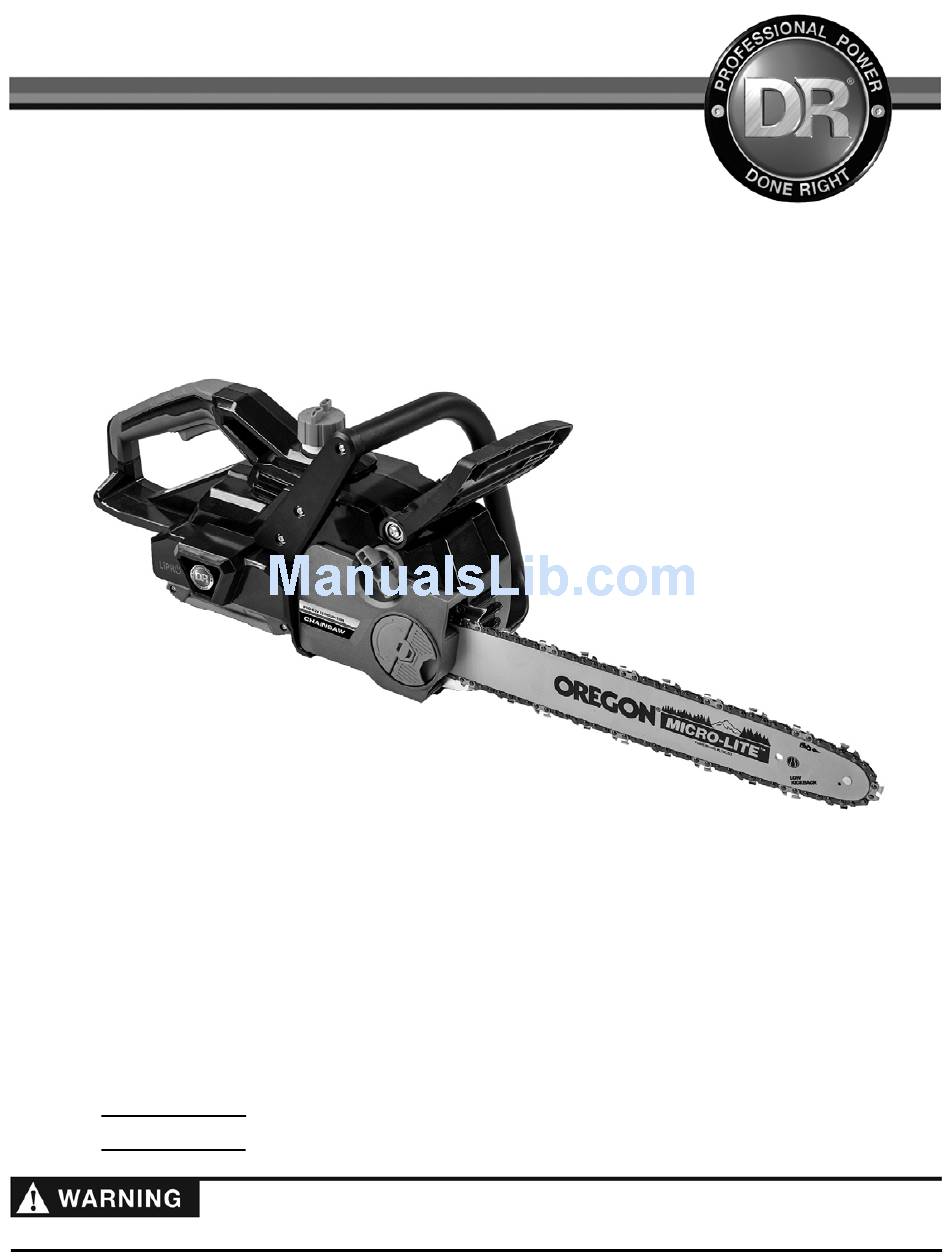

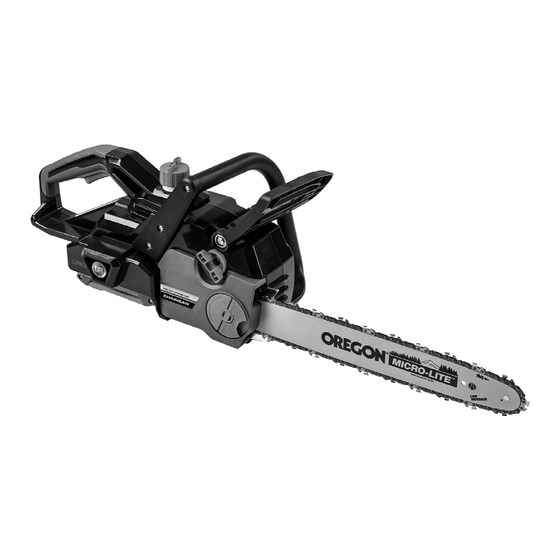

- Page 1 ® PRO-62V CHAINSAW SAFETY & OPERATING INSTRUCTIONS ® Power Equipment Toll-free phone: 1-800-DR-OWNER (376-9637) Serial No. Fax: 1-802-877-1213 Order No. Website: www.DRpower.com Read and understand this manual and all instructions before operating the DR PRO-62V CHAINSAW. ®...
- Page 2 ® PRO-62V CHAINSAW...
-
Page 3: Table Of Contents
Additional Information and Potential Changes Label DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. -
Page 4: Chapter 1: General Safety Rules
® PRO-62V CHAINSAW carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on your DR ®... - Page 5 This Chainsaw can sever body parts! Keep hands and feet away from the Chain and always keep both hands on the Handles. • Do not use your DR PRO-62V CHAINSAW for any job other than the intended use. • Avoid unintentional starting - Do not carry the Saw with your finger on the Power Switch.
- Page 6 No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this DR ® PRO-62V CHAINSAW in a safe manner. Contact us at www.DRpower.com or call 1- 800-DR-OWNER (376-9637) for assistance. ®...
- Page 7 CONTACT US AT www.DRpower.com...
-
Page 8: Pro-62V Chainsaw
PRO-62V CHAINSAW ® It may be helpful to familiarize yourself with the controls and features of your DR PRO-62V CHAINSAW as shown in Figure 2 before beginning these procedures. If you have any questions at all, please feel free to contact us at www.DRpower.com. - Page 9 Specifications DR® PRO-62V Chainsaw, 41417/41418 Chainsaw Model Bar Length 16", Oregon Bar and Chain Rated Voltage 54V DC, Max Voltage (Peak Voltage 62V) Motor 1500W Brushless Chain Tensioner Tool Free 9.9 Lbs. Chainsaw Only. 12.7 Lbs. w/2.5Ah Battery Weight Run Time Up to 100 cuts on 4"...
- Page 10 Charge the Battery Pack before your first use The DR PRO-62V Chainsaw uses a sealed, Lithium-Ion Battery Pack. You MUST charge the Battery Pack for at least 60 minutes before you use the Chainsaw for the first time. If you do not charge it before using the Chainsaw, the Battery Pack’s charging capacity may decrease.
- Page 11 Assembling Your DR PRO-62V CHAINSAW Locate a clean flat surface to work on. 2. Remove the Side Cover by turning the Lock Knob counter clockwise (Figure 3. Check to make sure that the Chain Brake is disengaged by pulling back on the Front Damper (Figure 6).
- Page 12 To remove the Battery, press and hold the Battery Self Lock Button on the left side of the Chainsaw Housing and slide the Battery out of the Chainsaw. Figure 10 Chainsaw Housing Battery Self Lock Button Figure 11 ® PRO-62V CHAINSAW...
-
Page 13: Chapter 3: Operating The Dr ® Pro-62V Chainsaw
Engage Disengage Chain Brake Operation Your DR PRO 62V CHAINSAW is equipped with a Chain Brake that is connected to the Front Damper to activate under extreme Kickback conditions (Figure 13). Front In the event of a Chain Kickback, the Saw will rotate back and into your left hand Damper which will push the Front Damper forward, engaging the Chain Brake. - Page 14 Note: When pruning trees, it is important not to make the finishing cut next to the main limb or trunk until you have cut off the limb further out to reduce the weight. This prevents stripping the bark from the main member. ® PRO-62V CHAINSAW...
- Page 15 For your first cut, undercut the branch 1/3 through the diameter of the Load branch (Figure 16). Second Cut 2. For your second cut, overcut the first cut to drop the branch off. 3. Now make your finishing cut from the topside of the branch smoothly and neatly against the main member so the bark will grow back to seal the wound.
- Page 16 The Battery can be used to charge/operate phones or other electronic devices that use a USB cord. Remove the Battery from the Chainsaw. Plug the device into the USB Port of the Battery (Figure 22). Figure 22 ® PRO-62V CHAINSAW...
-
Page 17: Chapter 4: Maintaining The Dr ® Pro-62V Chainsaw
Chapter 4: Maintaining The DR ® PRO-62V CHAINSAW Regular maintenance is a good way to ensure the best performance and long life Properly Adjusted Warm Chain of your Chainsaw. Please refer to this Chapter for maintenance intervals and procedures. •... - Page 18 Correct 30 degrees – File holders are marked with guide marks to align file properly to produce top plate angle. -Less than 30 degrees – for cross cutting. -More than 30 degrees – feathered edge dulls quickly. Figure 28 ® PRO-62V CHAINSAW...
- Page 19 Tools and Supplies Needed: • Chainsaw File Holder • 5/32" Round Chainsaw File • Wire Brush • Depth Gauge jointer • Flat File • Safety Glasses • Gloves Figure 29 Note: Occasionally remove filing from the file with a wire brush. Position the File into a left hand cutter with the holder and file at a 30°...
- Page 20 Clean Rags • Pick The Motor on your DR PRO-62V CHAINSAW breathes through Vents on the bottom of the Chainsaw Body (Figure 34). These may become blocked with Sawdust during the Sawing operation. The vents should be checked and cleaned before each use. To check and clean the Vents remove the Battery Pack and turn the Chainsaw Body on its side.
- Page 21 Batteries, after years of use, they will eventually need replacement. Use only the DR ® 62V Charger with DR ® 62V Battery Packs. Do not try to use the DR ® 62V Charger with Battery Packs from other manufacturers. •...
-
Page 22: Chapter 5: Troubleshooting
Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) for support. Always remove the Battery Pack before performing any adjustments, maintenance, or repairs to your Chainsaw. -
Page 23: Chapter 6: Parts Lists, Schematic Diagrams And Warranty
Chapter 6: Parts Lists, Schematic Diagrams and Warranty Parts List – PRO-62V CHAINSAW NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 41815 Auxiliary Handle 41850 Sprocket 41816 Left Shell 41851 Tensioning Knob... - Page 24 Parts List – PRO-62V CHAINSAW (Continued) NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description 41888 Oiler Filter Seal Ring 41889 Oiler Strainer 41890 O-type Sealing Ring 41891 Oiler Cover 41892 Dust-Proof Sponge 41893 Inner Wire...
- Page 25 Schematic – PRO-62V CHAINSAW CONTACT US AT www.DRpower.com...
- Page 26 Notes: ® PRO-62V CHAINSAW...
- Page 27 The DR PRO-62V CHAINSAW is warranted for two (2) years (except for the Battery, which carries a one (1) year warranty) against defects in materials or workmanship when put to ordinary and normal personal residential use. For the purposes of all the above warranties, “ordinary and normal personal residential use” refers to non- commercial residential use and further excludes misuse, accidents or damage due to inadequate maintenance.
- Page 28 Chainsaw. • When not in use, your DR PRO 62V Chainsaw should be stored indoors in a dry and high or locked-up place, out of reach of children.
