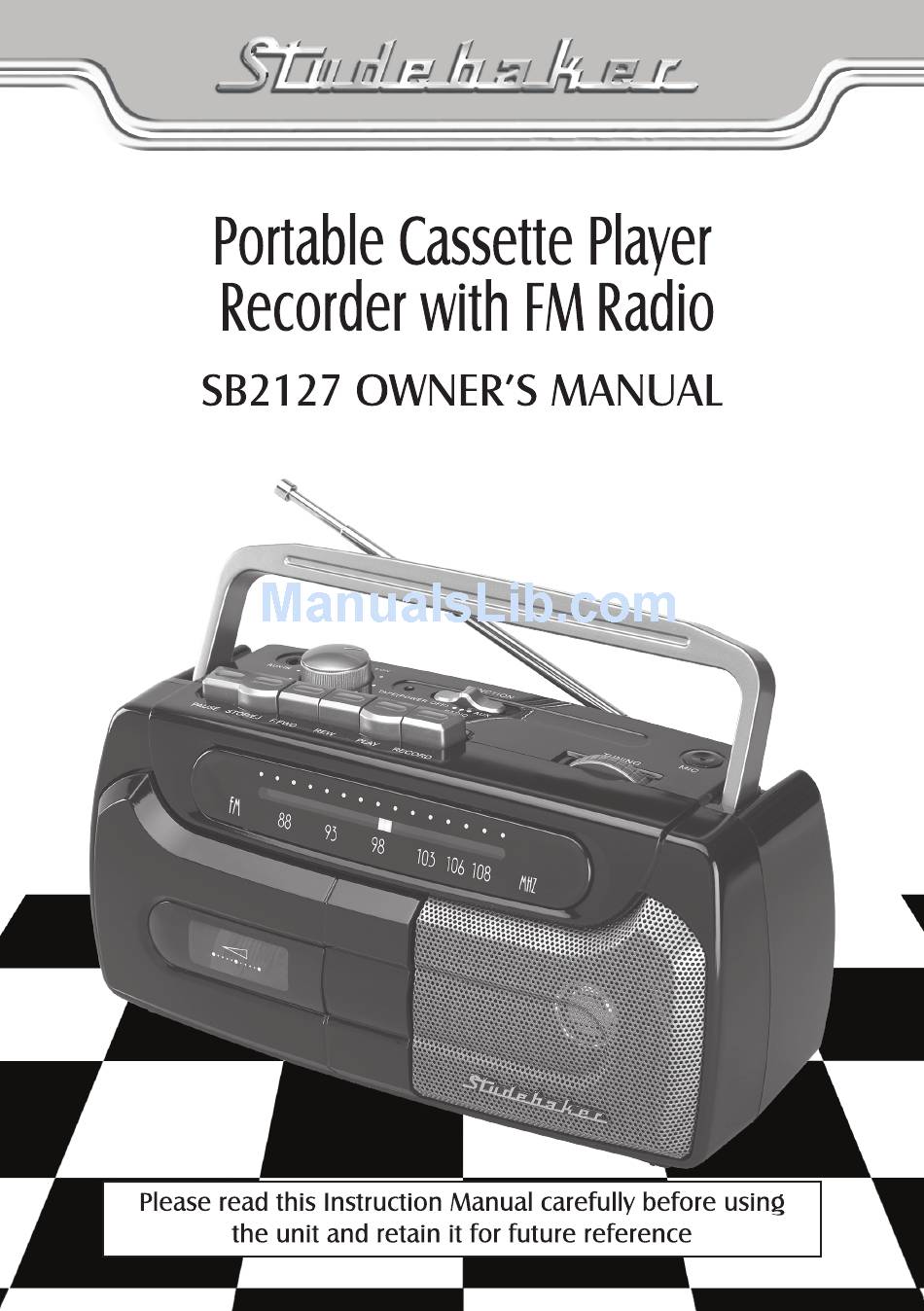

Summary of Contents for Studebaker SB2127
-
Page 2: Compliance With Fcc Regulations
COMPLIANCE WITH FCC REGULATIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 3 The serial number of this product is found on its bottom cover. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: SB2127 Serial Number :...
-
Page 4: Location Of Controls
LOCATION OF CONTROLS AUX IN JACK VOLUME CONTROL POWER INDICATOR FUNCTION SWITCH PAUSE BUTTON STOP/EJECT BUTTON FAST FORWARD BUTTON 10 11 REWIND BUTTON 10. PLAY BUTTON 11. RECORD BUTTON 12. TUNING CONTROL 13. TELESCOPIC ANTENNA 14. TUNING SCALE AND POINTER 15. -
Page 5: Power Source
POWER SOURCE The SB2127 operates using the supplied AC Adapter (AC 120V ~ 60Hz) or with 4 X ’C' size (UM-2) batteries (not included). BATTERY OPERATION 1. Remove the Battery Door located on the back of the unit carefully pushing the battery door lock towards the OPEN direction. -
Page 6: Radio Operation
INDICATOR (#3) will light. 2. Rotate the TUNING CONTROL (#12) to your desired radio station according to the dial scale on the SB2127. 3. Rotate the VOLUME CONTROL (#2) to adjust to the desired output level. 4. To turn off the radio, set the FUNCTION SWITCH (#4) to the TAPE (POWER OFF) -
Page 7: Cassette Operation
CASSETTE OPERATION DECK CONTROL BUTTONS PAUSE BUTTON (#6) Press to stop the tape operation temporarily. Press again to resume STOP / EJECT BUTTON Press to stop all deck operations. Press again to (#7) open the cassette door. FAST FORWARD BUTTON Press to start rapid tape winding in either (#8) &... -
Page 8: Care And Maintenance
• When the tape plays to the end, recording will stop automatically. • T he recording level is automatically set and no volume adjustment is necessary. • The SB2127 is a mono player/recorder, so mono signal will be recorded through the AUX JACK (#1) or Radio. CARE AND MAINTENANCE •... - Page 9 CASSETTE CARE Two common causes of trouble experienced when using cassettes are: 1) Tape Jamming – Leading to uneven speed in playback, and 2) Tape Tangling – Where the tape wraps itself around vital parts of the mechanism. To reduce the likelihood of these problems occurring, the following precautions should be observed: •...
- Page 10 TROUBLE SHOOTING If you experience difficulties in the use of this music system, please check the following or call 1-800-777-5331 for Customer Service. POSSIBLE SYMPTOM SOLUTION Power adapter connection Reconnect adapter unstable No sound Volume set at minimum Increase Volume level Noise on broadcast Station not tuned properly Retune the broadcast...
- Page 11 90 DA Y L IMIT E D W A R R ANT Y A ND S E R V IC E V A L ID IN T HE U.S .A. ONL Y SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A.
