Summary of Contents for Riptide R1
-
Page 2: Read Before Riding
READ BEFORE RIDING Always wear a helmet. Other safety gear such as gloves, pads, closed-toe shoes, long sleeves, and long pants are strongly advised. Be aware of other cars and vehicles, as they can kill. Always ride defensively when in the presence of other vehicles. Be aware of local laws that govern proper usage of your board on public roads, bike paths, sidewalks, or other places you may ride. - Page 3 Avoid riding at night, areas with poor visibility, and narrow spaces. When you ride a Riptide Electric Skateboard you risk death or serious injury from loss of control, collisions, and falls. You must read and follow all warnings and instructions in this manual.
- Page 4 1. Remote Components...

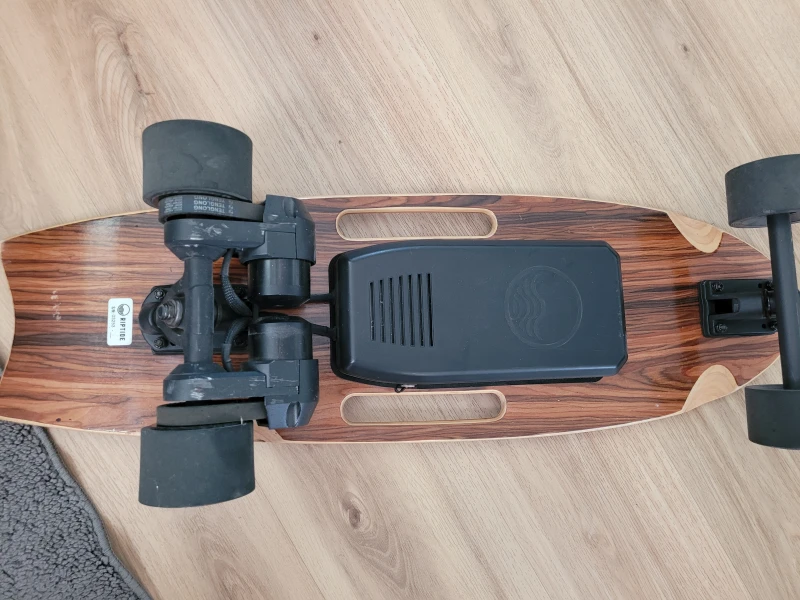

- Page 5 2. Board Components...
- Page 6 3) Pre-Ride Checklist Always wear a helmet. Other protective • equipment such as gloves, pads, closed-toe shoes, long sleeves, and long pants are recommended. Ride in an open, flat area without foot or car • traffic for your first rides. Also make sure you are in Beginner Mode (Section 11) when you are learning.
- Page 7 4) Riding Stance: Regular vs. Goofy? Riding “Regular” means you stand with your left foot forward, towards the nose of the board. Riding “Goofy” means you stand with your right foot forward. How do you know which one you are? Think about a tug-of-war – whichever foot you would put forward when competing in a tug of war to brace yourself, that is the foot you should put forward when riding.
- Page 8 5) Power the Remote On/Off Press the Remote Power Button, found on the underside of the Remote. The Signal Indicator LED on the side of the remote will illuminate once it is turned on. When connected to the board, the Signal Indicator LED will blink and the Battery Level Indicator LEDs will illuminate to display the board's battery level.
- Page 9 7) Pairing the Remote When you turn on the Remote and Board for the first time they should pair automatically. When paired, the Signal Indicator on the Remote will blink green and the Battery Level Indicator LEDs will illuminate to display the board's battery level.
- Page 10 8) Riding the Riptide Extend your thumb on the Pull back on the Thumb Thumb Throttle to accelerate. Throttle to brake. • Always move the Thumb Throttle in small increments. • Bend your knees and keep a wide stance. • Don’t put your rear foot too far back onto the tail, as this may cause you to lose your balance.
- Page 11 Thumb Throttle away from you until the motors begin to engage. The further you roll the Thumb Throttle forward, the faster the Riptide Electric Skateboard will go. At any time you can release the Thumb Throttle to coast or roll it backwards to brake.
- Page 12 Coasting To coast, simply release the Thumb Throttle. This will cut power to the motors though you still will feel added friction from the drive train. Reverse To switch the board into Reverse, press the Reverse Button located on the side of the Remote below the row of LEDs.
- Page 13 9) Check the Board Battery Level on the Board 100% 75% 50% 25% When fully charged, all four LEDs on the Board Battery Meter will illuminate. As the battery capacity diminishes, fewer LEDs will remain lit. When battery level is critically low, the board will make an audible beeping and eventually cut power to the motors.
- Page 14 11) Change the Riding Mode Beginner Toggle Switch at top Top Speed: Min Acceleration: Slow Toggle Switch in middle Top Speed: Max Acceleration: Slow Toggle Switch at bottom Top Speed: Max Acceleration: Fast You can change the riding mode at any time, even when moving.
- Page 15 12) Charging the Board When properly charging the LED on the charger will turn red. When charging is complete this LED will turn green. ONLY USE A RIDERIPTIDE CHARGER as incorrect chargers may be a serious fire hazard. See Page 16 for details.
- Page 16 There is risk of explosion if battery is replaced by an incorrect battery type. Dispose of used batteries according to instructions. Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to the Riptide R1 skateboard and Riptide R1 remote or other property.
- Page 17 For indoor use only. Do not expose the charger to liquid, moisture or extreme humidity. Do not charge Riptide R1 skateboard or Riptide R1 remote outdoors or in the rain. Stop charging the skateboard and/or remote if charging isn’t completed within the specified time. Stop charging...
- Page 18 RideRiptide may void the user’s authority to use the equipment. The Riptide R1 skateboard is intended only for use with Riptide R1 series batteries. Do not shock the battery by dropping it or throwing it.
- Page 19 liquids. Never throw the battery into a fire, as that could cause the battery to explode. Product and Battery Disposal Information Your device should not be placed in municipal waste. Please check local regulations for proper disposal of electronic products. If this unit shows any type of damage, such as bulging, swelling, or disfigurement, discontinue use and immediately contact customer support.
- Page 20 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
- Page 21 14) Limited Product Warranty Limited Warranty RideRiptide warrants to buyer that, for a period of six (6) months from the date of shipment of the Board, the Board shall be free from material defects in material and workmanship. Disclaimer EXCEPT FOR THE WARRANTY SET FORTH ABOVE, RIDERIPTIDE MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE BOARD, INCLUDING ANY (A) WARRANTY OF MERCHANTABILITY;...
Need help?
Do you have a question about the R1 and is the answer not in the manual?
Questions and answers
What type of battery does the Riptide skateboard have?
The Riptide R1 skateboard uses 18650 Lithium-Ion batteries.
This answer is automatically generated
@Mr. Anderson
@Mr. Anderson , do all riptide electric skateboards use the same charger. I cannot find mine and need a replacement.
@Mr. Anderson , I was just advised that my riptide e-board is an R1X, and I need a replacement charger. What kind and where can I purchase this replacement charger?
