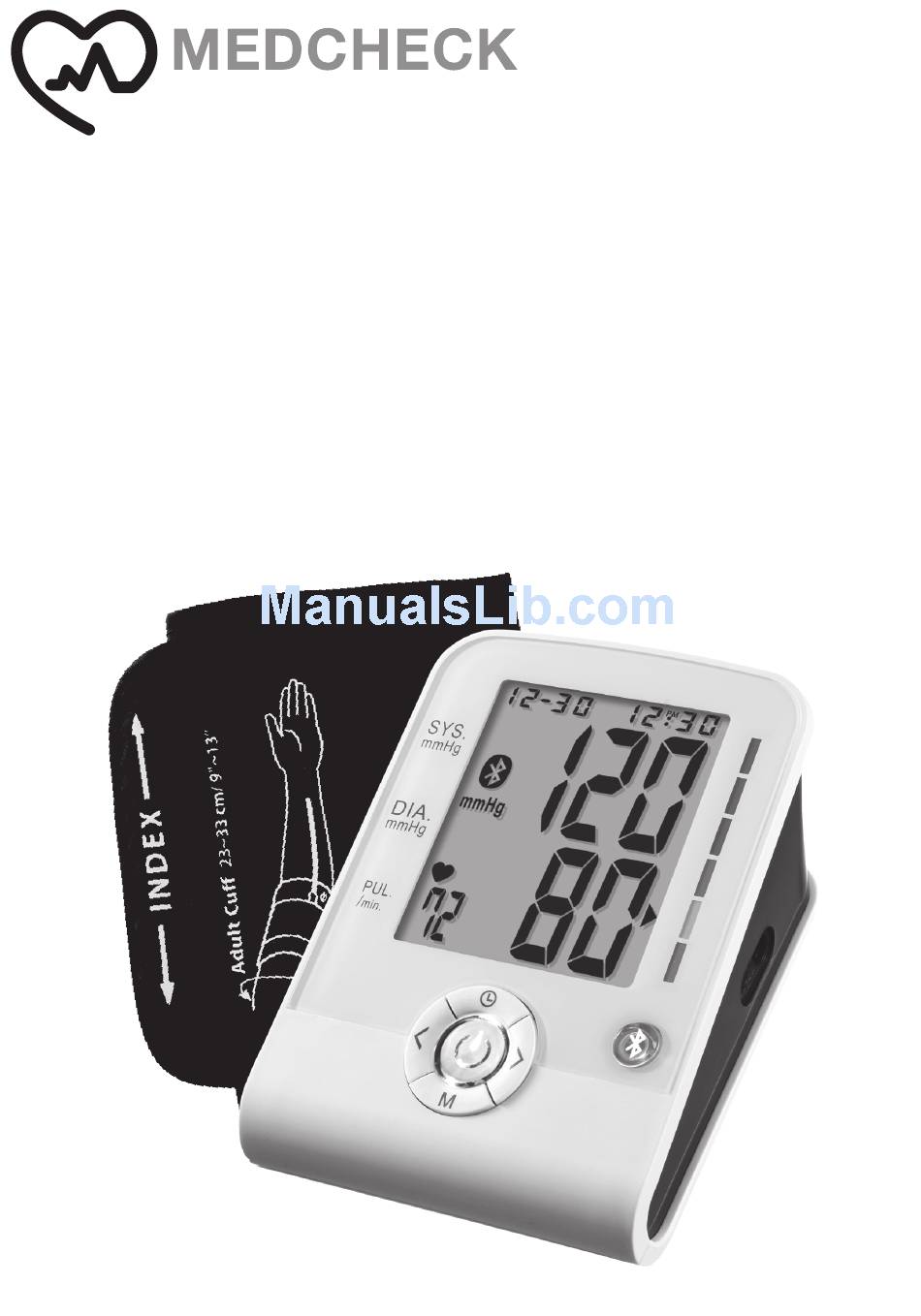

- Page 1 Instruction Manual Bluetooth Automatic Upper Arm Blood Pressure Monitor Model No. SFBP01...
-
Page 2: Table Of Contents
Table of Contents Medical Disclaimer……………..………...………...………………03 Intended Use……………………..………...………...………..…03 About Blood Pressure………..……………...………...…………04 Precautions………………………………………...………...………06 Device Overview………………..………………...………...…….09 Symbol Definitions……………..……………………...………...….11 Features………………………………………………...………...…12 Installing Batteries……...……..…...……………..……………….16 Applying the Cuff…………...….……...………..………………….18 Measurement Procedure……..………...………..…………….19 Memory Function…………….……...………...…….…..……….21 Bluetooth Communication…..………...………...…..………………22 Storage and Maintenance….…….……...………...……………….23 Troubleshooting…………………………...………...……………….24 Limited Warranty……..….…..…….……………...………..……26 Specifications………………………………………...………..……..27 Note………………………………………….………...………...…….29 Appendix…………………………………….…………...………..31 Blood Pressure Diary....……………….…………...………..35... -
Page 3: Medical Disclaimer
Medical Disclaimer This manual and product are not meant as a substitute for advice provided by your doctor. You are not to use the information contained herein, or this product for diagnosing or treating a health problem or prescribing any medication. -
Page 4: About Blood Pressure
About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. - Page 5 About Blood Pressure A. WHO blood pressure classifications : Standards for assessment of high or Severe hypertension low blood pressure without regard to Moderate hypertension Mild hypertension age, have been established by the High normal Normal World Health Organization (WHO), as Optimal 120130 140150160170180...
-
Page 6: Precautions
Precautions * Do not use this manual and product as a substitute for advice, diagnosing or treating a health problem or prescribing any medication by your doctor. If you have a medical problem, promptly consult your healthcare provider. * Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. - Page 7 Precautions ● Keep the cuff at heart level. Relax your hand with the palm facing up. ● Perform measurements in a quiet and relaxed environment at room temperature. ● Do not move or shake the device during a measurement. Please keep quiet and do not talk during measurements. ●...
- Page 8 Precautions ● If you have one of the circulatory problems as arteriosclerosis, diabetes, liver disease, kidney disease, severe hypertension, peripheral circulation….., please consult your healthcare professional before using the device. ● Results are not intended for direct diagnosis. Please consult with a physician if you have any questions or concerns about your results.
-
Page 9: Device Overview
Device Overview Part names and product components BP CATEGORY INDICATOR DISPLAY DC JACK ARM CUFF HOLE MODE BUTTON DOWN BLUETOOTH BUTTON INDICATOR UP BUTTON START/ STOP BUTTON MEMORY BUTTON ARM CUFF WITH TUBE AAA “ LR03” (1.5V) ALKALINE BATTERY X 4 *Caution ! Substitution of a component different from that supplied might result in measurement error. -
Page 10: Unit Display
Device Overview Unit display Hour : Minute (Also represents YEAR in Setting Mode) Month/ Date Systolic Rate Bluetooth Symbol Blood Pressure Unit Memory Record BP Category Number Indicator Low Battery Symbol Pulse Symbol Irregular Heartbeat Diastolic Detector Rate Heart Rate... -
Page 11: Symbol Definitions
Symbol Definitions Definitions SYMBOLS This symbol appears when the battery power is excessively low or the polarity reverses. →We suggest you replace all batteries with new Low Battery Symbol ones, and make sure the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat. -
Page 12: Features
Features BP Category Indicator This device is equipped with BP Category Indicator which classifies your blood pressure measurements into six stages (Optimal to Severe hypertension) as shown in below chart: Stages of Blood Systolic Diastolic Recommendations by Color Pressure Levels (mmHg) (mmHg) SIGN 49: Hypertension in older people... - Page 13 Features *Note! The above table is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements. Usually this is not a cause for concern; however we recommend you consult with your physician for proper diagnosis or seek medical advice according to our recommendation mentioned above.
- Page 14 Measure Date, Systolic Pressure, Diastolic Pressure and Pulse Rate to the Smartphone via MedCheck App. For step-by-step guide on how to use the MedCheck App, please visit www.getmedcheck.com. If paired Bluetooth device is not working or is not within RF range of this device, the measuring results will be stored in the blood pressure monitor's memory.
- Page 15 Moving away from the source of the interference or turning off these devices will resolve the problem. ● Make sure SFBP01 and paired Bluetooth device are within acceptable distance (no more than 10 meters) with each other. If not, put them closer.
-
Page 16: Installing Batteries
Installing Batteries When Low Battery Symbol appears on the display, or if there is no response, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either. - Page 17 Installing Batteries Using the AC Adaptor This monitor is also designed for operation with AC/DC adapter. Please use only a compatible AC/DC adapter with required voltage and current as indicated in this manual. *Note ! ● No batteries are needed when operating with an AC adapter. ●...
-
Page 18: Applying The Cuff
Applying the Cuff ● Press your brachial artery approximately 1 inch (2 ~ 3 cm) above the elbow on the inside of your left arm to determine where your strongest pulse is. ● Slide the end of arm cuff furthest from the tube through the metal ring to a loop. -
Page 19: Measurement Procedure
Measurement Procedure Switch on the Monitor A. Press button to switch on the monitor. B. All segments appear on the screen. Setting Year, Date and Time A. Press button ("YEAR" flashes). Press button to adjust YEAR value. B. Press button ("MONTH" flashes). Use button to adjust MONTH (1, 2, 3,……, 12). - Page 20 Measurement Procedure B. With the cuff wrapped around your upper arm, press button to start measurement. All display units appear on the screen. *Note ! Do not inflate the cuff until it is wrapped around your upper arm. After all symbols disappear, the display will show “00”.
-
Page 21: Memory Function
Memory Function Storing data After each measurement, the systolic and diastolic pressure, heart rate, pulse, BP Category Indicator, and Irregular Heartbeat Detector symbol (if any) with date and time will be automatically stored. The monitor can store up to 120 memories for 3 users, and automatically replace the oldest data with new one. -
Page 22: Bluetooth Communication
● Without any operation in 1 minute, the device shuts off automatically and Bluetooth Connection OFF. ● Standby Mode: Press button under Date/Time, Measuring, or Memory Mode, and the device will turn to Standby Mode. ● SFBP01 can only pair up with one Bluetooth device at a time. -
Page 23: Storage And Maintenance
Storage and Maintenance General Use ● Do not in any way twist the cuff. ● Do not press button if the cuff is not wrapped around your upper arm. ● Do not drop the product and avoid any strong impacts. Maintenance ●... -
Page 24: Troubleshooting
Troubleshooting SYMBOLS/ CONDITIONS/ INDICATION/ SYMPTOMS CAUSES CORRECTION Replace them with 4 new Worn-out batteries. AAA (LR03) alkaline Unit does not batteries. turn on when button is Battery polarities have Re-insert the batteries in pushed. been positioned the correct positions. incorrectly. Cuff has been placed Wrap the cuff properly so incorrectly. - Page 25 Troubleshooting SYMBOLS/ CONDITIONS/ INDICATION/ SYMPTOMS CAUSES CORRECTION BPM cannot Please try to pair BPM and Paring has not been communicate completed. Bluetooth device with each with Bluetooth other device Bluetooth function is not Please refer to Page 19 turn on. “Measurement Procedure”...
-
Page 26: Limited Warranty
Limited Warranty To ensure continued measurement precision, all digital blood pressure monitors require recalibration regularly. After 2 years from the manufacturing date, we recommend you have your monitor recalibrated at the local distributor. Please contact your distributor for the details about the recalibration service and the charge of shipping and handling. -
Page 27: Specifications
Specifications Model Number SFBP01 Measurement Method Oscillometric Rated Range of Cuff Pressure 0 ~ 300 mmHg Rated Range of 40 ~ 280 mmHg Determination Measurement Range of 40 ~ 199 Beats/Minute Heart Rate Accuracy Pressure: ± 3 mmHg Pulse: ± 5 % Max. - Page 28 Specifications RF Type Bluetooth 4.0 BLE RF Modulation GFSK Effective Radiated Power 0dBm Data Throughput 0.2Mbps Expected Delay (Latency Range) The latency time is less than 0.3ms second in Wireless (RF) Communication from sender to receiver. Integrity Channel Quality-Driven Data Rate (CQDDR) technology increases the effective data rate and integrity in noisy environments.
-
Page 29: Note
30cm (12 inches) to any part of the SFBP01 , Otherwise, degradation of the performance of this equipment could result. Waste of electrical and electronic equipment (WEEE) - Page 30 Note Symbol Explanation Health & Life Information HEALTH & LIFE Co., Ltd. 9F, No. 186, Jian Yi Road, Manufacturer Zhonghe District, New Taipei City, Taiwan www.healthandlife.com.tw Date of manufacture YYYY-MM EMERGO EUROPE Authorized representative Prinsessegracht 20, in the European Community 2514 AP The Hague, The Netherlands Serial number...
-
Page 31: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Emissions test Compliance Electromagnetic environment – guidance RF emissions Group 1 RF energy is used only to maintain device’s CISPR 11 operation. - Page 32 Appendix Immunity test Compliance Electromagnetic IEC 60601 level environment – guidance test level Electrical fast ± 2 kV for ± 2 kV for Mains power quality should be that transient/burst power supply power supply of a typical commercial or hospital IEC 61000-4-4 lines lines...
- Page 33 Appendix Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).
- Page 34 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Immunity Compliance Electromagnetic IEC 60601 test level environment – guidance test level Conducted RF 3V rms Not Applicable...
-
Page 35: Blood Pressure Diary
Blood Pressure Diary Date Time Systolic/ Diastolic Pulse Before Meal After Before Meal After Before Meal After Before Meal After Before Meal After Before Meal After Before Meal After Before Meal After Before Meal After Before Meal After Before Meal After Before Meal... - Page 36 www.getmedcheck.com P/N：323103070 VER：001...
