oserio HL168ZA Manual

HL168ZA
H & L Automatic H
Blood Pressure Monitor B
A

Important reminders

*Do not use this manual and product as a substitute for advice,
diagnosing or treating a health problem or prescribing any
medication by your doctor. If you have a medical problem,
promptly consult your healthcare provider.
*Read the Instruction Manual thoroughly before measuring and
keep it at hand for your reference at any time.
*This device uses the oscillometric method to measure systolic
and diastolic blood pressure as well as your pulse rate. It's
recommended for use by people over the age of 18 and not
to be used on children.
*The device is designed for home use and not suitable for
clinical use.
Do not take a measurement in a low (less than 50 ˚F/10 ˚C)
or high (more than 104 ˚F/40 ˚C) temperature or
you may get the inaccurate readings.
Wait 30 ~ 45 minutes before measurement if
you've just consumed caffeinated beverages or
smoked cigarettes.
Rest at least 5 ~ 10 minutes before taking
a measurement.
Relax at least 3 ~ 5 minutes in between measurements.
We recommend you using the same wrist (preferably the left wrist)
and measuring around the same time each day.
Sit down comfortably and place your elbow on the table
with your feet flat on the floor.
Keep the device at heart level. Relax your hand with the palm facing up.
Perform measurements in a quiet and relaxed environment at room
temperature.
Do not move or shake the device during a measurement.
Blood pressure measurements should be interpreted by a physician or
a trained health professional who is familiar with your medical history.
Using the unit and recording the results regularly for your physician to
interpret, you will keep your physician informed of the continuing
changes in your blood pressure.
If you have one of the circulatory problems as arteriosclerosis, diabetes,
liver disease, kidney disease, severe hypertension,
peripheral circulation....., please consult your healthcare professional
before using the device.
This product is not suitable for people with arrhythmias.
Blood pressure measurements taken with this device are equivalent to
those obtained by a trained observer using the cuff / stethoscope
auscultation method and are within the accuracy limits prescribed by
the American National Standard for Electronic or Automated
Sphygmomanometers.
*Note
Blood pressure naturally varies from time to time throughout the
day and is also affected by many different factors such as smoking,
alcohol consumption, medication and physical activity. Normally
the blood pressure rises while at work and is at its lowest during
sleeping period..
B

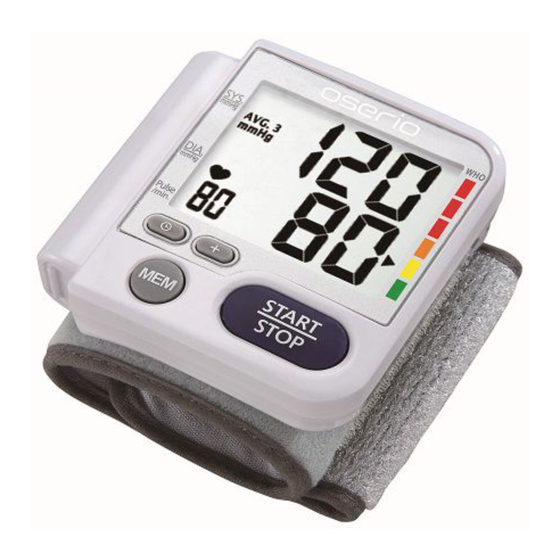

Knowing your device

Main unit

LCD DISPLAY
MODE BUTTON
WHO INDICATOR
AAA (1.5 V) Alkaline Battery x 2
MEMORY BUTTON
START/STOP
BUTTON
SET BUTTON
STORAGE CASE(OPTIONAL)
WRIST CUFF
*Caution!
Substitution of a component different from that supplied might result in
measurement error.
Unit display
HOUR: MINUTE
MONTH/ DATE
MEASUREMENT AVERAGE
BLOOD PRESSURE UNIT
LOW BATTERY
MEASUREMENT NUMBER
PULSE
SYMBOL
IRREGULAR
HEARTBEAT
DETECTOR

Applying the cuff

Do not place the pressure cuff over a
jacket or sweater sleeve. Wrap the
pressure cuff around the bare wrist
with the monitor facing you.
Wrap the cuff snugly. Do not make it
too tight.
Fold the remaining part of the cuff back
out of the way.
0.4" (10 mm)
Leave approximately 10 mm
(Approx. 0.4 inch) between the cuff
and the bottom of your hand palm.
135 ~ 195 mm
*Note
Do not use this device if your wrist has any wound or injury.
Do not wrap the cuff around any body part other than your wrist.
Irregular Heartbeat Detector (IHB)
The symbol will appear on screen indicating a certain
heartbeat irregularity was detected during measurement.
The heartbeat rhythm that is more than or less than 25% from the
average rhythm is usually defined as an irregular heartbeat rhythm.
Talking, moving, shaking or an irregular pulse during the
measurement can result in the appearance of this symbol.
Usually this is not a cause for concern, however if the symbol appears
often, we recommend you seek medical advice.
And please note that the device does not replace
a cardiac examination, but serves to detect pulse
irregularities at an early stage.
C
*Note
No Irregular Heartbeat Detector measurement will be stored in memory.
The pulse display is not suitable for checking the frequency of heart
pacemarkers. If a certain pulse irregularity is detected during
measurement often, we recommend you seek medical advice.
The device is safe and accurate to use with pulse irregularities. However,
as a safeguard, we recommend that if you have arrhythmias such as
atrial or ventricular premature beats and atrial fibrillation or any other
special conditions you should check with your physician before using
your device.
The IHB function is not designed for use by people with arrhythmias nor
for diagnosing or treating an arrhythmic problem. It's aimed only for the
reference on pulse variations/tendency of healthy people.
Therefore, the average of heart beat intervals is calculated with the first
3 normal effective heart beat values, and is used for the evaluation base
of irregular heart beat.
At least 3 beats with at least 25% difference from the average heart
beat interval will generate the IHB icon on the screen.
WHO Indicator
SYSTOLIC RATE This device is equipped with WHO Blood Pressure Indicator which
classifies your blood pressure measurements into six stages
WHO PRESSURE
(Optimal to Severe hypertension) based on WHO classification on
BAR INDICATOR
blood pressure levels as shown in below chart:
Stages of blood Systolic
pressure levels (in mmHg)
DIASTOLIC RATE Severe
Grade 3
180
hypertension
Moderate
Grade 2 160 ~ 179
hypertension
Mild
140 ~ 159
Grade 1
hypertension
High-normal 130 ~ 139
Normal
120 ~ 129
Optimal 120
*Source: WHO, 1999
After each measurement is completed, the LCD display will show
your position automatically on the six segments of the bar
indicator which corresponds to WHO Blood Pressure Indicator.
DIASTOLIC
(mmHg)
Severe hypertension
110
105 Moderate hypertension
100
Mild hypertension
95
90 High normal
85
Normal
80
Optimal
120 130 140 150 160 170
*Note
When a person's systolic and diastolic pressures fall into different
categories, the higher category should apply.
e.g. systolic rate 181 & diastolic rate 99
the result should be in Red category
(Severe hypertension)
systolic rate 110 & diastolic rate 95 Yellow
category (Mild hypertension)
Inserting/ Replacing the batteries
When the low battery symbol
the display, please change the batteries.
Replace all the batteries with new ones
and do not mix new and old batteries.
Do not mix alkaline, standard
(carbon-zinc) or rechargeable (cadmium)
batteries either.
It may shorten the battery life or cause the device to malfunction.
Remove the battery cover at the rear side of the unit and insert 2
AAA alkaline batteries into the battery compartment as shown.
Make sure the polarities "+" and "–" ends are properly positioned.
D
*Attention
Batteries are hazardous waste. Do not dispose of them together
with the household garbage. Please take the used batteries to the
recycling collection point according to your local regulations.
Keep the battery away from small children in case they swallow it.
To prolong the battery life and prevent damage caused by
leakage, remove the batteries from the device if the device is not
to be used for a long period.
Memories (if any) will not be deleted during battery replacement.
After replacing the batteries, reset the year, date and time

Setting the date and time

1. Press button ("year" starts flashing).
Press + button to set the current year
(2009, 2010, 2011,....).
2. Press button ("month" starts flashing).
Press + button to set the current month
(1, 2, 3,......,12).
3. Follow the above step to set the current
Diastolic Our
date (1, 2, 3,.....,31), hour (1, 2, 3,.......12), and minute
(in mmHg) recommendation
(00,01,02,03,.....59).
110 Take medical treatment at once
100 ~ 109 Seek medical advice
4. Press button again to save the settings
90 ~ 99 Check it regularly by doctor
and switch to Standby Mode. (month, date,
85 ~ 89 Check it regularly by doctor
80 ~ 84 Check it yourself
hour and minute appear on the display)
80 Check it yourself

Taking a measurement

1. Open battery cover and insert the batteries.
Make sure that the polarities are correct.
2. All display symbols will appear on screen
Red
for 3 seconds.
Orange
Yellow
3. Press + button to select a
particular memory zone
Green
(1,2, or 3).
180 SYSTOLIC 4. Press START/STOP button to start measurement.
(mmHg)
All display symbols appear on the screen for 3 seconds.
The monitor will automatically inflate to the level that is right
for you.
*Note
When taking repeat measurements, make sure to select
the same memory zone so that the measurements are
recorded in the appropriate memory.
5. After the initial inflation of the cuff, the pressure will slowly
decrease and when a pulse is detected, the PULSE RATE
SYMBOL will start flashing.
appears on
*Note
If the cuff does not stop inflating, remove the cuff at once.
6. When the measurement is finished, the
systolic pressure, diastolic pressure, pulse
rate and WHO INDICATOR SYMBOL will be
displayed for 1 minute.
7. The monitor will automatically shut off after
1 minute if without any operation.
