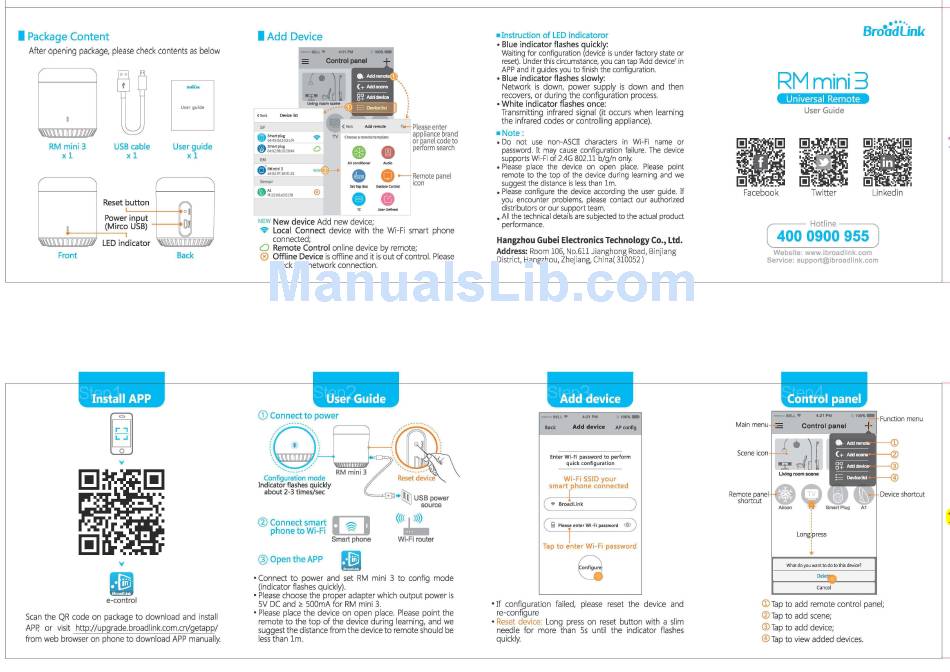

BroadLink RMmini3 User Manual

I
Package Content
After opening package, please check contents as below
Wu "
'EJ

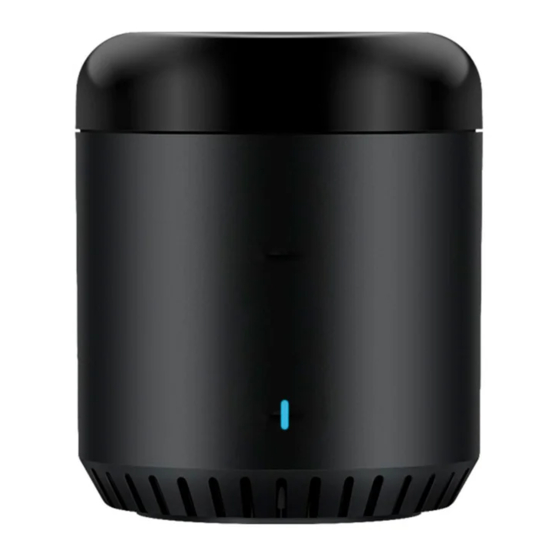

RM mini 3
x l
Front
USB cable
xl
- I
Install APP
v
v
e
e-control
User guide
x l
Back
Scan the QR code on package to download and install
APP, or visit http://upgrade.broadlink.com.cn/getapp/
from web browser on phone to download APP manually.
I
Add Device
[(8odc
"'
< ~· o..- Please enter
· ='0 ~ 0".2lol'4.
~
ct.oo ... ~t. mplat~
appliance brand
or panel code to
(~) :;':;'~
.. .
0 0
•
perform search
Alr<»nOitio"''
til :~;,;,,"
- ®
.
•
(i)
- _Remote panel
~
.. , ....
eontr<>~
ICOn
- ~~Zl,Octll~:SH!
®
•
41
NEW
New device Add new device;
<9" Local Connect device with the Wi-Fi smart phone
connected;
0 Remote Control online device by remote;
0
Offline Device is offline and it is out of control. Please
check the network connection.
User Guide
G)
Connect to power
· Q / _.--------.. . . .
~ ,...--·
.
:' I \ :
'\ ...... --·· ..... RM
mr m z ' . ' · . . . . '
Configuration mod e Reset dev1ce
Indicator flashes qu1ckly
about 2-3 t1mesjsec _ . ~
~ USB
power
source
@ Connect smart
phone to Wi-Fi
@
Open the APP
~
~
Smart phone
g
((< .:_
Wi-Fi router
• Connect to power and set RM mini 3 to config mode
(indicator flashes quickly).
·Please choose the proper adapter which output power is
SV DC and > SOOmA for RM mini 3.
• Please place the device on open place. Please point the
remote to the top of the device during learning, and we
suggest the distance from the device to remote should be
less than lm.
• Instruction of LED indicatoror
• Blue indicator flashes quickly:
Waiting for configuration (device is under factory state or
reset). Under this circumstance, you can tap 1\dd device' in
APP and it guides you to finish the configuration.
• Blue indicator flashes slowly:
Network is down, power supply is down and then
recovers, or during the configuration process.
• White indicator flashes once:
Transmitting infrared signal (it occurs when learning
the infrared codes or controlling appliance).
•Note :
• Do not use non-ASCII characters in Wi-Fi name or
password. It may cause configuration failure. The device
supports Wi-Fi of 2.4G 802.11 b/g/n on~.
• Please place the device on open place. Please point
remote to the top of the device during learning and we
suggest the distance is less than lm.
• Please configure the device according the user guide. If
you encounter problems, please contact our authorized
distributors or our support team .
• All the technical details are subjected to the actual product
performance.
Hangzhou Gubei Electronics Technology Co., Ltd.
Address: Room 106, No.611 Jianghong Road, Binjiang
District, Hangzhou, Zhejiang, China( 310052)
Add device
Back Add device AP conllg
EnterWi-Fi password to perform
qui<::kconfiguration
Wi-Fi SSID your
smart phone connected
J
( • Broadlink )
( Ill
~e~se
enter Wi-Fi
p~ssword
<§> )
l
Tap to enter Wi -Fi password
• If configuration failed, please reset the device and
re-configure
• Reset device: Long press on reset button with a slim
needle for more than Ss until the indicator flashes
quickly.
RMmini3
eiJIIN4lill@fifiib*
User Guide
~
-
II
l!l ..... ;
Facebook Twitter Linkedin
~o9oo~
Website: www.ibroadlink.com
Service: support@ibroadlink.com
Control panel
<D Tap to add remote control panel;
Ql
Tap to add scene;
® Tap to add device;
@) Tap to view added devices.
7
7
