Quick Start Manual for
FP4057 Models
Product Codes:
FP4057T: Flexi Panels, 320 x 240 QVGA, 5.7" Color
TFT, with no expansion slot.
FP4057T-E: Flexi Panels, 320 x 240 QVGA, 5.7" Color
TFT, with 5 expansion slots.
FP4057TN: Flexi Panels, 320 x 240 QVGA, 5.7" Color
TFT, Ethernet with no expansion slots.
FP4057TN-E: Flexi Panels, 320 x 240 QVGA, 5.7" Color
TFT, Ethernet with 5 expansion slots.

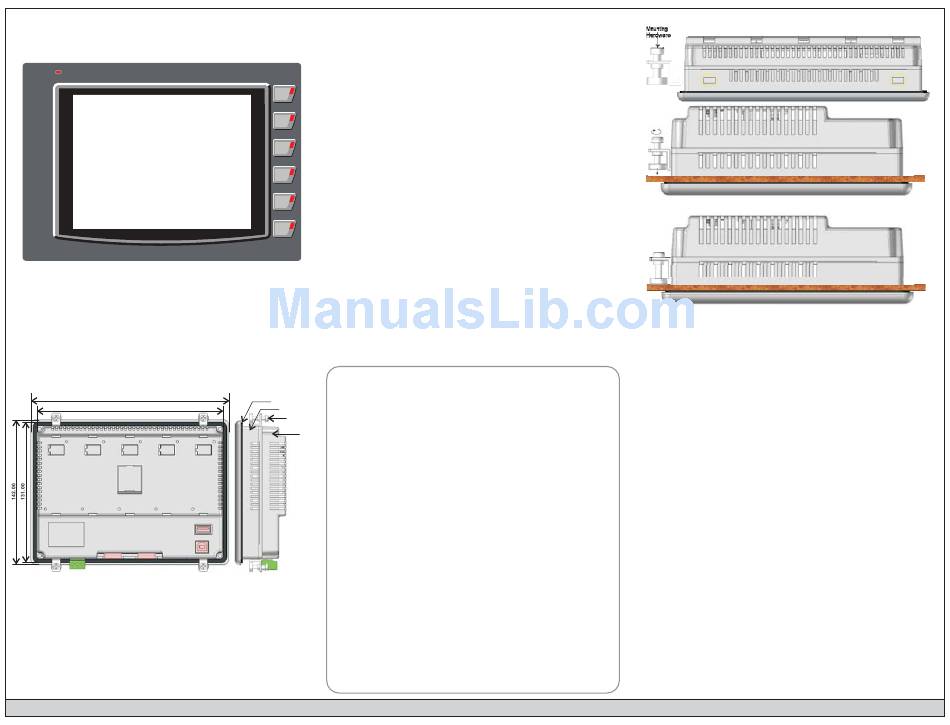

Panel Mounting and Panel cut-out:
195.00
184.00
Tighten the mounting screws evenly to a torque between 0.6 and
0.7 Nm to maintain water and dust resistance. Make sure the
panel is not dirty and warped and that it is strong enough to hold
the unit.
Note: Maximum Panel thickness (On which unit is to be mounted)
should be 6.0mm (Tolerance: +0.00mm and -0.50mm).
Quick Start Manual Doc. No.: QS\FP5\0310; Ver.: 1.00C
FP4057Tx-x Specifications
FP4057Txx is Flexi Panel series product.
Flexi Panel Series operator interfaces provide human-machine
interface for PLCs / Inverters. It communicates with PLCs /
Inverters over serial communication port to fetch the information.
Information can be displayed over LCD or can be used to build a
F1
logic.
F2
Specifications of FP4057Tx-x:
Power Supply: For FP4057T: 24VDC; 7W
F3 For FP4057TN: 24VDC; 8W
For FP4057TX-E: 24VDC; 10W
Display: 5.7"TFT (320 x 240 Pixels)
F4
Color Graphical Display
Bezel: IP 65 rated Keypad
F5
LEDs: 7
Memory: 6 MB Max. Application Memory
Communication:
F6
2 COM Ports: COM1 & COM2: RS232/RS485/RS422
USB Device: For Upload and Download
USB Host: For mass storage interface
Ethernet: For connecting to a PLC, programming of
HMI, a third party device or drive
(10/100Mbps)
Operating Temp.: 0 to 50 C
Humidity: 10% to 90% (Non condensing)
Panel cutout: 184.00 mm x 131.00 mm
Weight: For FP4057TX: Approx. 695gm
For FP4057TX-E: 715gm
WARNING:
WARNING: DO NOT REMOVE OR REPLACE WHILE
Gasket
Front Case
CIRCUIT IS LIVE UNLESS THE AREA IS KNOWN TO BE
Mounting
FREE OF IGNITIBLE CONCENTRATIONS OF FLAMMABLE
Hardware
Back Case
SUBSTANCES.
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C and D or non-hazardous locations only.
WARNING – EXPLOSION HAZARD – Do not disconnect
equipment unless power has been removed or the area is
known to be non-hazardous.
WARNING – EXPLOSION HAZARD - Substitution of
components may impair suitability for Class I, Division 2.
WARNING - CAUTION, Battery May Explode If Mistreated.
Do Not Recharge, Disassemble Or Dispose Of In Fire.
WARNING - Replace Battery With type CR1225FH-LF,
manufactured by Renata SA, only. Use of Another Battery
May Present A Risk Of Fire Or Explosion. See Owner's
Manual For Safety Instructions"
A recommendation for the user to periodically inspect the
sealed devices used, for any degradation of properties and
replace if degradation is found.
o
Figure - 1
Figure - 2
Figure - 3
Procedure to mount the unit:
FIGURE - 1 There are four (4) slots provided on the unit case to
mount the unit. Also a set of four (4) mounting hardware
is provided with each FP5 unit. (It is consist of single
cap nut, screw and clamp)
FIGURE - 2 Insert the clamp into the slot provided on the unit
case. hold the unit straight. Tighten the mounting
screws evenly to a torque between 0.6 and 0.7 Nm.
FIGURE - 3 Thus this mounting hardware will hold the unit with
the surface.
System Components:
- FP4057Txx unit with LCD, Touch Screen and RTC
- Power Supply Connector
- Installation Kit: Gasket, Four Mounting hardware
(each mounting hardware set consists of single cap nut,
screw and clamp).
- *FlexiSoft Software Installer CD
*FlexiSoft: Please check the latest version each time.
Note: User should order PLC / programming cable separately.
Renu Electronics Pvt. Ltd.; Pub.: 06/2011
