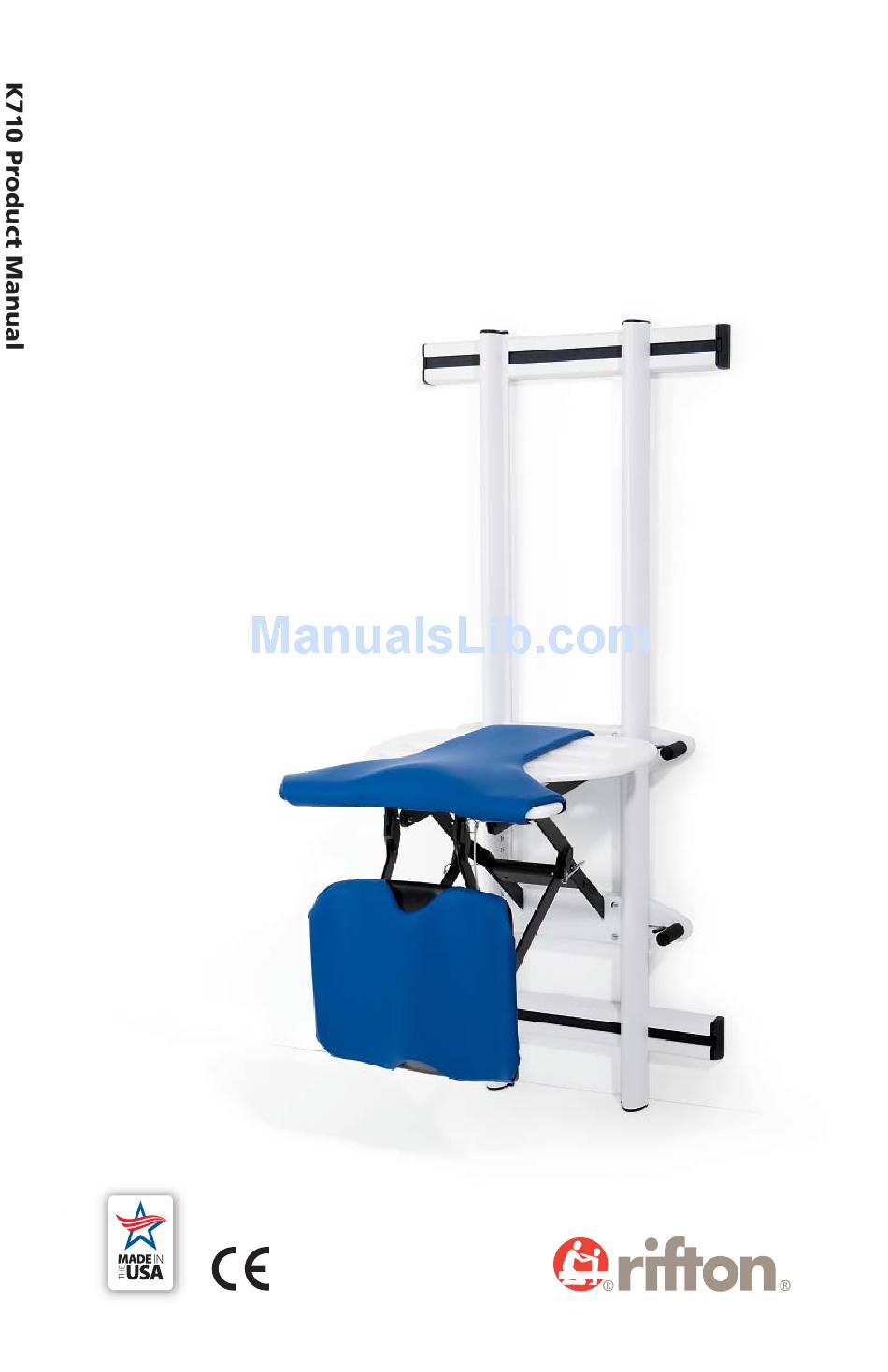

Page 1 Support Station K710 Product Manual...
Page 2: Table Of Contents
Use this key to determine which sections of this product manual apply to you. Technical Users For professionals who order and set up Rifton products. Home Users For care-givers who use Rifton products on a regular basis. Maintenance Personnel For anyone who is responsible for service or re-ordering of Rifton products and parts.
Page 3: Safety Messages
○ Immediately remove this product from use when any condition develops that might make operation unsafe. ○ Do not use Rifton components or products for any purpose other than their intended use.
Page 4: Recommended Use
Recommended use The Rifton Support Station is a Class 1 medical device. It provides front-leaning support during toileting and hygiene care for children and adults with disabilities. When not in use, it folds neatly against the wall. Figure 4a: ﬁ xed conﬁ guration be used as a stand-alone unit with the kneeboard and padded trunk board.
Page 5: Item Dimensions
User and item dimensions User dimensions – inches (cm) Item dimensions – inches (cm) Height 46-80 (117-203) Trunk board size 24 x 24 (61x 61) Important: User height and weight Maximum trunk board height 45 (114) must not exceed the maximum Minimum trunk board height 26 (66) Max.
Page 6: Check Your Order
Check your order The Rifton Support Station comes fully assembled. Do not dispose of packaging materials until you are completely satisﬁ ed that the product is installed properly and working. If your shipment is incomplete or in any way damaged on arrival, please call Customer Service, 800.571.8198.
Page 7: Basic Components
To prevent falls or WARNING injury, do not adjust the height or angle of the trunk board with a client on it. The Rifton Support Station is equipped with two adjustment bars: • The lower adjustment bar Figure 7a: sets the height of the trunk board (A).
Page 8: Accessories
Pivot Conﬁ guration The trunk board can rotate to Figure 8a: facilitate transfers to a stationary toilet. This feature does not function with the kneeboard attached. The trunk board must be horizontal before using the pivoting feature. The rotation of the trunk board Figure 8a: Figure 8a can be set in 15˚...
Page 9: Operation
Operation • Adjust the trunk board to the appropriate height and angle for the user. The recommended height is just below the hips of the user. • Wheel the client to the Figure 9a: Support Station facing the padded concave trunk board. •...
Page 10: Maintenance, Cleaning And Warranty
As needed, clean with disinfectant wipes or a solution of up to 10% bleach. Do not use excessive amounts of water. Do not use pine oil cleaners. Warranty Statement If a Rifton product breaks or fails in service during the ﬁ rst year, we will replace it free of charge.
Page 11: Materials And User Modiﬁ Cations
• Plastic components are typically injection molded from a variety of industrial resins. All materials are latex, lead and phthalates free. User modiﬁ cations To prevent serious injury or death, do not modify or alter Rifton WARNING products or components, or use Rifton products or components in conjunction with products from other manufacturers.
Page 12 Use only replacement parts supplied by Rifton Equipment. We are glad to supply replacement parts. Although Rifton makes every effort to supply correct parts and instructions for repairing or refurbishing your equipment, you are responsible to make sure that the repairs or modiﬁ cations are correctly and safely completed.
