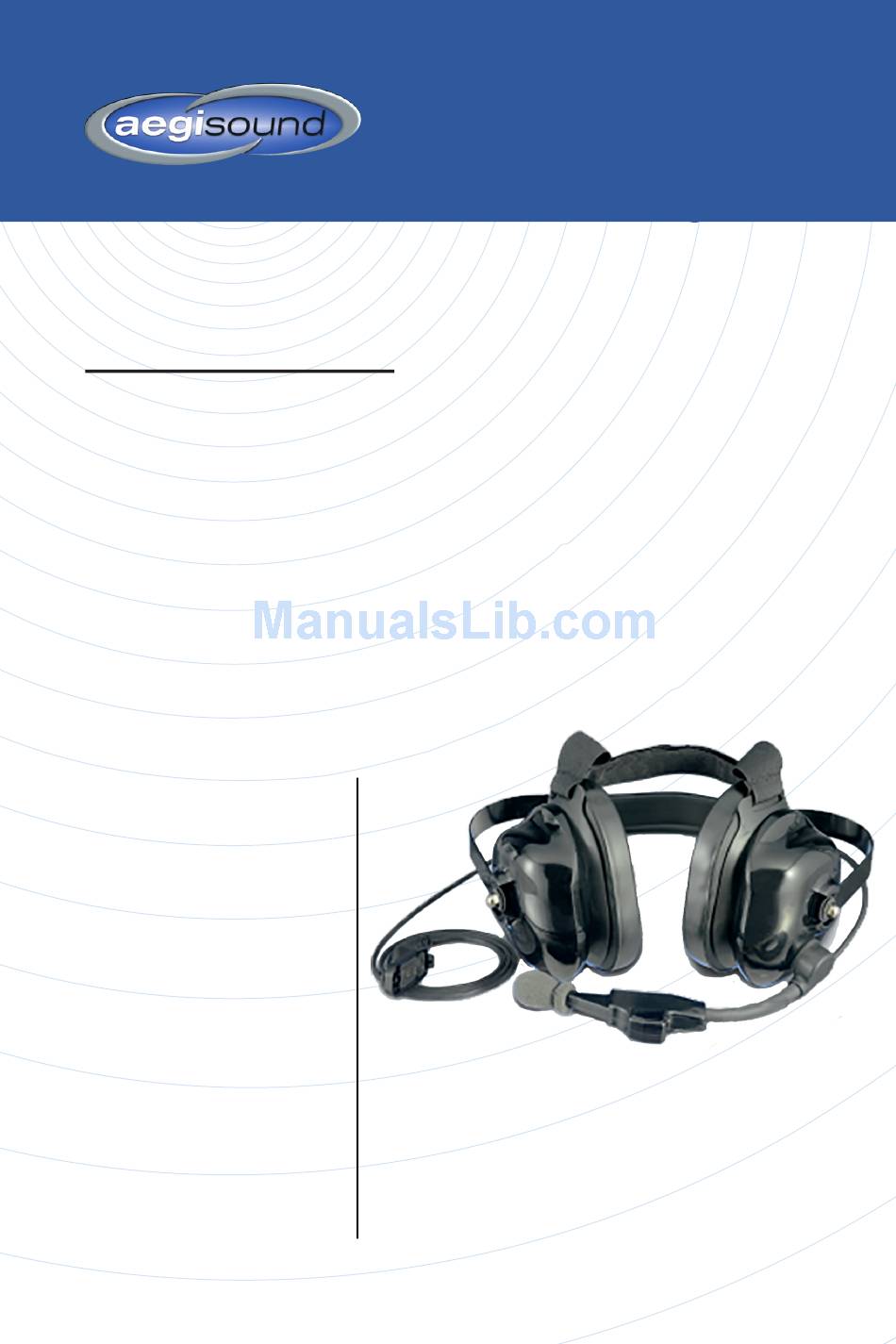

T H E S O U N D O F S A F E T Y
USER MANUAL
Argonaut
IC2
™
Industrial Communication and
Double Hearing Protection System
INSIDE:
Description . .. . . .. . . .. . 2
Features . . . .. . . .. . . .. . 2
Before Proceeding . . .. . 3
Basic Operation. .. . . .. . 4
Donning Headset.. . . .. . 5
Windguard Replacing .. . 6
Earseal Replacing . . .. . 7
Troubleshooting . .. . . .. . 8
Replacement Parts . . .. . 9
IS Rating . . . .. . . .. . 10-11
Warning.. . . .. . . .. . . .. 12
Caution .. . . .. . . .. . . .. 13
Attenuation. .. . . .. . 14-15
Contact .. . . .. . . .. . . .. 16
Advertisement
Table of Contents
Summary of Contents for Aegisound Argonaut IC2
-
Page 1: Table Of Contents
T H E S O U N D O F S A F E T Y USER MANUAL Argonaut ™ Industrial Communication and Double Hearing Protection System INSIDE: Description ... . 2 Features ....2 Before Proceeding . -
Page 2: Description
Description The Argonaut™ IC2 is Aegisound’s industrial communication, double hearing protection system, designed for ambient noise fields above 105 dB. The Argonaut™ IC2 integrates with many commonly used radios via the accessories connector specific to the radio manufacturer and model. -
Page 3: Before Proceeding
Before Proceeding Always evaluate the adequacy of your protective gear before entering hazardous environments. The wearer should ensure that: • The headset and earplugs are fitted and maintained in accordance with the manufacturer’s instructions. Improper fit of this device will reduce its effectiveness in attenuating noise. -
Page 4: Basic Operation
Fitting Earplugs See Aegisound Stereo Communication Earplugs user manual for compatible eartip options and fitting instructions. As applicable, also refer to Aegisound’s LPCCE and FCCCE user manauls for custom earplug fitting instructions. aegisound t h e s o u n d o f s a f e t y... -
Page 5: Donning Headset
Donning Headset Headset may be adjusted Don headset by pulling outward on earcups and by separating the Hook lowering over the ears (earplugs not shown) and Loop fastener that goes over the top of the head and adjusting the length such that the For best headset fits comfortably performance,... -
Page 6: Windguard Replacing
O-ring may be applied over the windguard using a mandrel to aid installation. A 3/8 inch socket is shown here, used as an application tool aegisound t h e s o u n d o f s a f e t y... -
Page 7: Earseal Replacing
Earseal Replacement To remove old earseal, pull the To install the new earseal, stretch earseal away from cup over the the flap of the earseal slightly flanged lip of the cup over the flanged lip of the cup ARGONAUT™ IC2 USER MANUAL... -
Page 8: Troubleshooting
• Verify 3.5 mm connector is clean and fully in only one ear inserted • There is likely a problem with one of your earplugs - contact the manufacturer aegisound t h e s o u n d o f s a f e t y... -
Page 9: Replacement Parts
Replacement Parts To reorder parts or to order replacement parts, please contact Aegisound at (866) 951-1027 or visit our website at www.aegisound.com. Please refer to the following part numbers when ordering: Part Number Description Contact Aegisound for Argonaut™ IC2 Headset... -
Page 10: Is Rating
Intrinsically Safe (IS) Rating If labeled with an IS sticker, the Argonaut IC2 System (comprised of communication microphone, headset, communication earplugs, and associated cables) when properly used, is approved as Intrinsically Safe (IS) and is compliant with UL 913 Class I, Division 1, Group D. -
Page 11: Is Rating
(e.g., cracked housing). An explosion or fire may result. • Do not disassemble an Argonaut IC2 unit in any way that exposes the internal electrical circuits of the unit. Use of any unapproved combination of the Argonaut IC2 high-noise... -
Page 12: Warning
Failure to comply with general safety precautions violates the safety intent of this product and may result in bodily harm or damage to the product. Aegisound claims no liability for damage or injury resulting from a failure to comply with the safety precautions outlined in this manual. -
Page 13: Caution
Ear inflammation, otitis externa, or infection could result from the use of dirty earplugs. In the event of pain or discharge from the ear canal, seek medical consultation. Aegisound custom fit earplugs are made from an immunologically inert material allergic reactions would be rare. -
Page 14: Attenuation
Argonaut IC2 with Compy Foam Earplugs tested to ANSI S3.19-1974 Frequency (Hz) 500 1000 2000 3150 4000 6300 8000 Mean (dB) 40.7 40.8 47.9 45.8 45.3 49.7 51.3 50.5 50.8 Stand. Dev. (dB) Mean-2SD (dB) 30.1 31.0 39.3 37.0 38.1 39.5... - Page 15 Argonaut IC2 with LPCCE Earplugs tested to ANSI S3.19-1974 Frequency (Hz) 500 1000 2000 3150 4000 6300 8000 Mean (dB) 33.9 37.7 44.8 43.0 41.5 49.6 52.2 49.6 48.8 Stand. Dev. (dB) Mean-2SD (dB) 24.7 31.9 36.8 35.6 34.9 41.8 44.0...
-
Page 16: Contact
AEGISOUND 825 Park Street 866.951.1027 (Toll Free) Christiansburg, VA 24073 USA info@aegisound.com M A D E I N T H E U S A US Patents 6,963,649, 7,248,708 and 7,245,726 aegisound t h e s o u n d o f s a f e t y...
