General-Purpose AC Servo

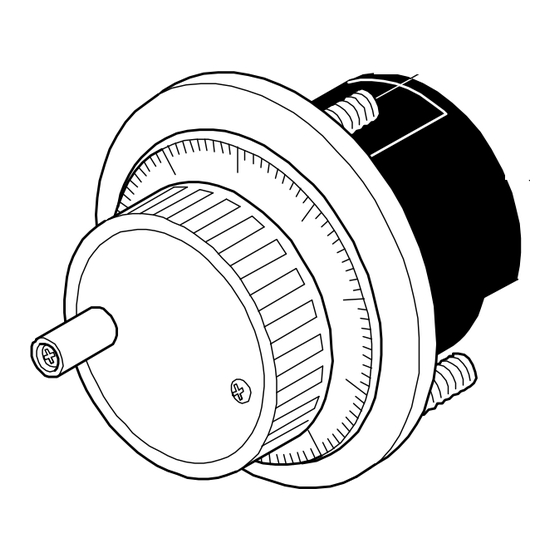

Manual Pulse Generator
Model
MR-HDP01
Installation Guide

1. SPECIFICATIONS

Item
Power supply
Interface
Pulse signal form
Pulse resolution
Maximum speed
Temperature range for operation
Temperature range for storage
2. DIMENSIONS
3. MOUNTING
4. TERMINAL ASSIGNMENT
+5 to
12V
0V
A
B
IB(NA)67182ENG-C(1704)MEE
C
Voltage
Consumption current
Packing t2.0
3.6
0.27 ± 0.5
16
20
Panel cut
3-φ4.8
Equal intervals
Signal name
+5 to 12V
0V
Common for power and signal
A
B
HEAD OFFICE: TOKYO BLDG MARUNOUCHI TOKYO 100-8310
Printed in Japan
Thank you for choosing this product. This guide is the installation guide for the
Manual Pulse Generator (MR-HDP01). To ensure safety, always read through this
guide and the instruction manual of the servo amplifier used before using this
product. What is not written in this guide is described in the instruction manual of
the servo amplifier.
Please forward this guide and other attached documents to the customer who will
use this product. Also, always keep this guide and other documents.
Specifications
4.5 V DC to 13.2 V DC
60 mA or less
Maximum output current: 20 mA for open collector output
A-phase/B-phase, 2 signals of 90˚ phase difference
100 pulses/rev
Instantaneous maximum: 600 r/min, normal: 200 r/min
-10 °C to 60 °C
-30 °C to 80 °C
3-M4 stud L10
P.C.D72 Equal intervals
8.89
Description
Power supply input
A-phase output pulse
B-phase output pulse
Specifications are subject to change without notice.
[Unit: mm]
Invalid to use except M3 × 6
7.6
[Unit: mm]
