SCREENWAVE JWR2100 User Manual

Wireless presentation system with dual band ac2100 router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
JWR2100 User Manual v. 01
Wireless Presentation Systemwith Dual Band AC2100 Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JWR2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCREENWAVE JWR2100

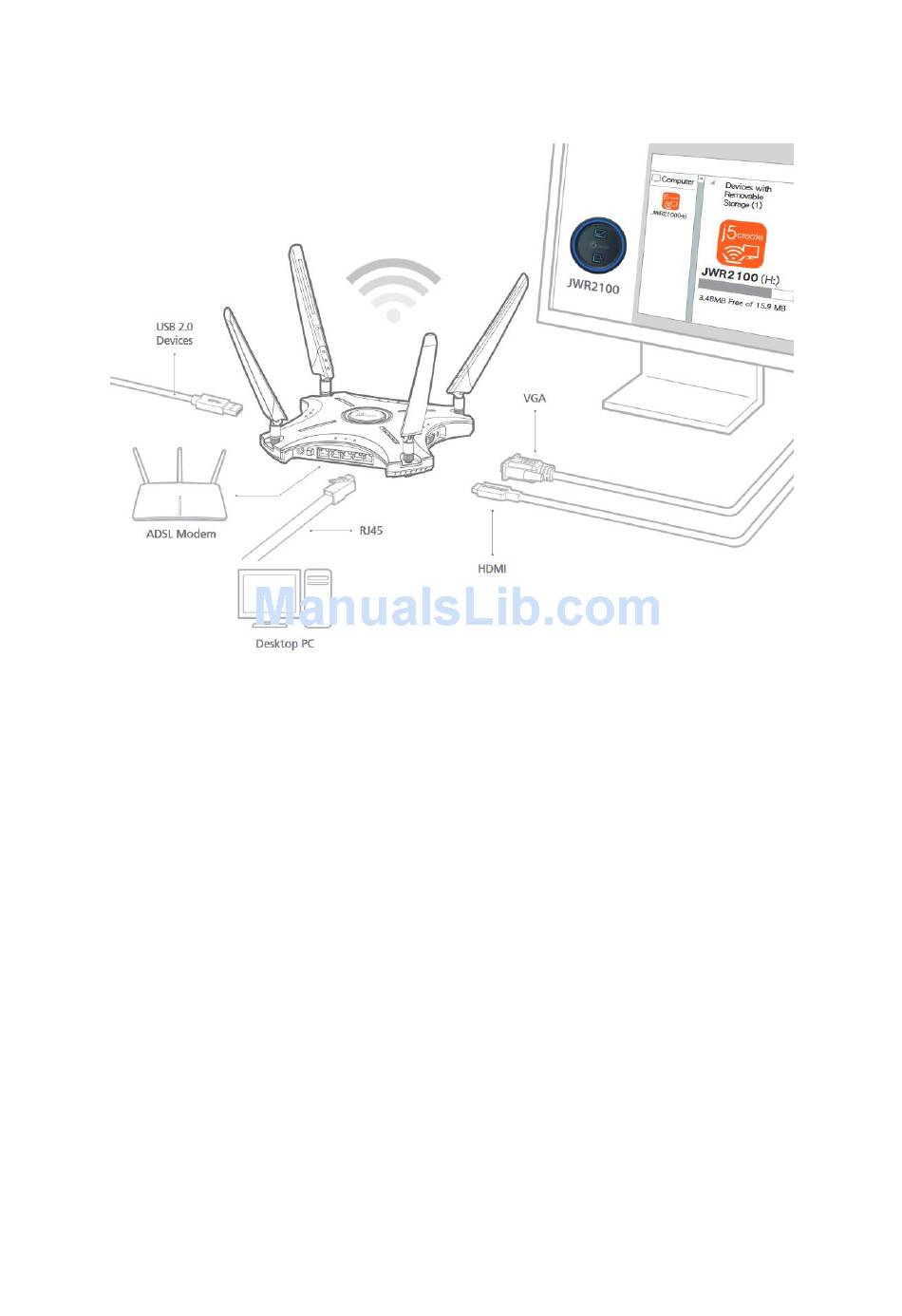

  • Page 1 JWR2100 User Manual v. 01 Wireless Presentation Systemwith Dual Band AC2100 Router...

  • Page 2: Table Of Contents

    Contents Chapter 1: Know your JWR2100 router Package content ..............................3 Description for the appearance of JWR2100 router ..................3 Chapter 2: Build your network Router location ..............................4 System requirements of product ........................4 Build your JWR2100 router ..........................5 Wired connection ...............................

  • Page 3: Chapter 1: Know Your Jwr2100 Router

    Chapter 1: Know your JWR2100 router Package content: Please check if all accessories of JWR2100 are included in the box. □ JWR2100 wireless router □ RJ45 cable □ Power converter 12V-2A □ Quick installation guide □ Warranty card □ A key pad (Go to j5create website to contact us for additional key pads.) ☆...

  • Page 4: Chapter 2: Build Your Network

    ☆ Reminder Please check if any network device is available in your computer. If using the single-band IEEE 802.11 b/g/n NIC when receiving the wireless signal from JWR2100, you can only receive the 2.4GHz band. If using the single-band IEEE 802.11 a/b/g/n/ac NIC when receiving the wireless signal from JWR2100, you can receive the 2.4GHz or 5GHz band.

  • Page 5: Build Your Jwr2100 Router

    Build your JWR2100 router: Please install the four antennas in the package onto the router in clockwise direction.

  • Page 6: Wired Connection

    Wired connection 1. Insert the AC adapter of wireless router into the DC-IN port and plug in the power cord. 2. Use the RJ-45 cable to connect your computer to the LAN port of wireless router. 3. Make sure that LAN port indicator of the wireless router flashes and the wired connection is completed. Wireless connection 1.

  • Page 7: Set Up The Tcp/Ip Setting Of System

    Set up the TCP/IP setting of system Windows setting: TCP/IP receives the IP address automatically. 1. Click Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections 2. Click Internet Protocol Version 4 (TCP/IPv4) and click “Properties”. 3.

  • Page 8: Chapter 3: Management Setting Interface Of Wireless Router

    -------------------------------------------------------------------------------------- Chapter 3: Management setting interface of wireless router JWR2100 comes with a smart web page GUI, allowing you to set up router functions via various web browsers, such as Internet Explorer, Firefox, Chrome and Safari. Network setup wizard When using this system for the first time, you will enter the network setup wizard after login.
  • Page 9 4. Set the time zone of your country and click “Next”. 5. You can adjust the external network setting if necessary. Click “Next” after confirming the setting. 6. You can adjust the internal network setting if necessary. It is suggested to use the default setting. Click “Next”...

  • Page 10: General Setting

    General setting Description for the network map: The basic setting is completed. Enter the home screen of router setting afterwards. Check the current status of 2.4G and 5G from the "Network Map", such as SSID, security mode, encryption setting, network switch and output screen status.
  • Page 11 Quick setting of 2.4G and 5G network: Set your wireless network name (SSID), Wi-Fi switch, country/region, security mode/encryption method/verification password and key update cycle. Click “Apply” after completing the setting. Wait for the system to reboot and the setting will be completed.
  • Page 12 Connection of external USB drive: Check the status of your current USB drive. You can remove the USB safely, and set the FTP and switch of network neighborhood. Click “Apply” after completing the setting. Wait for the system to reboot and the setting will be completed.

  • Page 13: Visitor Network Setting

    Visitor network setting The characteristic of this function is that you can set a set of wireless AP separated from the internal network while connected to the Internet in the 2.4G and 5G bands, respectively. You don't need to worry about data leakage while offering connection to visitors, which is convenient and safe.

  • Page 14: Parental Control Setting

    Parental control setting The parental control setting allows you to limit the network usage time for the user. You can set the usage time for each user easily by following instructions on the screen. 1. Select the user you want to control from the [User schedule] table. 2.

  • Page 15: Usb Application

    USB application The JWR2100 router provides a USB 2.0 port for USB device connection. Plug in the USB device before operating this function. Plug in the flash drive or printer depending on your need. Function of USB storage device: The user can save the file on the USB shared from the router.
  • Page 16 ☆ Reminder To open the FTP, the client must connect to 10.10.10.254 and use the account and password that are the same with as the one used with the management interface. -------------------------------------------------------------------------------------- Click the introduction of the top-bottom function of "Network Neighborhood". 1.

  • Page 17: Wireless Network 2.4G Setting

    Set the DLNA switch and the name of the DLNA server you wish to set. Click “Apply” after completing the setting. Wait for the system to reboot and the setting will be completed. ☆ Reminder The wireless router supports most of the formats of the USB storage device, such as FAT and NTFS. It is suggested to remove the USB device from the management interface before removing it physically.
  • Page 18 Solid mode for high transmission rate: This setting page is for 802.11n. You can set the 802.11n network setting of the router. It is suggested to keep the default system setting if you don't have any special needs. Click “Apply” after completing the setting. Wait for the system to reboot and the setting will be completed.
  • Page 19 If you select the WPA/WPA2 personal mode, you can enter an 8-64 bit password for the verification password. Remote display: This setting allows you to decide whether users can see your key of wireless login when JWR2100 carries out the wireless projection.
  • Page 21 This picture shows the SSID and key you will see on the output screen when you activate to display the verification password/WEP key. This is the picture you will see on the output screen when the verification password/WEP key is not displayed. WPS setting: You can connect to the WPS at the user end easily by any of the methods below.
  • Page 22 Workstation list: This page shows the usage condition of the user connected to the router now. Statistics This page allows you to check the Wi-Fi package transmission. You can press “Reset” or “Refresh” to obtain the current data.

  • Page 23: Wireless Network 5G Setting

    Wireless network 5G setting This page is for the advanced setting of 5G wireless network. You can make advanced settings for the security of wireless network here. It is suggested to keep the default setting if you don't have any special needs. Refer to the advanced setting of Wi-Fi if you wish to change it.
  • Page 24 Advanced setting: You can set the 5G advanced setting. You can customize the BG protection mode of 5G and transmission rate. It is suggested to keep the default system setting if you don't have any special need. Click “Apply” after completing the setting.
  • Page 25 WPA/WPA2 personal security mode, you can use the AES or TKIP/AES encryption.You can define your own verification password and key update cycle. Remote display: This setting allows you to decide whether users can see your key of wireless login when JWR2100 carries out the wireless projection.
  • Page 26 This picture shows the SSID and key you will see on the output screen when you activate to display the verification password/WEP key. This is the picture you will see on the output screen when the verification password/WEP key is not displayed. WPS setting: You can connect to the WPS at the user end easily by any of the method below.
  • Page 27 Workstation list: This page shows the usage condition of the user connected to the router now. Statistics This page allows you to check the Wi-Fi package transmission. You can press “Reset” or “Refresh” to obtain the current data.

  • Page 28: Internal Network Setting

    Internal network setting Go to the "Advanced setting" at the left side of the setting page and click on the internal network to enter the advanced setting page of the internal network. You can make advanced settings for the internal network of router on this page, such as the host name, network address, network mask, and manual or automatic settings for the DHCP server.

  • Page 29: External Network Setting

    "Apply" for the change of setting to take effect. IPv6 setting The JWR2100 wireless router supports IPv6, such as the static IPv6, quick tunneling deployment (6RD), double tunneling protocol (DS-Lite) and PPPoEv6. After completing the setting, press "Apply" for the change of setting to...

  • Page 30: Virtual Private Network

    Virtual private network The JWR2100 router supports the VPN. Your internal network can connect to the WAN via router by activating this function. A device in the external network can send or receive data like in the internal network. After completing the setting, press "Apply"...
  • Page 31 System information In this page, you can change your registration account and password of administrator. Check your password again after changing it. Press "Apply" for your new password to take effect.

  • Page 32: Ntp Setting

    NTP setting Use this NTP setting function to set your time and time zone of your router. Press "Apply" for your new setting to take effect after change. Configuration management In the configuration management page, you can export the current setting of your router for backup or import your previous setting.

  • Page 33: Upgrade Firmware

    Upgrade firmware You can upgrade the firmware of your router or display port (HMID/VGA) in this page if any firmware update for the router is available for download. The router will reboot automatically after the update is complete. The firmware update will be completed after reboot.

  • Page 34: Chapter 4: Introduction Of The Wireless Projection Function

    Chapter 4: Introduction of the wireless projection function The JWR2100 router comes with the j5create wireless projection function. The user can project the screen of platforms such as Windows/Mac/iOS/Android onto the HDMI/VGA output screen via the wireless signal of router.Follow the setting below to create your wireless projection environment.
  • Page 35 Connect the keypad to Windows/Mac/Android. is the fullscreen/screen minimization function. Click twice to return the screen projected to the preview screen of JWR2100. On the projection preview screen, you can select the location of the screen being output. If you click these buttons while using a document, you can check the upper/lower page of the document or scroll the document, depending on the document attribute.
  • Page 36 USB port. The LED of keypad is illuminated. Insert the HDMI or VGA cable of the monitor into the display port of the JWR2100 router, where the signal will be output to.
  • Page 37 USB port. The LED of keypad is illuminated. Connect the HDMI or VGA cable of the external monitor to the display port of the JWR2100 router. Check the SSID and password for the connection of JWR2100 Remote display on the display monitor.

  • Page 38: Voice Output In Android

    Key Pad for iOS App. Connect the wireless signal of the iOS device to the Wi-Fi SSID of the JWR2100 router. Refer to the SSID and password shown on the output screen. (The external monitor shows the SSID for 2.4G and 5G for the Remote Display. The default password 12345678 will show for the first connection.) Go to Apple Store to download "JWR2100"...
  • Page 39 Browse the file in the path of the Key Pad for iOS App. Browse the photo in the path of the Key Pad for iOS App. Play the video shot by the camera. A browser is built in the Key Pad for iOS App. You can output the image under this browser to the screen.
  • Page 40 Stop the image output. Expand the output screen to full screen view. App cloud service switch, media player caption code, clear app temporary archive settings ☆ Reminder Install iTunes if you wish to add/manage files.

  • Page 41: Chapter 5: Troubleshooting

    2. Check if your wireless card can acquire the IP address dynamically. 3. Check if the physical connection of network is correct and check if the setting regarding the wireless connection of the JWR2100 router is accurate. Q2: What should I do if I forgot about the wireless password? A2: Log in the router and reset your 2.4G / 5G wireless signal.
  • Page 42 1. Check if the firmware version of the wireless router has been updated to the latest version. (Contact the j5 customer service center to check the version.) 2. Check if the WAN port of your wireless router is connected properly. 3.
  • Page 43 Q17: Why does the screen turn black when playing the video with HDCP? A17: The JWR2100 router does not support the digital content protection (HDCP). Q18: After my Android phone is connected to the keypad, why is there no response or voice output? A18: Only phones with Android 6.0 and above support the USB keypad and voice output.
  • Page 44 Q 21 : Why does my device can not see the 5G SSID? A 21 : This question indicates that your device currently does not support the JWR2100 default band. Please go to 5G Settings page → Support channel → modify the settings to Channel 36~48 If the band is already set to channel 36-48 and it still doesn’t work, then your device cannot be used in this area.
  • Page 45 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
