SONAMAGNA 9 in 1 Drive User Manual

Analog
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER
GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9 in 1 Drive and is the answer not in the manual?

Questions and answers

Summary of Contents for SONAMAGNA 9 in 1 Drive

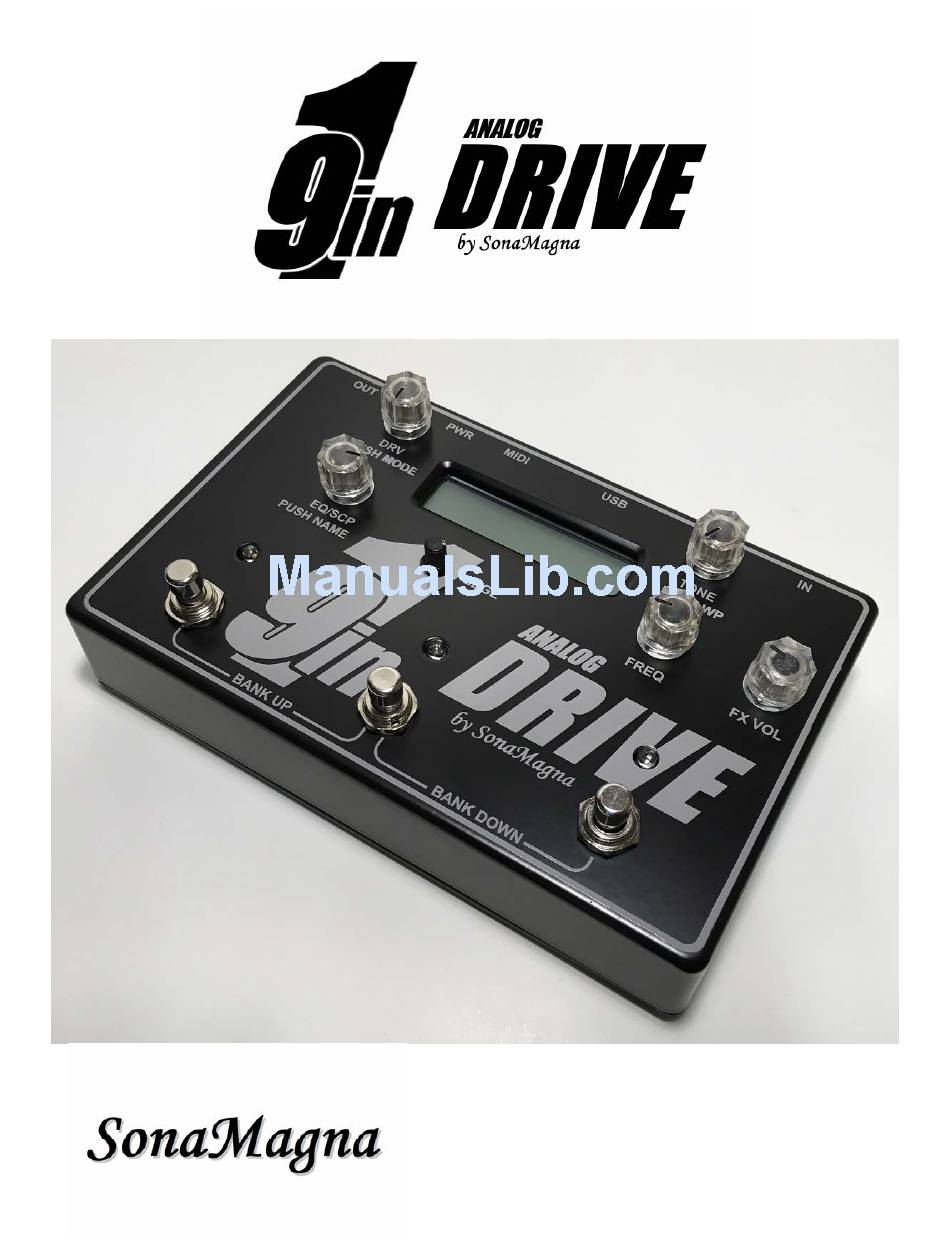

  • Page 1 USER GUIDE...

  • Page 2: Limited Warranty

    LIMITED WARRANTY Your 9 in 1 Drive pedal, when used solely in the US, is guaranteed against failure for ONE YEAR unless otherwise stated. SonaMagna will service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping costs are the responsibility of the customer.
  • Page 3 FIRMWARE. DISPOSAL / TRADE IN PROGRAM Protect the environment by not disposing of this product with household waste. Check your local authority for recycling advice and facilities. Alternatively, visit the SonaMagna website or email us at info@sonamagna.com for information...

  • Page 4: Table Of Contents

    9 in 1 Drive 870001 Rev A_1 9 in 1 Drive Thank you for purchasing the by SonaMagna. To get the most out of this product, we urge you to thoroughly read this user guide before use. CONTENTS OVERVIEW ........................5 SETUP ...........................

  • Page 5: Overview

    - no "edit", "save", or "menu" buttons! - make it possible to replace multiple stomp-boxes at a fraction of the cost and space. MIDI control and USB included. SonaMagna pedals are built using time proven, robust techniques.

  • Page 6: Setup

    9 in 1 Drive 870001 Rev A_1 SETUP 9 IN 1 DRIVE Plug in your guitar, amp, and power supply to the . The LCD will light up the color of the current bank (Red), display a quick splash screen with the firmware revision, and will then display that the effects are off and the current bank is “Red”, as shown below.

  • Page 7: Presets & Banks

    9 in 1 Drive 870001 Rev A_1 PRESETS & BANKS 9 IN 1 DRIVE effect presets are arranged in 3 banks of 3 presets each, providing a total of 9 tone presets in 1 pedal. To enable an effect preset, press a footswitch. The LCD will display the preset name. The LED above the pressed footswitch will light up and its color will indicate the currently selected bank.

  • Page 8: Basic Control Settings

    9 in 1 Drive 870001 Rev A_1 BASIC CONTROL SETTINGS 9 IN 1 DRIVE was designed with the idea of making a programmable pedal as easy to setup as a regular stomp-box. With that in mind, you’ll see there are no edit, save, or menu buttons on the pedal. Whenever a preset is active, you can change its settings by simply turning or pressing the knobs, similar to how you’d use a regular stomp-box.

  • Page 9: Drive Modes & Eq

    9 in 1 Drive 870001 Rev A_1 DRIVE MODES & EQ The DRV control knob sets the amount of drive gain. The DRV knob also acts as a button and can be pressed to toggle through 6 different drive modes: clean mode “cln”, overdrive mode “od”, distortion mode “ds”, fuzz mode “fz”, metal distortion mode “md”, and metal fuzz mode “mf”.

  • Page 10: Preset Name

    9 in 1 Drive 870001 Rev A_1 PRESET NAME 9 IN 1 DRIVE Each preset in the can be given a unique name to help you remember what type of tone the preset is setup for. When a preset is active, pressing the EQ control knob changes the LCD so that you can modify the preset name.

  • Page 11: Using Midi

    9 in 1 Drive 870001 Rev A_1 USING MIDI USING MIDI TO CONTROL ANOTHER EFFECT UNIT: 9 IN 1 DRIVE 9 IN 1 DRIVE The MIDI jack on the is normally configured as MIDI OUT. Connect a MIDI cable from the ’s MIDI...

  • Page 12: Update Firmware

    PC running Win7 is required to update firmware. Check your pedal’s splash screen for its current version of firmware and check the sonamagna.com website to see if a newer version is available. To update the control firmware, perform the following steps: 1.

  • Page 13: Specifications

    9 in 1 Drive 870001 Rev A_1 SPECIFICATIONS EFFECT CONTROL VALUE RANGES Control Range Notes DRV (knob) 1 to 32 1=min distortion, 32=max distortion (can get loud!) Mode “cln”, mode “od”, Toggles through clean, overdrive, distortion, fuzz, metal DRV MODE (button) mode “ds”, mode “fz”, mode...

  • Page 14: Factory Preset Values

    9 in 1 Drive 870001 Rev A_1 FACTORY PRESET VALUES - 14 -...

  • Page 15: Custom Preset Values

    9 in 1 Drive 870001 Rev A_1 CUSTOM PRESET VALUES - 15 -...
  • Page 16 9 in 1 Drive 870001 Rev A_1 SonaMagna, LLC Web Site: https://sonamagna.com/ Email: info@sonamagna.com 9 in 1 Drive patent pending: Application Number 62505352 - 16 -...
