- Page 1 HDMI Modulator T100 User’s Guide...
-
Page 2: Table Of Contents
CONTENTS ►CONFIGURATION EXTRACTION (CFG) ..7-8 ►INTRODUCTION .......... 3 ►CONFIGURATION IMPORT (CFG) ....8 ►FEATURES ........... 3 ►FAST PRE-CONFIG FUNCTION / ►TECHNICAL SPECIFICATIONS ....4 50 ID’S SELECTABLE ........9 ►RF SPECIFICATIONS ........4 ►TROUBLESHOOTING ........ 10 ►CONNECTIΟΝ & OPERATION ....5 ►INSTALLATION EXAMPLE ...... -
Page 3: Introduction

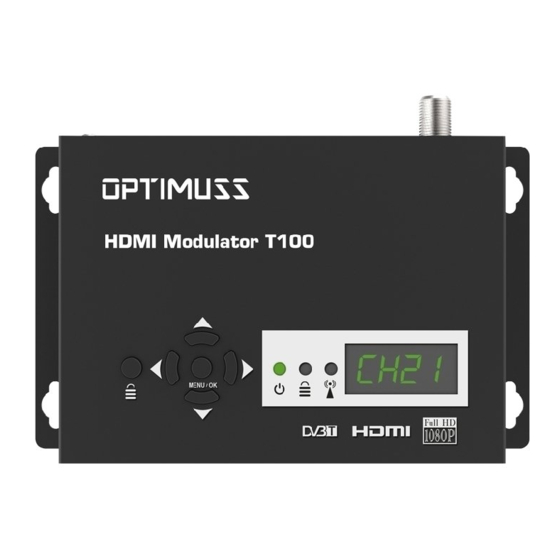

►INTRODUCTION Digital single-channel FULL HIGH DEFINITION modulator. HDMI signal input from HDMI source (Terrestrial & Satellite TV receivers, Cameras, DVD’s, DVR’s, etc) can be converted up to FULL HIGH DEFINITION 1080p, Digital Terrestrial DVB-T signal output, in VHF/UHF band. Produces excellent quality signal output, combined with reliable, easy and fast configuration with the Pre- Config Function and stable operation in any installation scheme. -
Page 4: Technical Specifications
►TECHNICAL SPECIFICATIONS Processor 200MHZ 32Bits RISC Memory DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit HDMI Input HDMI v1.4a USB Type USB 2.0 HOST, Fat32 support Power Consumption 10W max, 100-240V AC to DC adapter 5V 2A Video Encoder MPEG1, MPEG2 MP@HL, MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP@level4.1, MP@level4.1 Aspect Ratio 16:9 wide screen, 4:3 letter box, 4:3 pan scan... -
Page 5: Connectiον & Operation
►CONNECTIΟΝ & OPERATION 1. Connect an HDMI Cable from HDMI source device to the HDMI Modulator HD in 2. Connect an RF Cable from RF OUT to the RF Network 3. Connect the power supply to the HDMI Modulator 4. Select the desired RF Channel output 5. -
Page 6: Main Menu
►MAIN MENU To enter the main menu options, press once the Menu/OK key and use the Left or Right keys to navigate within the main menu. FACT: Factory defaults. Press CH: Shows the current RF channel output. Use the keys key UP to restore factory Up &... -
Page 7: Configuration Extraction (Cfg)
►CONFIGURATION EXTRACTION (CFG) For an advanced configuration of the HDMI modulator, you must extract the configuration file to a USB drive, modify it and import it again in the HDMI modulator. To extract the configuration file named jedi_config.txt*, you must connect a USB drive** to the USB slot, enter the Main Menu, select CFG and press key UP to extract the file to the USB drive. -
Page 8: Configuration Import (Cfg)
<LCN>1<\LCN> LCN: 1 to 999 <TSID>1<\TSID> Transport Stream ID: 1 to 65534 Original Network ID: 1 to 65534 <ONID>1<\ONID> <NetworkID>1<\NetworkID> Network ID: 1 to 65534 <audio _ bitrate>3<\audio _ bitrate> Audio Bitrate: 0=64kbps, 1=96kbps, 2=128kbps, 3=192kbps, 4=256kbps, 5=320kbps <PCR _ GAP>0<\PCR_GAP> PCR Gap: Audio/Video sync max +-5 <audio _ format>0<\audio _ format>... -
Page 9: Id's Selectable
►FAST PRE-CONFIG FUNCTION / 50 ID’S SELECTABLE This feature enables the user to operate the unit hassle free by automatically setting the appropriate broadcasting table information to provide a more convenient installation, easy to adjust anytime with no tools required*! This feature is important when there are several HDMI modulators operating within the same TV coaxial distribution network. -
Page 10: Troubleshooting
►TROUBLESHOOTING The device does not boot • Make sure the power supply is connected • Check power supply voltage I cannot export configuration file • Make sure your USB drive is working • Make sure that the file system is FAT32 I get “No signal”... -
Page 11: Installation Example
4 WAY RF SPLITTER HDMI Modulator T100 HDMI Modulator T100 HDMI Modulator T100 HDMI Modulator T100 MENU MENU MENU MENU MODULATOR 1 MODULATOR 2 MODULATOR 3 MODULATOR 4 id01 id02 id03 id04...
