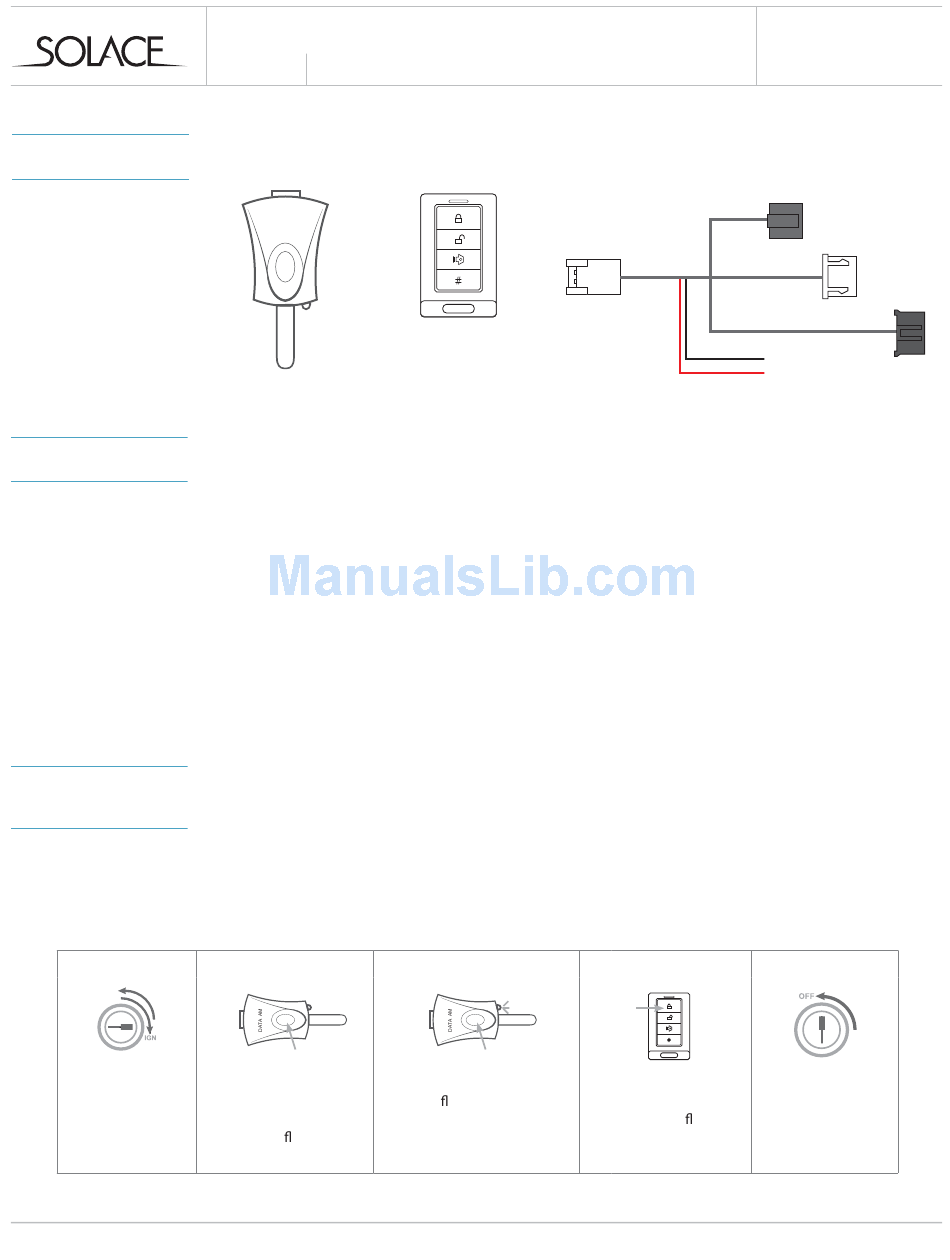

Solage DATA-AM ANTENNA Installation Manual

PARTS

PROGRAMMING

REMOTE
PROGRAMMING
1
STEP
Turn the
Ignition ON then
OFF 2x leaving it in
the ON position at
the 2nd time.
solaceremotestarters.com
MODEL DATA-AM ANTENNA
ANTENNA
DATA AM

DATA PROTOCOL SELECTION

With the Antenna plugged in and powered up:
1 Leave Ignition in OFF position
2 Press programming button (antenna button) 8x within 10 seconds (White LED will flash 2x)
3 Choose your protocol below by pressing the programming button:
TYPE 1 - Press 2x - Solace RF (Default)
TYPE 2 - Press 4x - iDatalink RF
TYPE 3 - Press 6x - Fortin RF
TYPE 4 - Press 8x - D2D
TYPE 5 - Press 10x - Future Use
4 After 3 seconds White LED will flash the number of times according to your selection.

REMOTE PROGRAMMING - ONLY REQUIRED FOR D2D

Follow the "Remote Programming Procedure" from the manufactures programming instructions.
Visit the appropriate website or download the "LoRa Antenna Full Guide w/modules" at
www.solaceremotestarters.com
For Devices that do not have a remote coding procedure follow the procedure below.
2
STEP
2X
Press and release the
programming button on until LED ashes turns on solid.
the antenna 2 times.
The LED will ash 1x then
2x.
REMOTES
x2
REMOTES MAY BE
DIFFERENT THAN
PICTURED
3
STEP
2X
Press and hold for 3 seconds
Release programming
button.
DAC-ADPT
ANTENNA IN
4
STEP
x1
Press the button on each
transmitter. LED on
antenna will ash 1x
for each remote
programmed.
INSTALLATION
GUIDE
RF CONN 1
RF CONN 2
RF CONN 3
BLACK - GROUND
RED - 12V+ (FUSED)
5
STEP
Turn the
Ignition OFF
to exit
programming.
REV.02/02/18
