Poolguard DAPT-WT Installation Instructions

PG DAPT-WT Manual 020717:Layout 1 2/7/17 3:06 PM Page 1
6. LOW BATTERY FUNCTION & REPLACEMENT
When the 9-volt battery in the door alarm is low and needs to be
replaced, the horn will chirp once every 10 seconds. To replace the 9-
volt battery, remove the old 9-volt battery then wait at least 30 seconds
before connecting the new 9-volt battery. The 9-volt battery life for the
door alarm is approximately 6 months. Test your door alarm weekly by
opening the door and allowing the alarm to sound. When the battery
power in the Outdoor Wireless Transmitter is low the door alarm will give
3-4 QUICK BEEPS instead of ONE BEEP like it does when you are
entering the dwelling, see section 5B for normal operating conditions.
The Outdoor Wireless Transmitter battery life is several years, this bat-
tery is not replaceable. Contact Poolguard to purchase a replacement
Outdoor Wireless Transmitter, Model #OWT.

WARRANTY AND REPAIRS

POOLGUARD is sold with a limited warranty to cover defects in parts
and workmanship for one year from date of purchase. (Retain proof of
purchase). If Poolguard exhibits a defect, please call our Customer
Service department at 1-800-242-7163. Unauthorized returns will not be
accepted. Proper repair is only ensured when the unit is returned to the
www.poolguard.com
manufacturer. Visit our website at
your warranty registration information.
www.poolguard.com
REV. 02-17
7.
INSTALLING MORE THAN ONE DOOR ALARM
IMPORTANT: If you are installing more than one of these Door
Alarms at your residence, follow these instructions and Install
the 9 volt batteries and Door Alarms one at a time.
• Install a 9 volt battery into the 1st Door Alarm and install the
Door Alarm and Outdoor Wireless Transmitter according to
the manual. Now press and hold the Outdoor Wireless Transmitter
Pass Thru Switch for 2 to 4 seconds until the Door Alarm gives
ONE BEEP. This ONE BEEP means that the installation is now
complete and you can now install the next Door Alarm.

SWIMMING POOL SAFETY TIPS

• Supervise children at all times.
• Never permit swimming alone. Never leave a child alone, even
to answer the telephone.
• Always remove the entire solar cover from a pool before
swimming.
• Remember that alcohol and water safety do not mix.
• Have your pool area fenced and the gate locked to prevent
unauthorized entry to the pool, and install a gate alarm.
• Lock and secure all doors in the house which permit easy
to fill out
access to the pool, and install a door alarm.
• Have a responsible adult teach swimming and water safety to
your children.
• Maintain clean, clear water in the pool.
• Do not swim during electrical storms.
• Do not permit bottles, glass, or sharp objects to be used
around the pool.
• Ask your pool dealer how you can improve your pool
safety––they will be glad to assist you.
• Above all: remember that common sense, awareness, and
caution will allow you to enjoy your pool.
8. INSTALLATION OF OPTION L SCREEN DOOR KIT

CONNECTING DOOR ALARM TO SENSOR SWITCHES

READ THE DOOR ALARM MANUAL FOR INSTALLATION ON ONE DOOR FIRST:
THE SENSOR WIRES ARE PERMANENTLY CONNECTED TO THE DOOR
ALARM. CONNECT BOTH SENSOR WIRES COMING FROM THE DOOR ALARM
TO THE SENSOR SWITCH ON THE DOOR FRAME. THEN USE THE SUPPLIED
JUMPER WIRES TO CONNECT TO THE SCREEN DOOR SENSOR SWITCH
(SEE DIAGRAM BELOW). THE TWO SENSORS SHOULD BE HOOKED UP IN
PARALLEL WITH EACH OTHER.
• THE PLASTIC COVERS ON THE SENSOR SWITCHES & SENSOR
MAGNET MUST BE REMOVED BEFORE INSTALLATION
• SWITCHES GO ON THE FRAME BY THE DOOR
• MAGNETS GO ON THE DOOR ITSELF – SEE PICTURE IN MANUAL
EQUIPMENT NEEDED
A. ONE DOOR ALARM AND 2 MOUNTING SCREWS
B. ONE SET OF SENSOR SWITCH AND SENSOR MAGNET AND 4 SCREWS
– FOR DOOR FRAME & DOOR
C. ONE SET OF SENSOR SWITCH AND SENSOR MAGNET, JUMPER WIRES,
AND 4 SCREWS
– FOR SCREEN DOOR FRAME AND SCREEN DOOR
IF YOU HAVE ANY QUESTIONS CALL US AT 1-800-242-7163
SCREEN DOOR MAIN DOOR
SENSOR SENSOR
SWITCH SWITCH
DOOR ALARM
LED
JUMPER
WIRES
Figure 5
SENSING
WIRES
DOOR ALARM

Installation Instructions

MODEL DAPT-WT
MEETS UL 2017

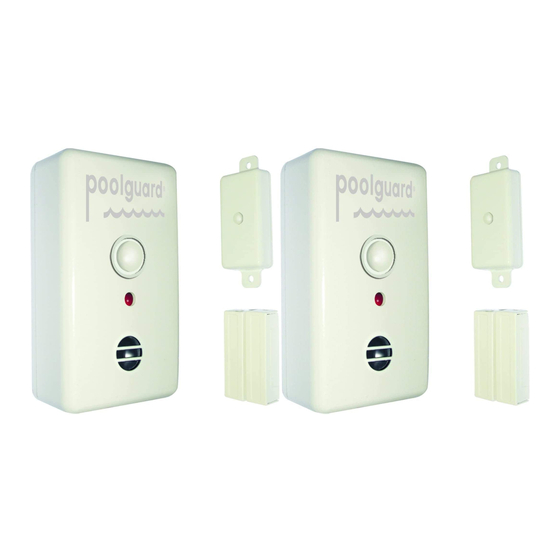

DOOR ALARM
SENSOR
SWITCH
LED
SENSOR
MAGNET
SENSING
WIRES
The horn is 85dB at 10 feet
IMPORTANT
PASS THRU
SWITCH
READ THOROUGHLY BEFORE USING ALARM
The product has been designed to aid in the detection of unwanted
HORN
intrusions into unsupervised areas. POOLGUARD DAPT-WT IS A
SAFETY ALARM SYSTEM AND NOT A LIFE SAVING DEVICE. It
should be used in conjunction with the safety equipment currently in use
and should not affect existing safety procedures.
PASS THRU
SWITCH
HORN
Figure 1
