Connecting to the Fire Alarm Link (if needed)

1. Shut off the 120 VAC to the power supply.
2. Remove the jumper wire from "FIRE"
terminal. (see fig 5)
3. Connect to normally closed fire alarm relay.
4. Restore AC voltage to power supply

TROUBLESHOOTING

Symptom
Possible Cause
Possibilty 1- Power supply is too hot,
• Power supply makes a
microprocessor is shutting the power
beeping sound
supply down.
Possibility 2- Fire alarm link removed or
Fire alarm contact broken or loose
EL Exit device can't fully
Possibility 1- Wire gauge from power
retract latch
supply to exit device too small
Possibility 2- Distance from Power
Supply. to exit device is too far
Possibility 3- Exit device out of
adjustment
Possibility 1- Dead short or overload
Green channel LED won't
light up, channel isn't
Possibility 2- Bad solenoid in exit device,
working
or defective interface device between
solenoid and power supply.
Power supply not working
Possibility 1- AC fuse blown
and red LED not lit.
Possibility 2- Short Circuit
BUZZER
GREEN
GREEN
CHANNEL 1
CHANNEL 2
LED
LED
RED POWER LED
+ -
+ -
+ -
+ -
+ -
+ -
1
2
IN
OUT
IN
OUT
FIRE
BAT
REMOVEABLE
CONNECTORS
(24VDC)
WIRE JUMPER INSTALLED
WHEN NO FIRE ALARM RELAY
IS CONNECTED
+
OPTIONAL
-
7AH 12V BATTERY
+
-
WHEN BATTERY BACKUP OPTION IS USED,
TWO 7AH 12V BATTERIES MUST BE INSTALLED IN SERIES.
DEVICE 1
-
(24VDC 700mA MAX)
DEVICE 2
(24VDC 700mA MAX)
+
NORMALLY OPEN
DRY CONTACT FROM
NORMALLY OPEN
ACCESS CONTROL
DRY CONTACT FROM
SYSTEM
ACCESS CONTROL SYSTEM
Solution
NO VOLTAGE
NO VOLTAGE
Check to see current draw is exceeding the 2 Amps
continuous rating. If so, eliminate one device that's
connected and check current draw.
If not hooked up to fire/life-safety system, make sure
jumper wire for the fire alarm is properly connected.
If hooked up to fire/life-safety system, make sure system
is functioning correctly
Check with your device manager's wiring

specifications.

Check with your device manager's wiring
specifications.
Re-adjust exit device according to manufacturer's
mechanical recommendations.
Shut off power, detect short, restore power,
channel will reset.
Check solenoid coil resistance and compare to
manufacturer spec. If not close, contact service
represenative.
Replace fuse with 2A Slow Blow 250VAC
5mm x 20mm
If replacement fuse has blown then there
is likely a short circuit in the board & it
will need to be replaced.
Doc. #20020_A

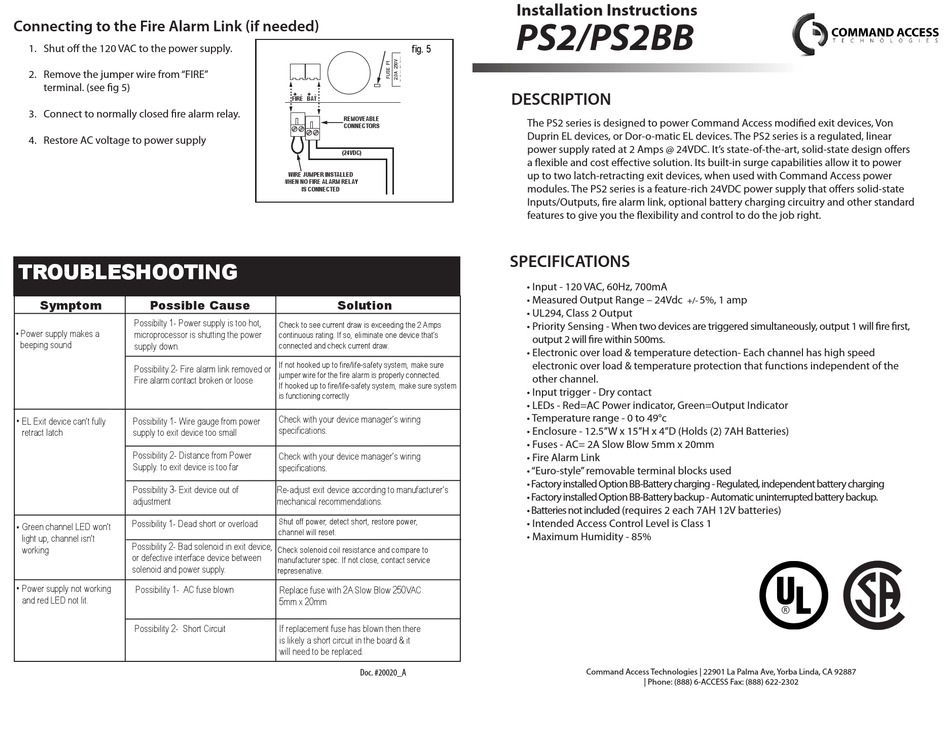

Installation Instructions

PS2/PS2BB
fig. 5
LINE
NEUTRAL
DESCRIPTION
120VAC
60Hz
The PS2 series is designed to power Command Access modified exit devices, Von
0.64A
Duprin EL devices, or Dor-o-matic EL devices. The PS2 series is a regulated, linear
CAUTION!
power supply rated at 2 Amps @ 24VDC. It's state-of-the-art, solid-state design offers
RISK OF FIRE!
a flexible and cost effective solution. Its built-in surge capabilities allow it to power
CHARGE ONLY 12V
LEAD ACID
up to two latch-retracting exit devices, when used with Command Access power
GEL-CELL TYPE
RECHARGEABLE
modules. The PS2 series is a feature-rich 24VDC power supply that offers solid-state
BATTERIES.
Inputs/Outputs, fire alarm link, optional battery charging circuitry and other standard
OPTIONAL
7 AH 12V BATTERY
features to give you the flexibility and control to do the job right.
SPECIFICATIONS
• Input - 120 VAC, 60Hz, 700mA
• Measured Output Range – 24Vdc
• UL294, Class 2 Output
• Priority Sensing - When two devices are triggered simultaneously, output 1 will fire first,
output 2 will fire within 500ms.
• Electronic over load & temperature detection- Each channel has high speed
electronic over load & temperature protection that functions independent of the
other channel.
• Input trigger - Dry contact
• LEDs - Red=AC Power indicator, Green=Output Indicator
• Temperature range - 0 to 49°c
• Enclosure - 12.5"W x 15"H x 4"D (Holds (2) 7AH Batteries)
• Fuses - AC= 2A Slow Blow 5mm x 20mm
• Fire Alarm Link
• "Euro-style" removable terminal blocks used
• Factory installed Option BB-Battery charging - Regulated, independent battery charging
• Factory installed Option BB-Battery backup - Automatic uninterrupted battery backup.
• Batteries not included (requires 2 each 7AH 12V batteries)
• Intended Access Control Level is Class 1
• Maximum Humidity - 85%
5%, 1 amp
+/-
Command Access Technologies | 22901 La Palma Ave, Yorba Linda, CA 92887
| Phone: (888) 6-ACCESS Fax: (888) 622-2302
