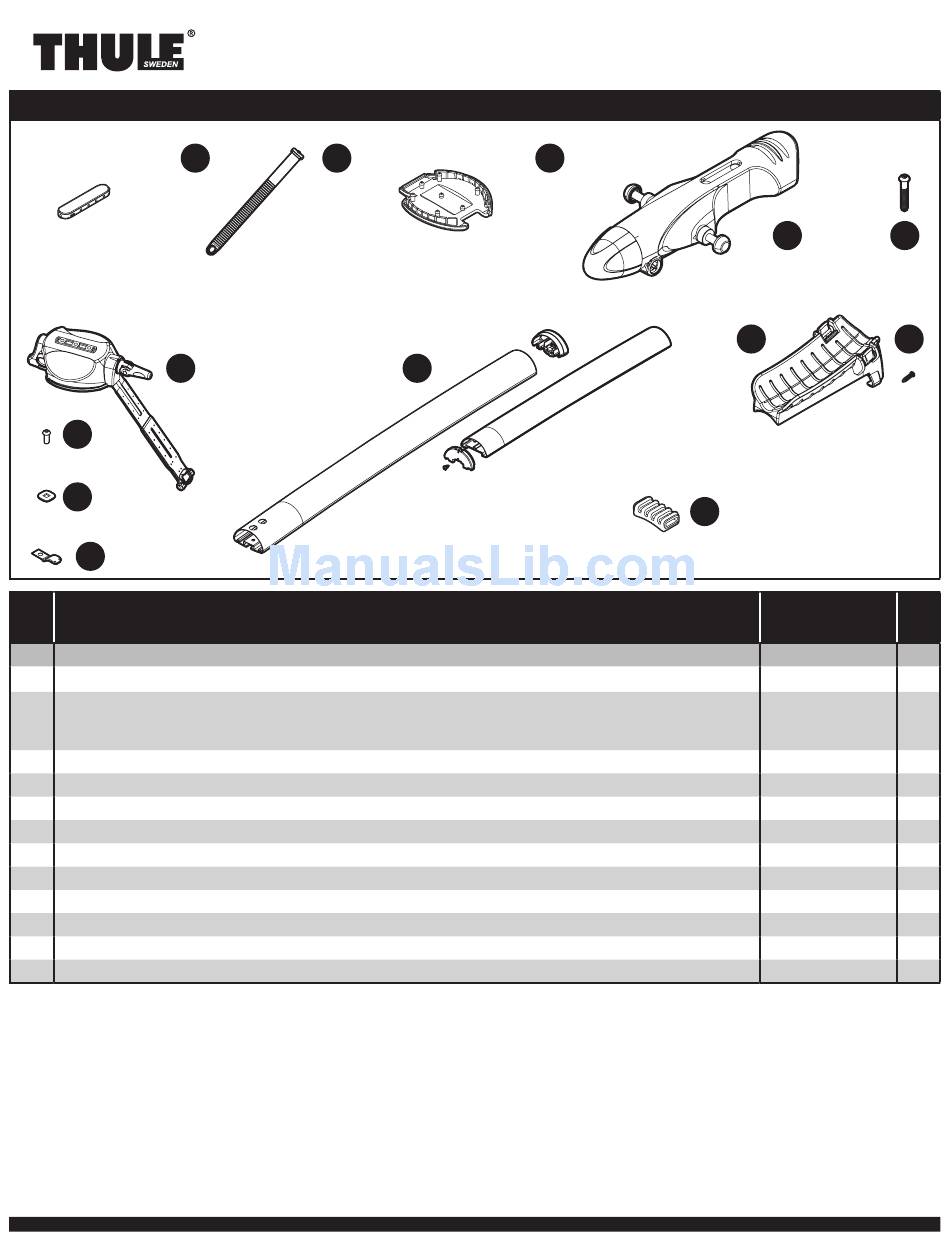

part
A
mount screw cover
chock wheel strap
B
SPRINT speed link pad
C
coussinet Speed Link SPRINT
D
SPRINT head assembly kit
E
M6 X 40 security torx screw
F
speed link assembly
G
tray assembly kit
H
rim protector
I
M6 x 12 button head screw
J
bolt plate
K
rear speed link spring
L
wheel chock assembly kit
M
M3.5 X 19 thread forming screw
SPRINT XT
B
G
description
528001

PARTS INCLUDED

C
D
L
H
part number
8523510001
8523285001
8523230001
7524619001
8527832001
7521476001
7521574001
8523518001
8523566002
8523278001
7521569001
7521479001
8523369001
E
M
qty.
1
1
2
1
2
1
1
1
2
2
1
1
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPRINT XT 528001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thule SPRINT XT 528001

  • Page 1 SPRINT XT 528001 PARTS INCLUDED part description part number qty. mount screw cover 8523510001 chock wheel strap 8523285001 SPRINT speed link pad 8523230001 coussinet Speed Link SPRINT 7524619001 SPRINT head assembly kit 8527832001 M6 X 40 security torx screw 7521476001 speed link assembly 7521574001 tray assembly kit...
  • Page 2 An upright carrier should be used. • Due to their wind resistance, it is not recommended to carry disk wheels or wheels with covers on Thule bike or wheel carriers. • This carrier is limited to bikes weighing no more than 37.5lbs (17kg).
  • Page 3 • Wrap Speed Link strap under bar and • Tighten by turning Speed Link toggle • For extra turning leverage the toggle attach into front pocket. clockwise. can be rotated 90 degrees. • Position rear Speed Link over rear load bar, making sure to center over load bar.
  • Page 4 • Mount bike’s fork straight down into Sprint’s • Position rear wheel in Wheel Chock Assembly by adjusting length of wheel tray. skewer assembly. Retighten Knob after positioning Wheel Chock • Turn Sprint Knob until required clamping pressure is achieved. The Knob will click when proper clamping pressure is achieved.
  • Page 5 INSERTING LOCKS (SOLD SEPERATELY) FRONT REAR • Remove Lock Plug from Sprint head by • Insert lock cylinders into head and one of the Speed Link mounts. turning 90 degrees and pulling out.
  • Page 6 Thule can not warranty loads that or a credit to be used toward the purchase of a new THULE exceed this limit. Total load = cargo weight plus load carrier system.
