Dr. MADRE DRM-22 User Manual

Dr. MADRE DRM-22 User Manual

Non-contact forehead infrared thermometer

Advertisement

MODEL:
When kids come first!
DRM-22
NON-CONTACT
FOREHEAD INFRARED
THERMOMETER
USER MANUAL

TABLE of CONTENTS:

1. Product Listing

2. Product Overview

3. Outline Drawing
4. Definition of Symbols

5. Measuring

6. Battery Voltage Display & Replacement
9. Product Specification
1. PRODUCT LISTING
The box includes:
Non-Contact Infrared Thermometer
1 PC
User Manual
1 PC
2. PRODUCT OVERVIEW
This Non-Contact Infrared Thermometer
measures temperature directly from the
forehead without contact and obtains a quick
and accurate human body temperature.
This product has the following advantages:
1. Easy to clean
2. One second reading output
3. Convenient one-key touch operation
4. Recalls the last 12 readings
5. Automatically displays the last reading
when you turn on the thermometer
6. Voice ON/OFF option
• When the THERMOMETER is ready to
take temperature, you hear "PLEASE
MEASURE" by voice announcement.
• When the measurement is finished, the
reading is announced in addition to the
display on the thermometer screen

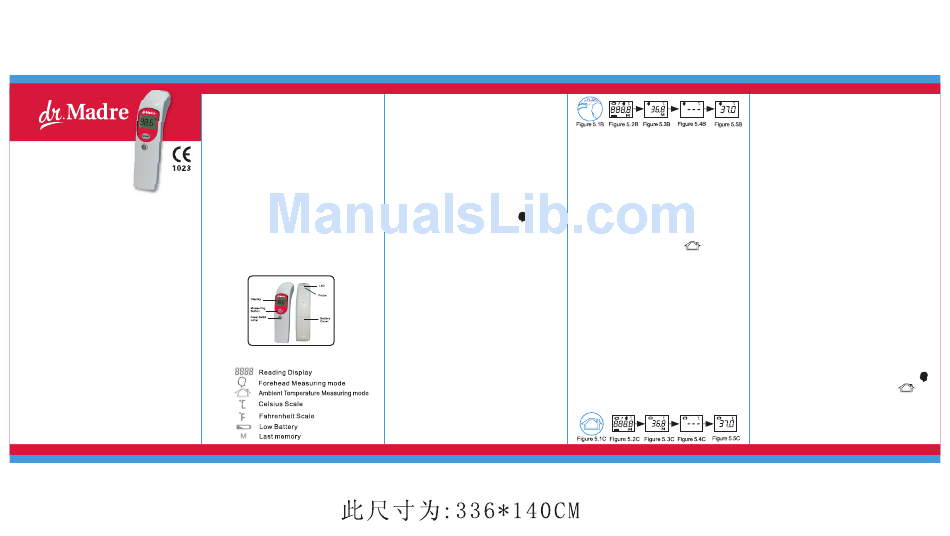

3. OUTLINE DRAWING
4. DEFINITION OF SYMBOLS
5. MEASURING
1. Non-Contact Type Forehead Measuring
Mode (Figure 5.1B)
• Turn on the POWER button key of the
infrared thermometer; all displayed
segments appear briefly as shown on
(Figure 5.2B)
• When figure 5.3B displays on the screen,
it is ready to obtain the most recent
temperature taken.
• When the FOREHEAD symbol "
" is
displayed on the screen (Figure 5.4B) at
the same time that Cº or Fº blinks, it is
ready to take the temperature.
–When unit prompts with either Cº or Fº
you can press the button to change to the
mode of degrees desired.
• Before you measure, make sure forehead
is dry and clean.
• Place the thermometer in front of the
forehead WITHOUT TOUCHING THE SKIN,
approximatey 5 to 10cm (2 to 4 inches)
away and PRESS the SCAN BUTTON.
The measurement will appear in one
second, followed by a long BEEP sound.
–The reading will also be displayed as
shown on Figure 5.5B.
• Thermometer will automatically SHUT OFF
within 60 seconds on non-use.
5. MEASURING
(Continued)
2. Ambient Temperature Measuring Mode
(Figure 5.1C)
• Turn on the POWER button key of the
infrared thermometer; all displayed
segments appear briefly as shown on
(Figure 5.2C)
• When figure 5.3C displays on the screen,
it is ready to obtain the most recent
temperature taken.
• When the HOUSE symbol "
" is
displayed on the screen (Figure 5.4C) at
the same time that Cº or Fº blinks, it is
ready to take the temperature.
–When unit prompts with either Cº or Fº
you can press the button to change to the
mode of degrees desired.
• Access ambient temperature scanning by
approximatey 5 to 10cm (2 to 4 inches)
away from the target and PRESS the SCAN
BUTTON. The measurement will appear in
one second, followed by a long BEEP sound.
–The reading will also be displayed as
shown on Figure 5.5C.
• Thermometer will automatically SHUT OFF
within 60 seconds on non-use.
5. MEASURING
(Continued)
3. How to switch VOICE mode to ON or OFF
• During POWER OFF MODE, press "SCAN"
button for about 5 seconds until "ON" or
"OFF" is displayed on the screen then
release the button. Continually pressing
the "SCAN" button allows you to access
the voice announcement option to either
the "ON" or "OFF" mode.
4. SPANISH/ENGLISH OPTION:
During POWER OFF mode, press "SCAN"
button for about 10 seconds until ES
(SPANISH) or US (ENGLISH) symbol
blinks on LCD display and release the
"SCAN" button.
–Switch from ENGLISH to SPANISH by
continually pressing the "SCAN" button.
5. FAHRENHEIT/CELSIUS OPTION:
During POWER OFF mode, press "SCAN"
button for about 15 seconds until Cº or Fº
symbol blinks on LCD display and release
the "SCAN" button.
–Switch from ENGLISH to SPANISH by
continually pressing the "SCAN" button.
6. HUMAN BODY/AMBIENT OPTION:
During POWER OFF mode, switch the "
"
symbol on the side of the unit to "
" to
choose the mode of measuring.
