Summary of Contents for FPV Model X-Racer X9

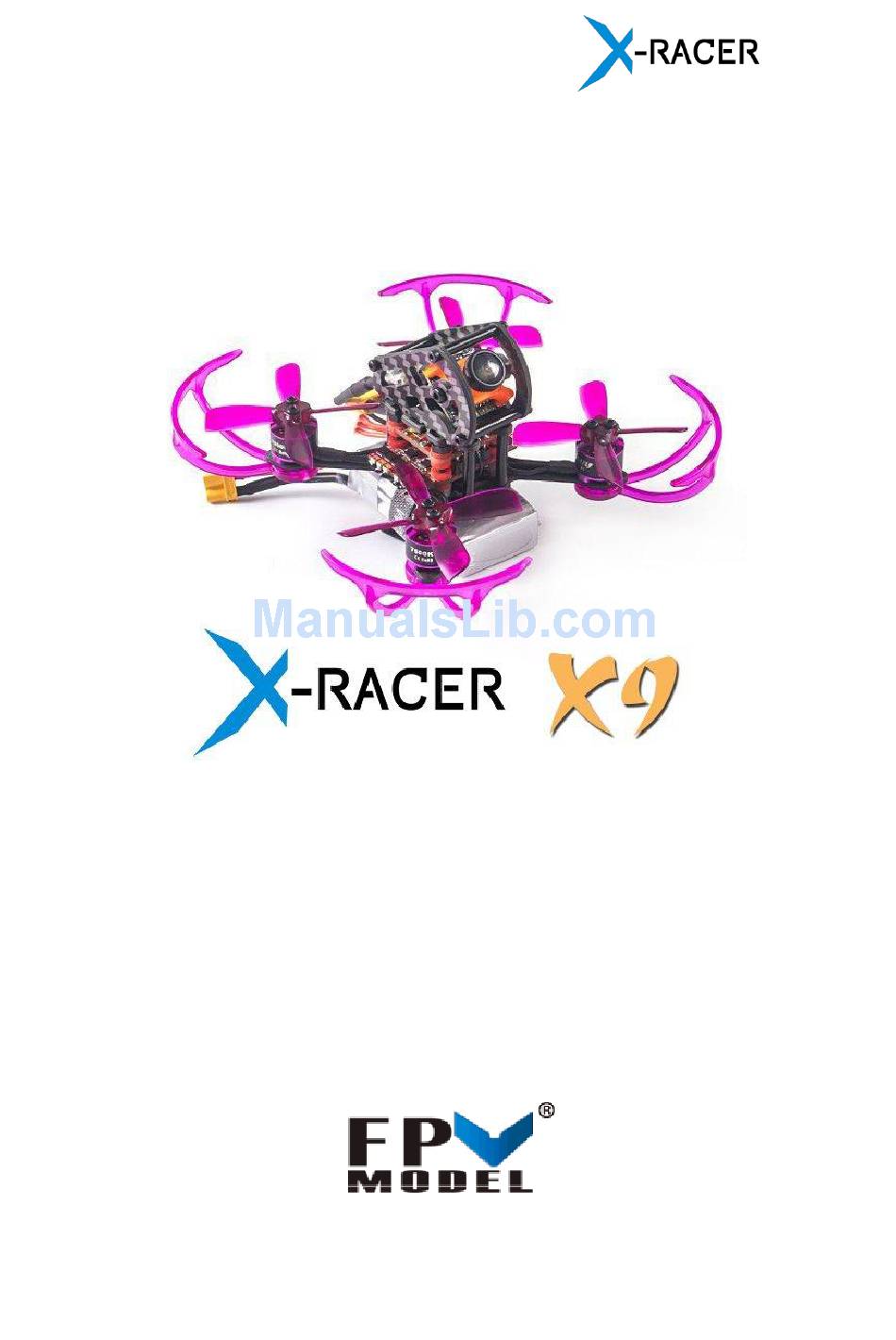

- Page 1 INSTALLATION INSTRUCTIONS FPVMODEL LIMITED http://www.fpvmodel.com...
- Page 2 Step 1：Check all the parts in case there’s any missing. 1 x X-Racer X9 Frame 4 x Dragonfly MC1105 7500kv Motor 1 x Raceflight Millivolt Flight Controller 1 x Raceflight Spark 4n1 ESC 1 x RunCam Micro Swift 2 FPV Camera (Update on September 12th.) 1 x Dranonfly 5.8g 25MW 48CH Vtx...
- Page 3 Step 2：The wire lengths that you need to keep after cutting. Black wire: 44mm Red wire: 38mm Please keep 35mm motor wires, including the heat shrinkable tubes Step 3: Connect motors and flight controllers The parts you need are shown as below: Connect the flight controller to 4 in 1 ESC, make sure the 10 pins and holes are matched.
- Page 4 Solder power supply cable and make sure the connection of FC & ESC is correct. Black for“-” and Red for Solder the motors onto the ESC, and then solder XT30 cable onto the ESC. “+”.
- Page 5 Step 4: Install the flight controller Step 5: Ready for motor soldering.
- Page 6 Step 6: Motor Soldering Solder the motors accordingly. (Note: do not need to invert the wires for motor 1 and motor 4.) Install screws onto the motors, need to secure them with midium strength srew glue...
- Page 7 Clear and clean the motor wires accordingly. Step 7: Solder the camera and VTX Use the camera cable that shows as below to solder VTX cable. Make sure the 3 soldering pads V+, CAM and GND are soldered correctly. Or if the VTX not soldered correctly, it will not work or get burnt. The camera power supply and VBAT cables need to be soldered onto the VBAT of flight controller.
- Page 8 Note: The wires need to get thru the center of board before soldering as the picture showed.
- Page 9 Step 8: Install camera protection plates. What you need: Aluminum standoff: 20mm 3pcs...
- Page 10 Camera protection plate: M2x6 4pcs Install the aluminum standoffs in three places, and then install the Runcam Swift camera.
- Page 11 Pay attention to the installation direction of propellers.
