VitBest EAWP-VH70-TR User Manual

Hdbaset 2 gang multi-panel wall plate for hdmi, vga with audio, rs232 and pol

Advertisement

Quick Links

VitBest HDBaseT 2 Gang Multi-panel
Wall Plate for HDMI, VGA
with Audio, RS232 and POL
EAWP-VH70-TR

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAWP-VH70-TR and is the answer not in the manual?

Questions and answers

Summary of Contents for VitBest EAWP-VH70-TR

  • Page 1: User Manual

    VitBest HDBaseT 2 Gang Multi-panel Wall Plate for HDMI, VGA with Audio, RS232 and POL EAWP-VH70-TR User Manual...
  • Page 2 VitBest Contents Introduction ....................................... 2 Package Contents .................................... 2 Features ........................................ 2 Panel Descriptions Front Panel ....................................... 3 Rear Panel ......................................3 Connection and Installation ..............................4 Specification ....................................... 4 RS232 Command Table ................................5 Safety Information ..................................6 Warranty ......................................6 Return and RMA Policies ................................6 ...
  • Page 3: Package Contents

    VitBest Introduction The EAWP-VH70-TR is part of VitBest’s expanding Multi Video HDBaseT Cat wall plate. The is a 2 gang multi-input Decora style wall plate with EAWP-VH70-TR HDBaseT CAT extension. Its ability to convert VGA with audio to HDMI locally and transmit the signal up to 230ft sets this unit apart from the competition.
  • Page 4: Panel Description

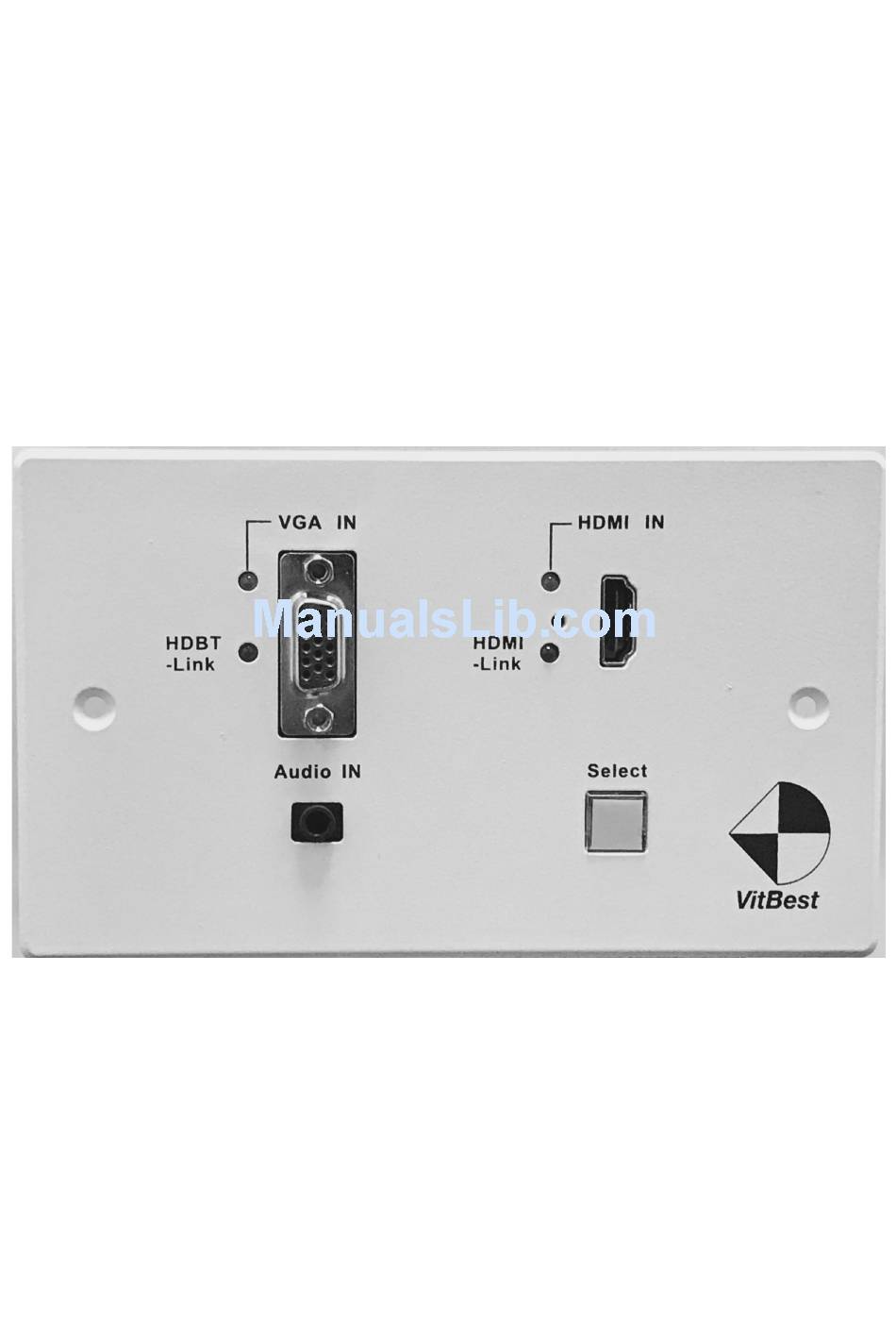

    VitBest Panel Description Front Panel 1. VGA IN: Connect to VGA source; 2. LED for VGA: LED blinking means there is VGA signal input; LED always on means current output is VGA; 3. Link: LED blinking means cat cable connection available; LED always on means there is video signal input and output;...
  • Page 5: Connection And Installation

    VitBest Connection and Installation Specification Video HDMI Compliance HDMI 3D, 4K VGA Compliance VESA HDCP Compliant Distance 230ft [70m] on 1080p@60Hz Max Resolution 4K*2K Connectors Connectors (1) HDMI,(1)VGA, (1)RJ45(HDBT),(1)Audio, Mechanical Dimensions US:2Gang & UK:146*86mm Net Weight 0.728lbs[330g] Package Size 240 x 180 x 70 mm(L/W/H) Gross Weight 1.257lbs[330g]...
  • Page 6 VitBest RS232 Protocol & - Command, $ - Query, ^ Response <cr> = 0x0D Hex / 13 Decimal Command VitBest Information Example Example Example String String Response Route &Ra<cr A=V or H; Route &RV<cr> ^RV<cr> Command > V mean VGA, OR No VGA H mean HDMI.
  • Page 7: Safety Information

    VitBest Safety Information To reduce the risk of electric shock, do not expose this product to rain or moisture Do not modify the wall plug. Doing so will void the warranty and safety features If the wall plug does not fit into your local power socket, hire and electrician to replace your obsolete socket.
