Summary of Contents for Technisonic Industries Limited TDAP-611
-

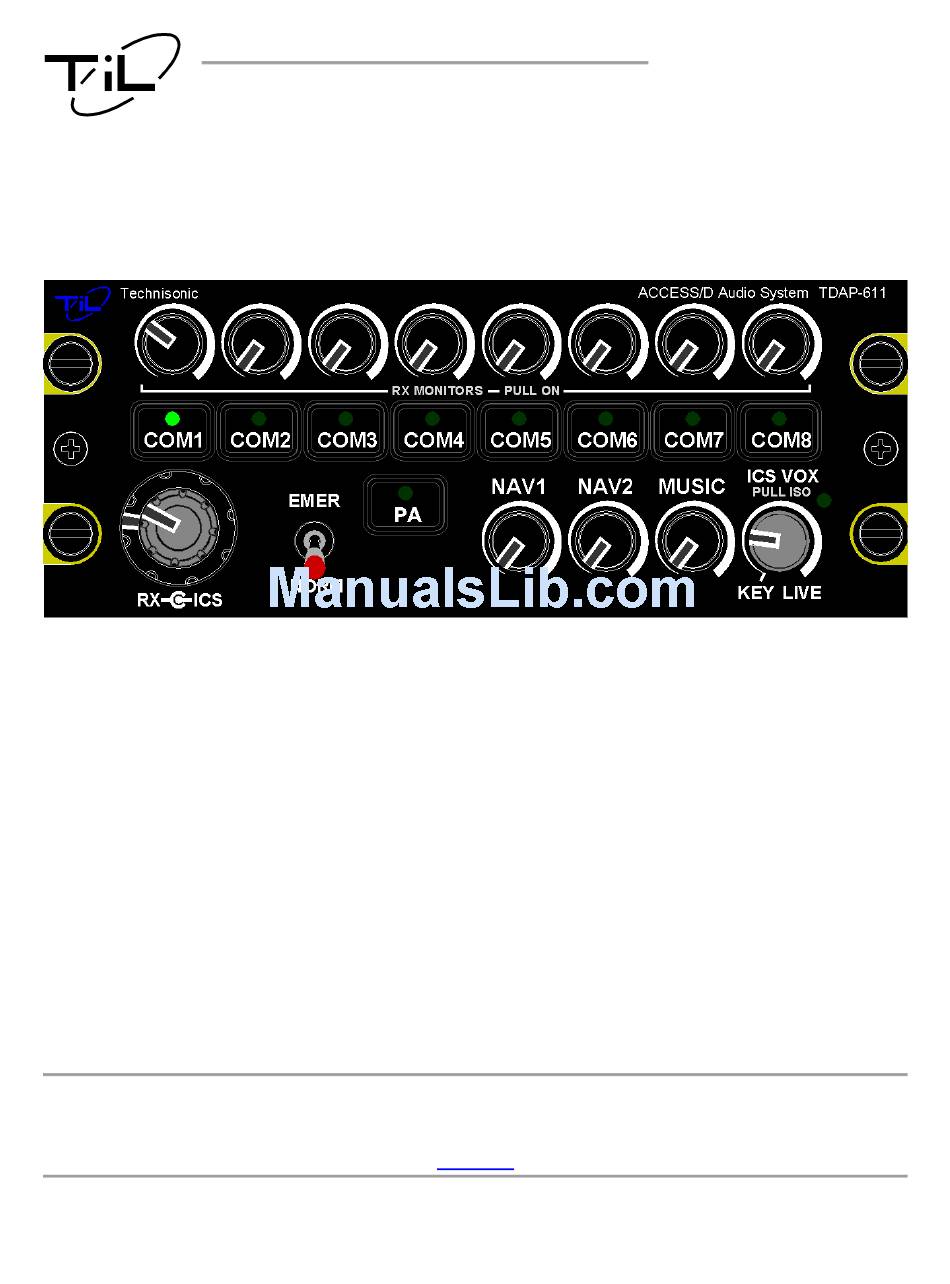

Page 1: Installation Instructions
TDAP-611 AUDIO PANEL Installation Instructions TiL Document No. 15RE552 Rev. N/C Issue 2 MAY 2016 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca Copyright by Technisonic Industries Limited. All rights reserved. - Page 2 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2...
- Page 3 Added installation information to Section 2.3. Jul. 14, 2017 A.L. 8-15 Renumbered Sections 2.6-2.14. Issue 2 Sections 1.1 & 1.2 are clarified. Apr. 16, 2018 A.L. Added a new Section 1.3: Model Variation & renumbered accordingly. TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2...
- Page 4 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2...
- Page 5 Changes or modifications not expressly approved by Technisonic Industries could void the user’s authority to operate the equipment. This manual is designed to provide information about the TDAP-611. Every effort has been made to make this manual as complete and accurate as possible.
- Page 6 TECHNISONIC INDUSTRIES LIMITED SUMMARY OF DO-160G ENVIRONMENTAL TESTING Summary of DO-160G Environmental Testing for the Technisonic Model TDAP-611 Audio Panel: Conditions Paragraph Category Temperature and Altitude A2, B2, D1 Temperature Variation Humidity Operational Shocks and Crash Safety Vibration: Sinusoidal Profile M...
-
Page 7: Table Of Contents
GENERAL ........................5 EQUIPMENT PACKING LOG ..................5 INSTALLATION ......................5 INSTALLATION KIT – CONTENTS ................5 WIRING REQUIREMENTS .................... 6 TDAP-611 AUDIO PANEL INSTALLATION ..............6 2.6.1 CABLE CLEARANCE ....................6 2.6.2 SHIELD GROUNDS ..................... 6 INSTALLATION – PIN LOCATIONS AND CONNECTIONS ......... 8 HEADPHONE INSTALLATION .................. - Page 8 FIGURE TITLE PAGE Outline Drawing ......................7 TDAP-611 Rear Connectors ..................8 Wiring Connections for Communication Transceivers ........... 12 Wiring Connections for Navigation Receivers, Power, and Configurations ....13 Wiring Connections for User Interfaces ................. 14 Top Cover Post-Installation Adjustment Locations ............15 Bottom Cover Post-Installation Adjustment Locations ...........
-
Page 9: Introduction
7 distinct Users (Pilot, Co-pilot, and five passengers) with varying degrees of connectivity depending on their station. The TDAP-611 connects to all aircraft Transceivers (up to a maximum of 8 distinct Transceiver Inputs), Navigational Receivers (up to a maximum of 8 distinct Receiver Inputs), Externally Alerting Sirens, and User Headsets. -
Page 10: Technical Characteristics
TECHNISONIC INDUSTRIES LIMITED TECHNICAL CHARACTERISTICS TDAP-611 GENERAL SPECIFICATIONS MODEL TDAP-611 - ACCESS/A Audio Controller: PHYSICAL CHARACTERISTICS: Width (max.) ........................5.73 inches Height (max.) ........................2.24 inches Depth (behind panel) ......................4.59 inches Weight ........................2.23 lbs. (1.01 Kg) Mounting ....................Standard Dzus, 4 fasteners POWER SOURCE REQUIREMENTS: DC Voltage (MIN, TYPICAL, MAX) ................ -
Page 11: System Limitations
Should RF susceptibility pose a problem in a particular installation, the installer may wish to try terminating shields at both ends of the cable. If this does not produce satisfactory results, then double shielding may be required. TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... - Page 12 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2...
-
Page 13: General
INSTALLATION The TDAP-611 Audio Panel is designed to be Dzus mounted and should be installed in conjunction with an IN-TDAP611 installation kit. See Figure 1 for an outline drawing of the unit with dimensions to facilitate the installation. -
Page 14: Wiring Requirements
Shielded wiring is effective only for electrostatic coupling or voltage driven interference. TDAP-611 AUDIO PANEL INSTALLATION 2.6.1 CABLE CLEARANCE Allow at least 2.5” of additional rear clearance for mating connectors and hoods (side routing) or 3.0”... -
Page 15: Outline Drawing
TECHNISONIC INDUSTRIES LIMITED ” 4.85 ” 4.59 ” 4.94 ” 5.73 ” 2.24 FIGURE 1: Outline Drawing for Model TDAP-611 TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 16: Installation - Pin Locations And Connections
TECHNISONIC INDUSTRIES LIMITED INSTALLATION – PIN LOCATIONS AND CONNECTIONS FIGURE 2: TDAP-611 Rear Connectors J101 – POWER, MICS & KEYS Connector Pin Assignments Connection Notes +28 V Power In Main Power Input Pilot’s Mic In Pilot’s ICS Key Active when grounded Co-Pilot’s Mic In... -
Page 17: Bottom Connector - J202 (15 Pin D Connections) - Use Male Connector
COM 5 RX Audio COM 4 RX Audio COM 3 RX Audio COM 2 RX Audio COM 1 RX Audio TABLE 4: Top Connector – J201 (37 Pin D Connections) - Use FEMALE Connector TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 18: Top Connector - J102 (15 Pin D Connections) - Use Female Connector
Alerting is tone based with Alert 1 emitting a steady tone, Alert 2 a pulsing tone, and Alert 3 a two-tone, timed signal. Alert 2 has priority over Alert 1 if both are activated at the same time. Alert 3 has priority over Alert 2 and Alert 1. TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 19: Headphone Installation
Backlighting is NVG/ANVIS compatible (green). 2.13 STORAGE When not in use, store the TDAP-611 in the original anti-static bag if possible and in a non-humid place. Optimum storage temperatures for the best shelf life should not exceed +35°C or be less than -10°C. -
Page 20: Wiring Connections For Communication Transceivers
P102 COM8 AUDIO IN HI COM8 AUDIO IN LO COM8 COM8 MIC KEY COM8 MIC AUDIO HI COM8 MIC AUDIO LO P101 CHASSIS GROUND FIGURE 3: Wiring Connections for Communication Transceivers TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 21: Wiring Connections For Navigation Receivers, Power, And Configurations
PAX RX ENABLE P101 LIGHTING 28V/5V SPEAKER VOLUME 28 VDC AIRCRAFT BUSS POWER GROUND LIGHTING LIGHTING BUSS LIGHTING GROUND CHASSIS GROUND FIGURE 4: Wiring Connections for Navigation Receivers, Power, and Configurations TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 22: Wiring Connections For User Interfaces
PAX ICS KEY HAND MIC IN HI HAND MIC IN LO HAND MIC HAND MIC KEY P202 SPEAKER A SPEAKER SPEAKER B P202 CHASSIS GROUND FIGURE 5: Wiring Connections for User Interfaces TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 23: Post-Installation Adjustments
2.14 POST-INSTALLATION ADJUSTMENTS After installation, the TDAP-611 may require adjustment of some functions to compensate for airframe and equipment specific issues and to suit user tastes. Locations of these adjustments are as shown. “MUSIC” input may be for any entertainment audio feed, such as CD, tuner, etc. -
Page 24: Bottom Cover Post-Installation Adjustment Locations
FIGURE 7: Bottom Cover Post-Installation Adjustment Locations Adjustment Name Location Procedure/Purpose Notes Adjusts COM Transceiver Preset. TX MIC OUTPUTS 1 - 8 Microphone audio output level Set to desired level, if required. TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 25: Appendix A Support Notes
(login required). For the latest Software Release(s), please refer to the Publication Index list under the section for • this model’s software/firmware history index (login required). NOTES TDAP-611 Installation Instructions TiL 15RE552 Rev. N/C Issue 2... -
Page 26: Warranty
Tel: (905) 890-2113 Fax: (905) 890-5338 IMPORTANT WARRANTY All communication equipment manufactured by Technisonic Industries Limited is warranted to be free of defects in Material or Workmanship under normal use for a period of one year from Date of Purchase by the end user.
