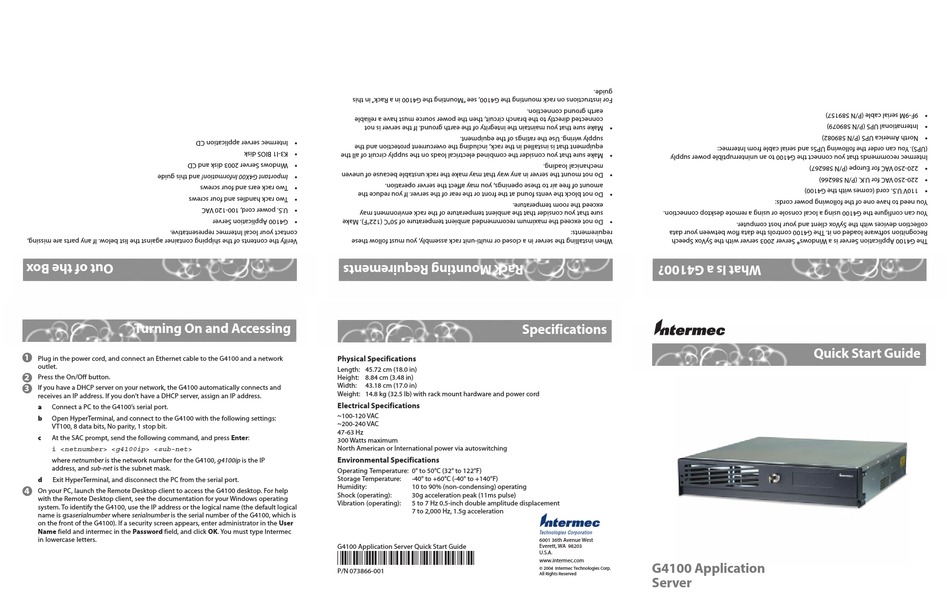

Intermec G4100 Quick Start Manual

Turning On and Accessing

1
Plug in the power cord, and connect an Ethernet cable to the G4100 and a network
outlet.
2
Press the On/Off button.
3
If you have a DHCP server on your network, the G4100 automatically connects and
receives an IP address. If you don't have a DHCP server, assign an IP address.
a Connect a PC to the G4100's serial port.
b Open HyperTerminal, and connect to the G4100 with the following settings:
VT100, 8 data bits, No parity, 1 stop bit.
c At the SAC prompt, send the following command, and press Enter:
i < netnumber > < g4100ip > < sub-net >
where netnumber is the network number for the G4100, g4100ip is the IP
address, and sub-net is the subnet mask.
d Exit HyperTerminal, and disconnect the PC from the serial port.
On your PC, launch the Remote Desktop client to access the G4100 desktop. For help
with the Remote Desktop client, see the documentation for your Windows operating
system. To identify the G4100, use the IP address or the logical name (the default logical
name is gsaserialnumber where serialnumber is the serial number of the G4100, which is
on the front of the G4100). If a security screen appears, enter administrator in the User
Name field and intermec in the Password field, and click OK. You must type Intermec
in lowercase letters.

Physical Specifications

Length: 45.72 cm (18.0 in)
Height: 8.84 cm (3.48 in)
Width: 43.18 cm (17.0 in)
Weight: 14.8 kg (32.5 lb) with rack mount hardware and power cord

Electrical Specifications

~100-120 VAC
~200-240 VAC
47-63 Hz
300 Watts maximum
North American or International power via autoswitching

Environmental Specifications

Operating Temperature: 0° to 50°C (32° to 122°F)
Storage Temperature: -40° to +60°C (-40° to +140°F)
Humidity: 10 to 90% (non-condensing) operating
Shock (operating): 30g acceleration peak (11ms pulse)
Vibration (operating): 5 to 7 Hz 0.5-inch double amplitude displacement
7 to 2,000 Hz, 1.5g acceleration
G4100 Application Server Quick Start Guide
*073866-001*
P/N 073866-001

Specifications

6001 36th Avenue West
Everett, WA 98203
U.S.A.
www.intermec.com
G4100 Application
© 2004 Intermec Technologies Corp.
All Rights Reserved
Server

Quick Start Guide
