Summary of Contents for MEN Mikro Elektronik G100 CompactPCI

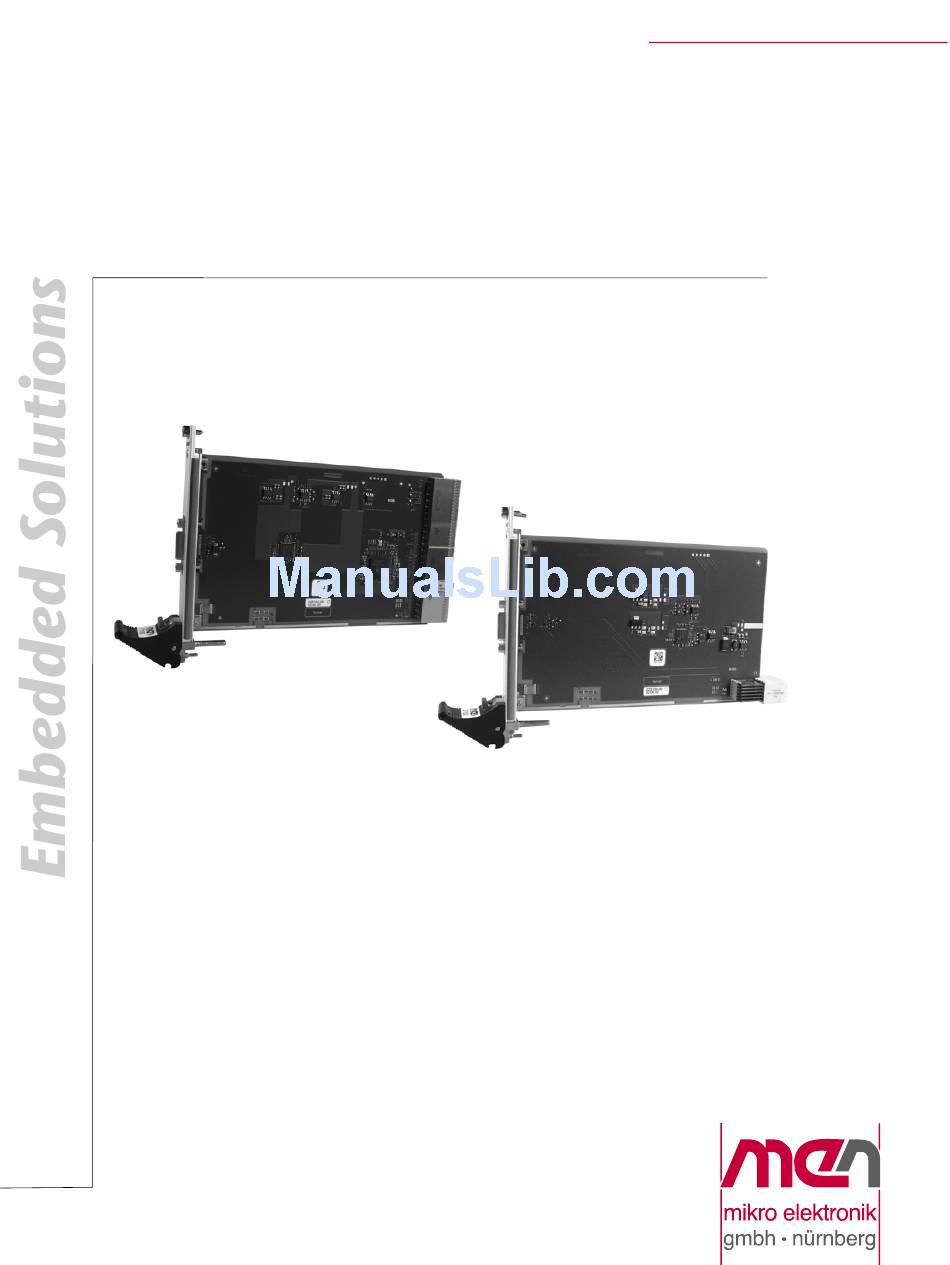

- Page 1 20G100-00 E1 – 2010-11-30 G100/F100 CompactPCI® Serial to CompactPCI® Interface Cards F100 G100 Configuration examples User Manual ®...
- Page 2 The G100 and the F100 are connected via the front using a PCI Express® cable which can have a length of up to 7 m. The boards are qualified for operation in the extended temperature range of -40 up to +85°C. MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
-
Page 3: Technical Data
• G100 supply voltage/power consumption: - +12V (-10%/+10%), 50 mA typ. Mechanical Specifications • Dimensions: conforming to CompactPCI® specification for 3U boards • Weight: - F100: 132 g - G100: 116 g MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30... - Page 4 • G100: 2,585,957 h @ 40°C according to IEC/TR 62380 (RDF 2000) Safety • PCB manufactured with a flammability rating of 94V-0 by UL recognized manu- facturers • Conforming to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
- Page 5 Block Diagram Block Diagram F100 optional PCI Express x1 PCIE to PCI Bridge Cable G100 PCI Express x1 PCI Express x1 Buffer MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
- Page 6 • 66 MHz with support for up to 4 PCI slots Please note that some of these options may only be available for large volumes. Please ask our sales staff for more information. For available standard configurations see online data sheet. MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
- Page 7 • Store the board only in its original ESD-protected packaging. Retain the original packaging in case you need to return the board to MEN for repair. MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
- Page 8 Signal directions in signal mnemonics tables generally refer to the corresponding board or component, "in" meaning "to the board or component", "out" meaning "coming from it". MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
- Page 9 MEN was negligent regarding the design or manufacture of the part. Unless agreed otherwise, the products of MEN Mikro Elektronik are not suited for use in nuclear reactors or for application in medical appliances used for therapeutical purposes.
-
Page 10: Table Of Contents
2.5 F100 CompactPCI Interface ....... . 17 2.6 G100 CompactPCI Serial Interface ......17 2.7 Using the F100 without the G100 . - Page 11 ..........18 MEN Mikro Elektronik GmbH...
- Page 12 Pin assignment of PCI Express x1 connector....15 Table 2. Signals mnemonics of PCI Express connectors ....16 MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
-
Page 13: Getting Started
This chapter gives an overview of the board and some hints for first installation in a system. Map of the Board Figure 1. Map of the board – front panel F100 G100 ® ® CompactPCI CompactPCI Serial F100 G100 MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30... -
Page 14: Integrating The Board Into A System
It also has red guide rails. Connect the two cards using a PCI Express cable. MEN provides a PCI Express cable with a length of 1 m. See MEN’s website for ordering information. Power-up the system. MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30... -
Page 15: Functional Description
18-pin PCI Express connector at the front panel. Connector types: • 18-pin, straight, 2.54 mm, female cable connector Table 1. Pin assignment of PCI Express x1 connector PE_Rx00- PE_Rx00+ PRSNT# SB_RTN PE_CLK- PE_CLK+ PWRON# PE_Tx00- PERST# PE_Tx00+ MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30... -
Page 16: F100 Pci Express To Pci Bridge
PCI Express side. At the PCI side the bridge acts as a master supporting up to seven PCI devices. G100 PCI Express Buffer The G100 decouples the backplane PCI Express interface from the front interface by a repeater to protect the system und support longer cables. MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30... -
Page 17: F100 Compactpci Interface
The pin assignment of connector J1 as defined in the CompactPCI specification will not be repeated here. G100 CompactPCI Serial Interface The G100 is plugged into a peripheral slot of the CompactPCI Serial system and uses one PCI Express lane from the backplane according to the CompactPCI Serial specification (PICMG CPCI-S.0, proposed standard under development). -
Page 18: Appendix
If you need support, you should communicate these numbers to MEN. Figure 2. Labels giving the product’s article number, revision and serial number Complete article number 02G100-00 00.00.00 Revision number Serial number MEN Mikro Elektronik GmbH 20G100-00 E1 – 2010-11-30...
