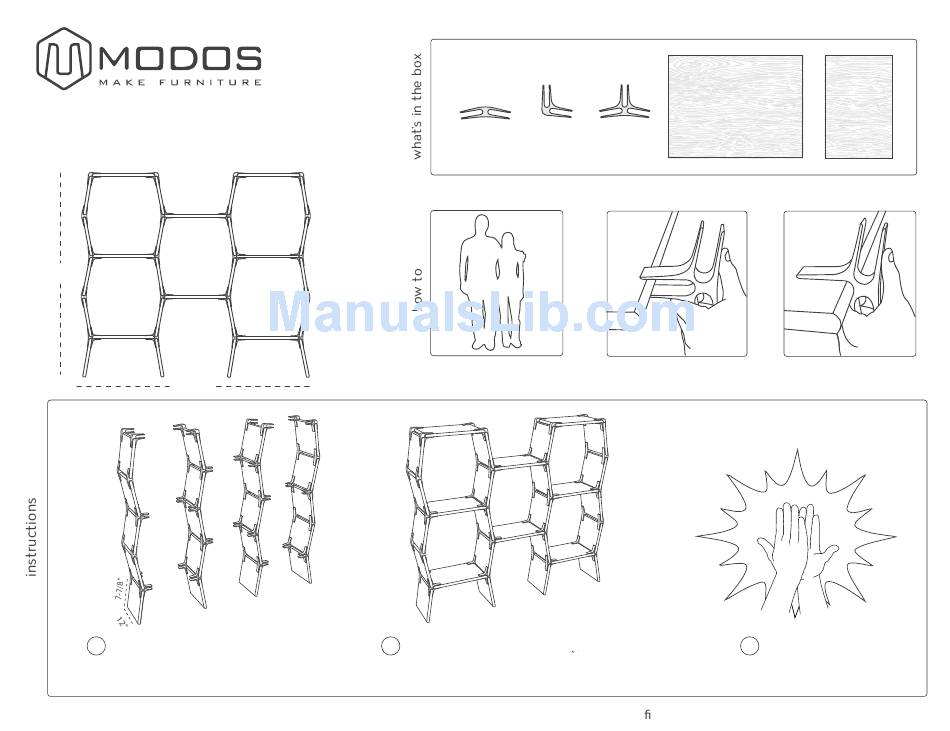

MODOS S5 Assembly Instructions

Shelf S5
assembly instructions
52"
55 3/4"
G1
Assemble vertical groups (G1, G2, G3, G4)
1
using only B boards and the illustrated connectors.
G4
G3
G2
2
M1 x 8 M2 x 8
find a friend to help
G3
G2
G1
Starting with the lowest boards attach all A boards:
Attach (3) A boards to G1 / attach G2 /
Attach (2) A boards to G2 / attach G3 /
Attach (2) A boards to G3 / attach G4
more info and other con gurations at
A x 8
15-3/4" x 12"
M3 x 24
slide connector onto board
line connector up with board
G4
You're done,
3
high five!
www.modos.io
B x 20
7-7/8" x 12"
