HANYOUNG NUX FS - 3 Instruction Manual

Level Switch
FS - 3
INSTRUCTION MANUAL
Thank you for purchasing HANYOUNG product.
Please check whether the product is the exactly same as you ordered.
Before using the product, please read this instruction manual carefully.
Please keep this manual where you can view at any time

Safety information

Before using the product, please read the safety information thoroughly and use it properly.
Alerts declared in the manual are classified to Danger, Warning and Caution by their criticality
DANGER indicates an imminently hazardous situation
DANGER
which, if not avoided, will result in death or serious injury
WARNING indicates a potentially hazardous situation
WARNING
which, if not avoided, could result in death or serious injury
CAUTION indicates a potentially hazardous situation which,
CAUTION
if not avoided, may result in minor or moderate injury
WARNING
• If the user use the product with methods other than specified by the
manufacturer, there may be bodily injuries or property damages.
• If there is a possibility of an accident caused by errors or malfunctions of this
product, install external protection circuit to prevent the accident.
CAUTION
• Do not touch or connect any undesirable conductive part to input·output
terminal since there is a possibility of electric shock.
• Please do not supply the overload larger than the rating to the output contact
of the relay.
• The wire length should be as short as possible from the instrument to the
electrode.
• Please use a thick wire as possible between the instrument and the
electrode.
• Please do not put the input signal wires and other load wires in the same conduit.
• If the input wire is longer, please use the shielded wire.
• Please avoid installing a controller in a place where there is steam, dust,
corrosive gas and water splash.
• Please install AC power lines in a metal conduit with separating input sensor
signal wires.
• Never disassemble, modify, or repair the product. There is a possibility of a
malfunction, an electric shock, or a risk of fire.
※ Please follow the above contents described in the safety information if not it
may lead to a product failure.

Specification

FS-3 A (high sensitivity)
Model
Power supply Voltage
Allowable voltage fluctuation range
Voltage between the
24 V a.c
electrodes secondary voltage
Power consumption
Max 80 ㎳ when operating, max 160 ㎳ when returning
Response time
0 - approx. 27 ㏀
Operration resistance between electrodes
Return resistance between electrodes approx. 38 ㏀ - ∞Ω
Control output Relay contact output (1c): 250 V a.c 5 A (resistive load)
100 ㏁ min (with 500 V d.c mega) electric conduction part and
Insulation resistance
2000 V a.c 50 - 60 ㎐ for 1 min (between the two poles recharging part terminal)
Dielectric strength
10-55 ㎐ (for cycle 1 min) Peak amplitude for 2hrs each in X, Y and Z direction 0.76 ㎜
Vibration resistance
Shock resistance
Mechanically more than 5 million times (relay type), electrically more
Life expectancy
Ambient temperature -10 ~ 50 ℃ (with no icing or condensation)
Ambient humidity
FS-3 A (low sensitivity)
110 V a.c / 220 V a.c 50/60 ㎐
± 10 % of the power supply voltage
8 V a.c
Approx. 3.2 VA
0 - approx. 7 ㏀
approx. 15 ㏀ - ∞Ω
exposed non-charged metal part
300 ㎨
than 500 thousand times (load resistance)
35 ~ 85 % R.H.
HANYOUNGNUX CO.,LTD
1381-3, Juan-Dong, Nam-Gu Incheon, Korea.
HEAD OFFICE
TEL:(82-32)876-4697
FAX:(82-32)876-4696
http://www.hynux.net
PT. HANYOUNG ELECTRONIC INDONESIA
Jl. cempaka blok F16, No.02 Delta Silicon II
INDONESIA
Cikarang Bekasi Indonesia
FACTORY
TEL : 62-21-8911-8120~4
FAX : 62-21-8911-8126

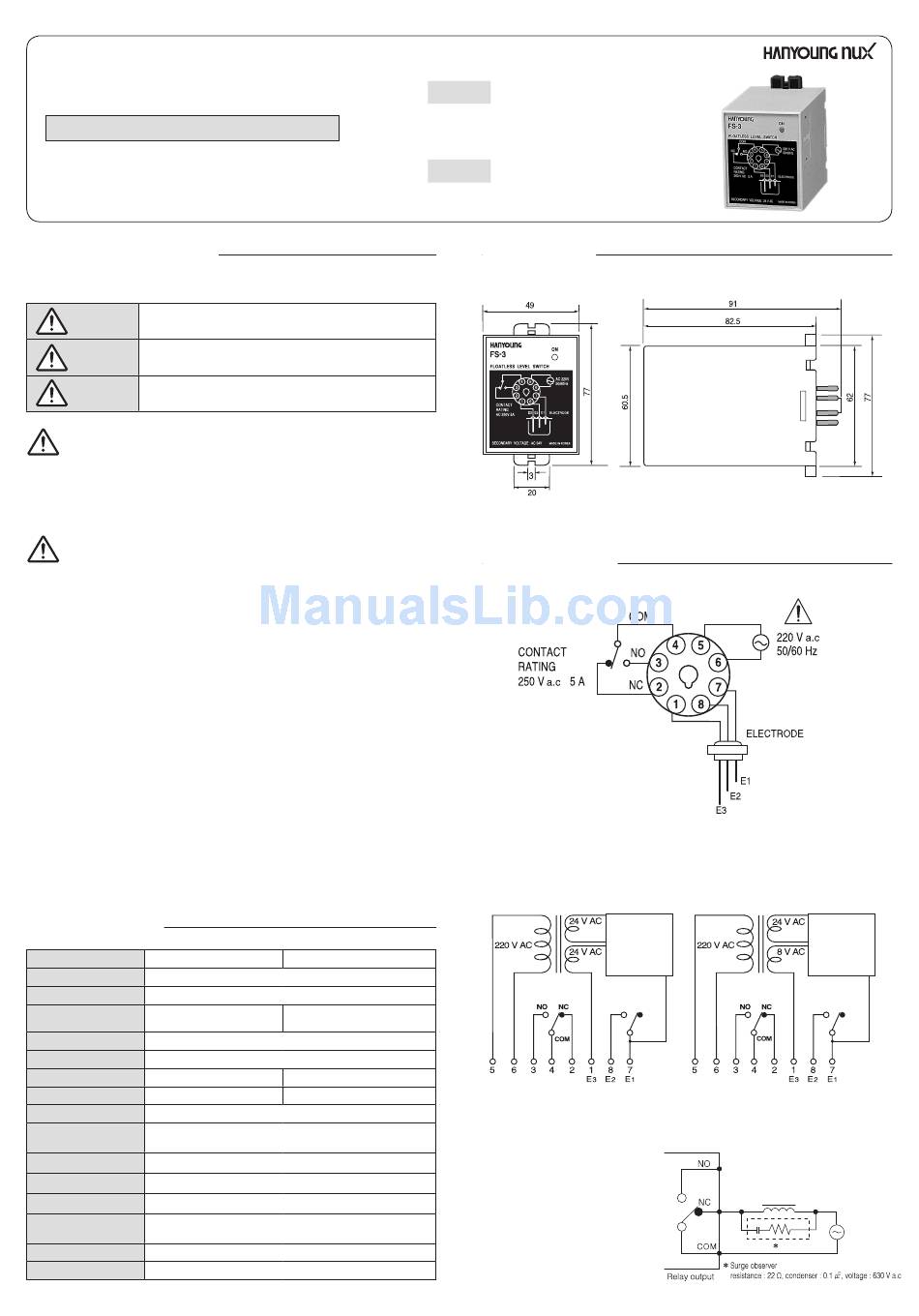

Dimension

Connections

▒ External connection
(Cautious) Please and
must earth E3 terminal
▒ Internal connection
① High sensitivity
▒ Regarding the connection of load
• Attaching the surge observer
at the each and of inducible
load (motor, solenoid and
etc) just like an image given
on the right side will restrain
noise to occur
2
ML0201KE120813
[Unit : mm]
② Low sensitivity
