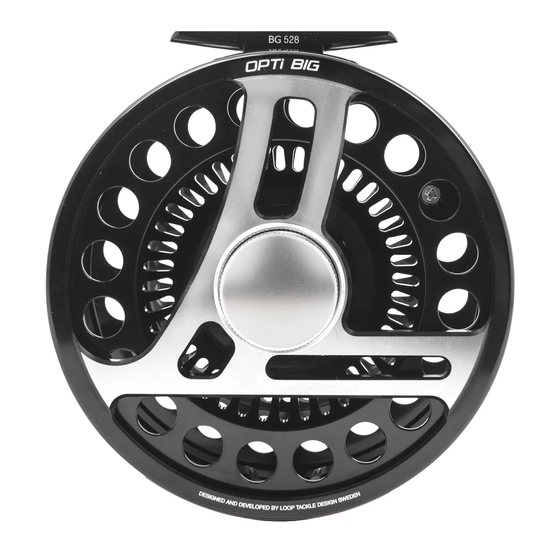

LOOP OPTi Manual

LOOP OPTi Fly Reel Manual
Congratulations on the purchase of your new flyreel. We wish you many seasons of good use of
your new reel in flyfishing. Enclosed are instructions for proper care and maintenance. Good luck!
Conversion left / right hand retrieve:
1. Remove spoolcap (27).
2. Pull spool (25) straight out.
3. Release stopscrews (2) ½ turn with enclosed Allen wrench.
4. Pull drag knob (1) straight out.
5. Remove drag knob nut (3).
6. Pull draw bar (24) straight out, together with cup springs (23).
7. Pull bearing holder (22) straight from shaft (15).
8. Remove seal ring (16).
9. Remove bearing (17), bearing washers (18), carbon plates (21) and one way bearing (20).
10. Turn one way bearing (20).
11. Wipe clean.
12. Assemble the reverse way.
1. Drag knob 19. Ball bearing
2. Locking screw M3x5 20. One way clutch ass'y
3. Drag knob nut 21. Carbon plate
4. O-ring 22. Bearing holder
5. Nut washer 23. Cup spring
6. Click bush 24. Draw bar
7. Click pin 25. Spool
8. Click spring 26. Spool cap o-ring
9. Stop pin 27. Spool cap
10. - 28. Handle rivet, balance screw
11. Housing 29. Handle rivet
12. Foot 30. Handle knob washer
13. Foot screw 31. Handle knob
14. - 32. Handle knob screw
15. - 33. Balance
16. Seal ring 34. Balance o-ring
17. Ball bearing
18. Steel plate
12
5
4
3
1
9
8
7
6
2
For more info on Loop fly tackle and accessories: www.looptackle.se
21
17
16
13
20
18
11
Adjust the effect of the brake:
The drag knob nut (3) allows you to adjust
the brake, in order to obtain the lowest brake
effect of preference. We recommend free
spool in both directions.
1. Turn the adjustment screw (3) until
the lowest preferred brake effect has been
obtained.
2. Fasten the drag nob to the ajdustment
screw and turn the handle counter clockwise
so that the heel on the inside of the drag nob
(36) will settle to the left of the stop pin (9).
Tighten the screws on the lock with the Allen
wrench.
24
23
22
Maintenance of the reel:
• This reel is contructed so that maintenance is kept to a minimum. However, be sure to check
on the level of grease on the O-ring (26) inside the spool cap (27), after using the reel for
some time. We recommend Molykote 111C grease or similar.
19
• Put grease on locking screws #2 and the threads on drag knob #1 before use in saltwater.
• Rinse reel after use in saltwater. Do not remove the spool, water may penetrate the drag
system.
• After fishing or when stored, make sure to release the pressure on the drag system.
Caution! Do not touch any moving parts of the reel when a fish is running.
3
36
9
34
33
28
25
27
26
31
30
29
28
32
